Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU361NSSGL

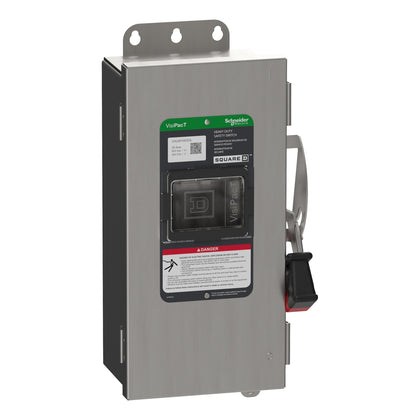

VHU361NSSGL is a Square D heavy duty non-fusible safety switch designed for reliable power distribution and disconnect applications.VHU361NSSGL features a 30 ampere current rating and supports voltages up to 600 VAC/VDC. It is a 3-pole switch with a surface mounting type and a durable 304 stainless steel enclosure rated NEMA 4X for indoor/outdoor use. The switch includes lug-type terminals and is UL listed for safety compliance.
- Amperage: 30 A
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Enclosure Material: 304 Stainless Steel
- NEMA Rating: 4X
- Terminal Type: Lug
- Series/Frame: F
- Fusibility: Non-Fusible
- Duty Rating: Heavy Duty
- Certifications: UL Listed
Specifications
- Part Number: VHU361NSSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589445
- GTIN : 03606485894454
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.2 lb
- Certification : UL listed file E3028
