Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU361NDSGL

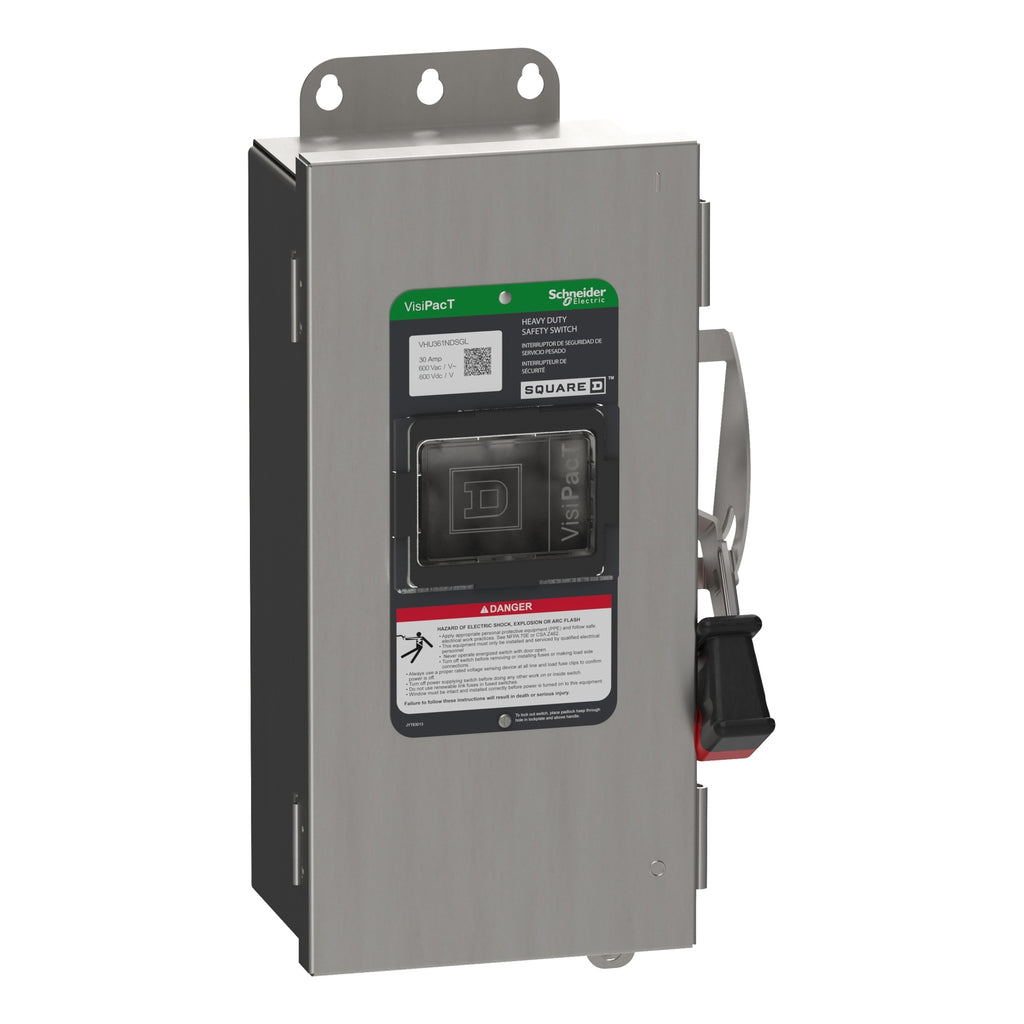

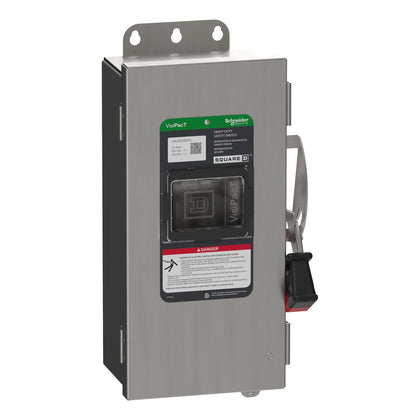

VHU361NDSGL is a Square D heavy duty non-fusible safety switch rated for 30 amps and 600 volts AC/DC with 3 poles and surface mounting.VHU361NDSGL features a 3-pole, 3-wire configuration designed for heavy duty applications with a NEMA 4X enclosure made of 304 stainless steel, suitable for indoor and outdoor use. It includes lug-type terminals and a viewing window for easy status inspection. This switch supports both AC and DC voltages up to 600V and is UL listed.
- Amperage: 30 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Enclosure Rating: NEMA 4X
- Material: 304 Stainless Steel
- Terminal Connection: Lugs
- Type: Heavy Duty Non-Fusible Disconnect
- Phase: 3
- Number of Wires: 3
- Contact Configuration: 3PST (3 Pole Single Throw)
- Certifications: UL Listed
Specifications
- Part Number: VHU361NDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589444
- GTIN : 03606485894447
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.2 lb
- Certification : UL listed file E3026
