Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU361NAWKGL

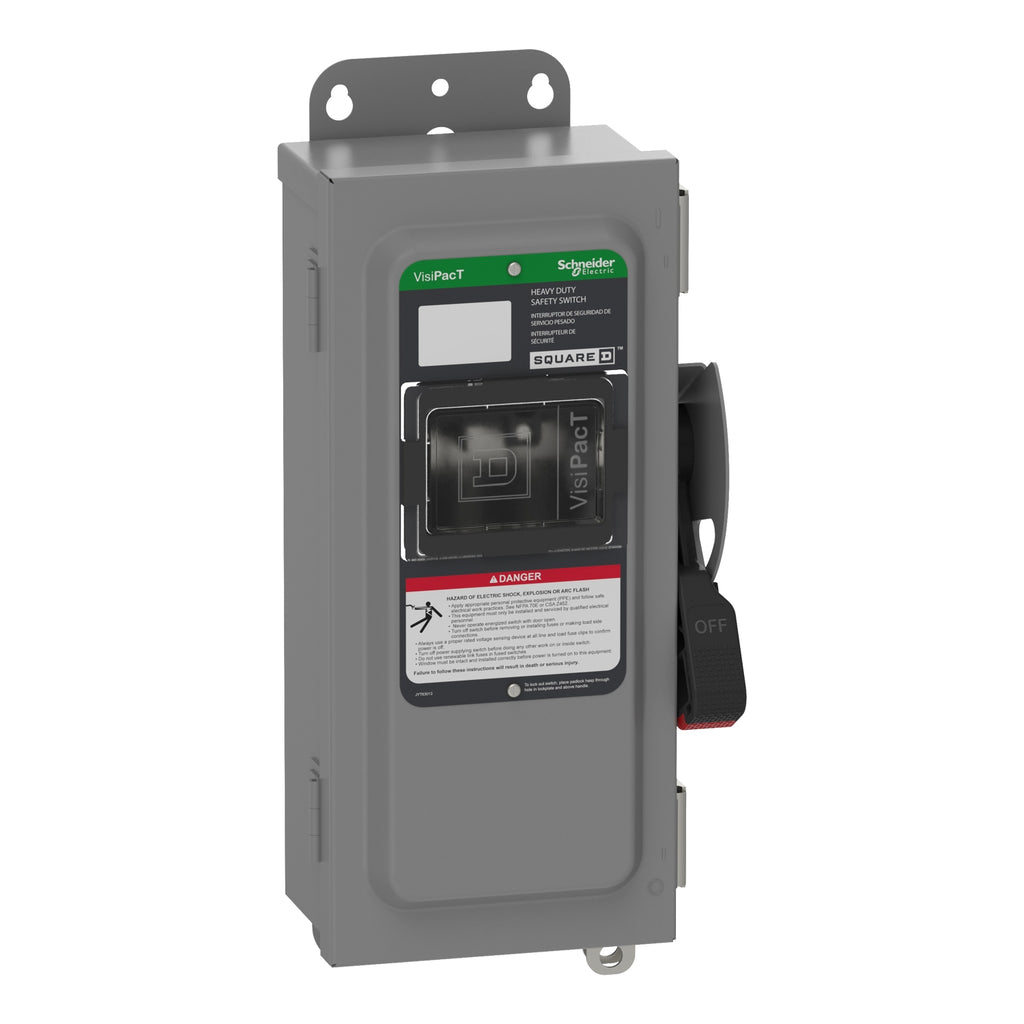

VHU361NAWKGL is a Square D heavy duty non-fusible safety switch designed for reliable power distribution and safety applications.This 3-pole switch is rated for 30 amps and 600 volts AC/DC, featuring a NEMA 12 galvanized steel enclosure with a viewing window for easy inspection. It supports surface mounting and uses lug terminals for secure wiring connections. The switch is suitable for single and three-phase systems and includes ground lugs for enhanced safety.
- Amperage Rating: 30 A
- Voltage Rating: 600 V AC/DC
- Number of Poles: 3
- Enclosure Type: NEMA 12 Galvannealed Steel
- Mounting Type: Surface Mount
- Terminal Type: Lug
- Non-Fusible Heavy Duty Disconnect
- Viewing Window for Status Inspection
- Supports Single and Three Phase
- Includes Ground Lugs
- Dimensions: 5.25 in H x 6.48 in W x 5.242 in D
- Manufacturer: Square D by Schneider Electric
Specifications
- Part Number: VHU361NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589443
- GTIN : 03606485894430
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.48 in (164.59 mm) x 5.242 in (133.147 mm) (Height x Width x Depth)
- Weight : 11.001 lb
- Certification : UL listed file E3025
