VHU361N - Square D Heavy Duty Non-Fusible Disconnect Safety Switch 600V 30A 3 Pole NEMA 1

VHU361N

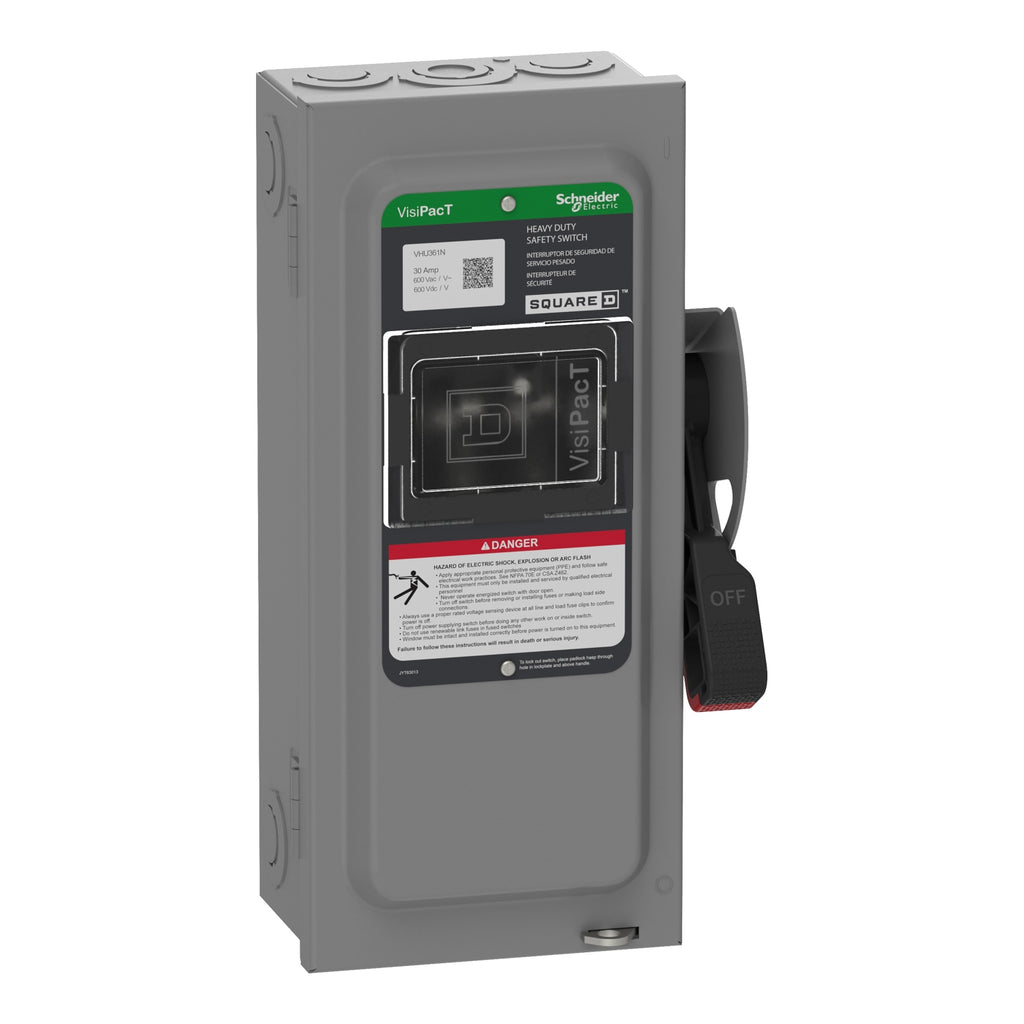

VHU361N is a Square D Heavy Duty Non-Fusible Disconnect Safety Switch designed for reliable circuit isolation in demanding applications. This switch features a 600 VAC/VDC rating, 30 A current capacity, and 3 poles for versatile use in both single and three-phase systems. The NEMA 1 enclosure provides indoor protection, and the surface mounting design allows for easy installation. The switch includes a neutral and a viewing window for added safety and convenience. Engineered for durability, the VHU361N is constructed with steel for long-lasting performance. It supports a wide range of horsepower ratings and is suitable for heavy-duty industrial and commercial environments. The single throw contact form and lug terminal type ensure secure connections and easy wiring.

• Part Number: VHU361N
• Manufacturer: Square D
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC, 600 VDC
• Number of Poles: 3
• Mounting Type: Surface
• Enclosure Type: NEMA 1
• Interrupt Rating: Not specified
• Series/Frame: Heavy Duty Non-Fusible
• Neutral Included: Yes
• Viewing Window: Yes
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VHU361N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600 AC/DC
• Amperage : 30
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 60648589441
• GTIN : 03606485894416
• Country of Origin : United States
• Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
• Weight : 8.8 lb
• Certification : EU RoHS, UL listed file E2875
