Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU361DSGL

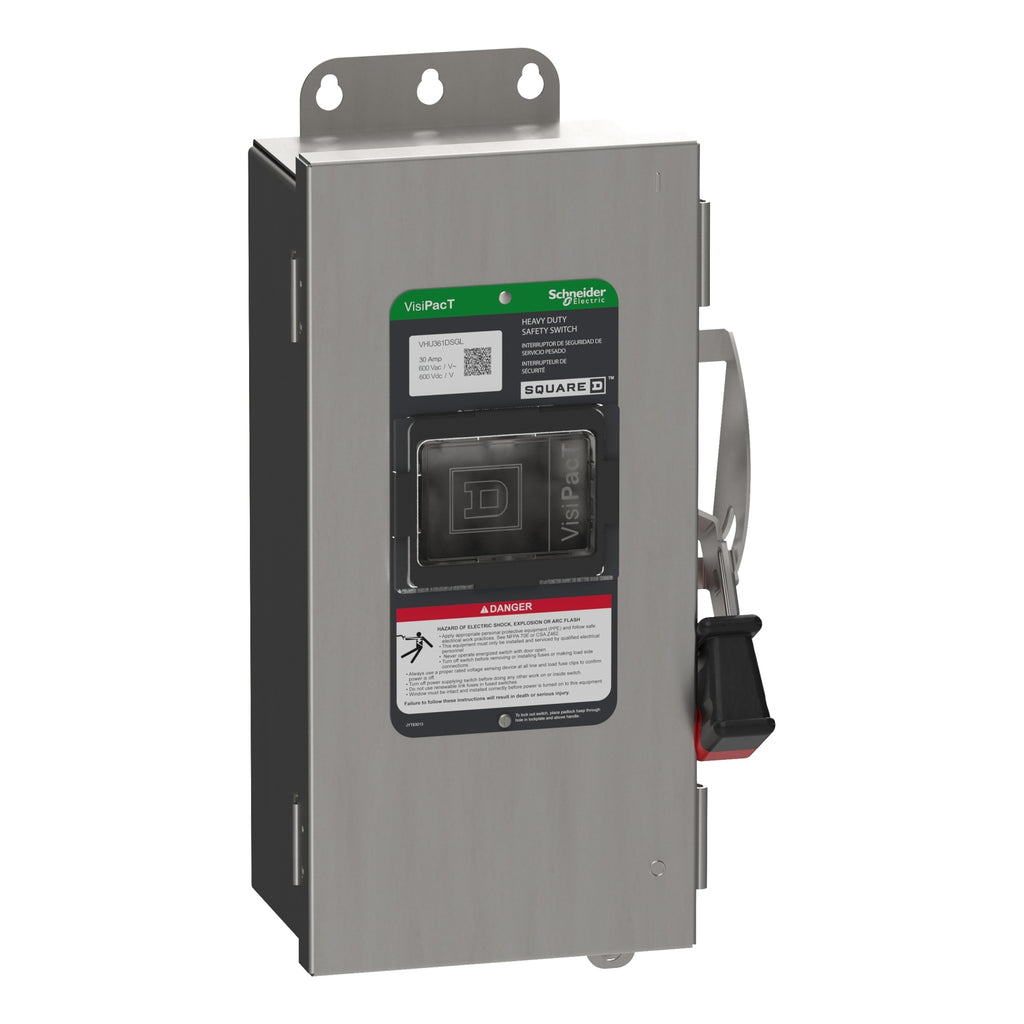

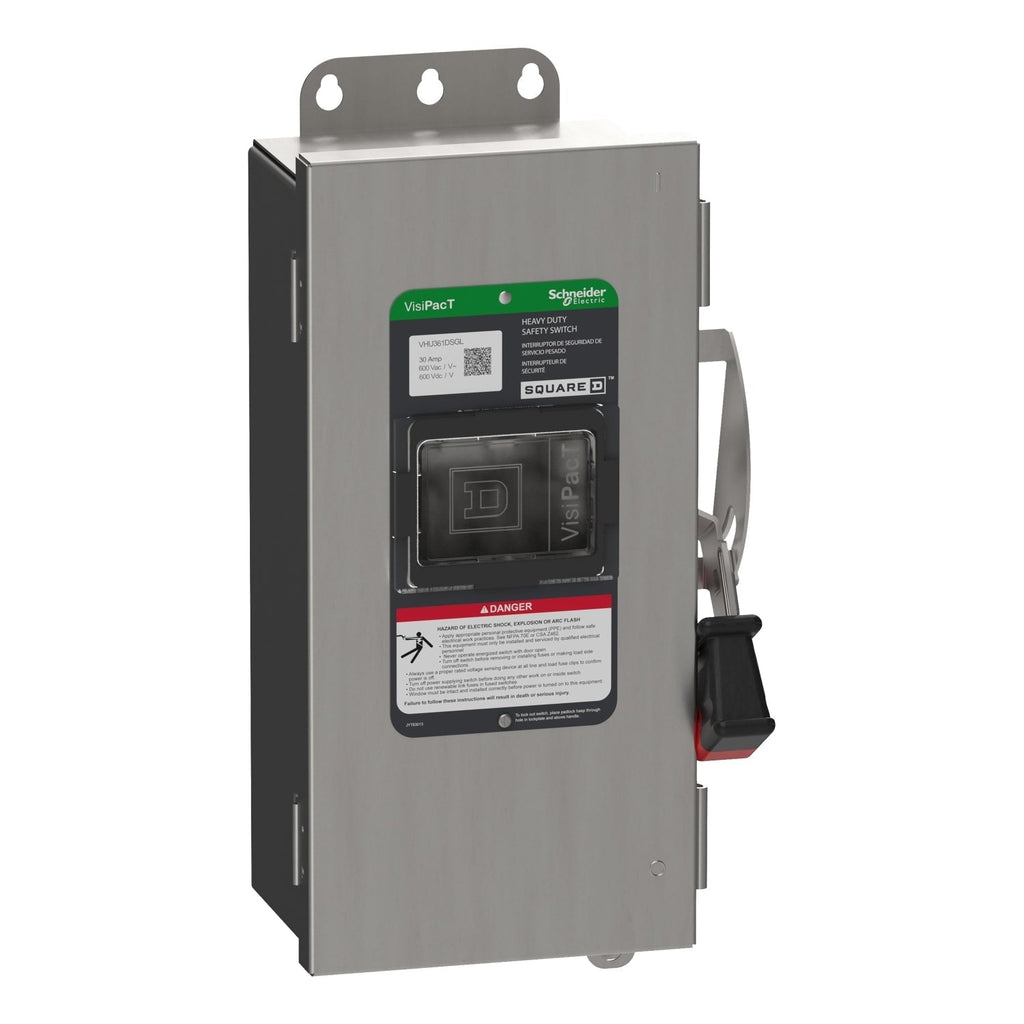

VHU361DSGL is a Square D heavy duty safety switch rated for 30 Amps and 600 Volts with 3 poles and a NEMA 4X enclosure.
This non-fusible safety switch features a viewing window, quick-make/quick-break mechanism, ground lugs, and is designed for surface mounting. It is suitable for heavy duty industrial applications requiring reliable disconnect and safety isolation with a robust 304 stainless steel Type 4X enclosure for harsh environments.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface Mount
- Interrupt Rating: Heavy Duty
- Enclosure: NEMA 4X, 304 Stainless Steel
- Type: Non-Fusible (Unfused)
- Viewing Window: Yes
- Trip Unit: None (Non-Fusible)
- Ground Lugs: Included
- Manufacturer: Square D (Schneider Electric)
- Series/Frame: VHU Series
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: VHU361DSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Type : VHU
- Voltage : 600 AC/DC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589453
- GTIN : 03606485894539
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.389 lb
- Certification : EU RoHS, UL listed file E2875
