Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU3612AWKGL

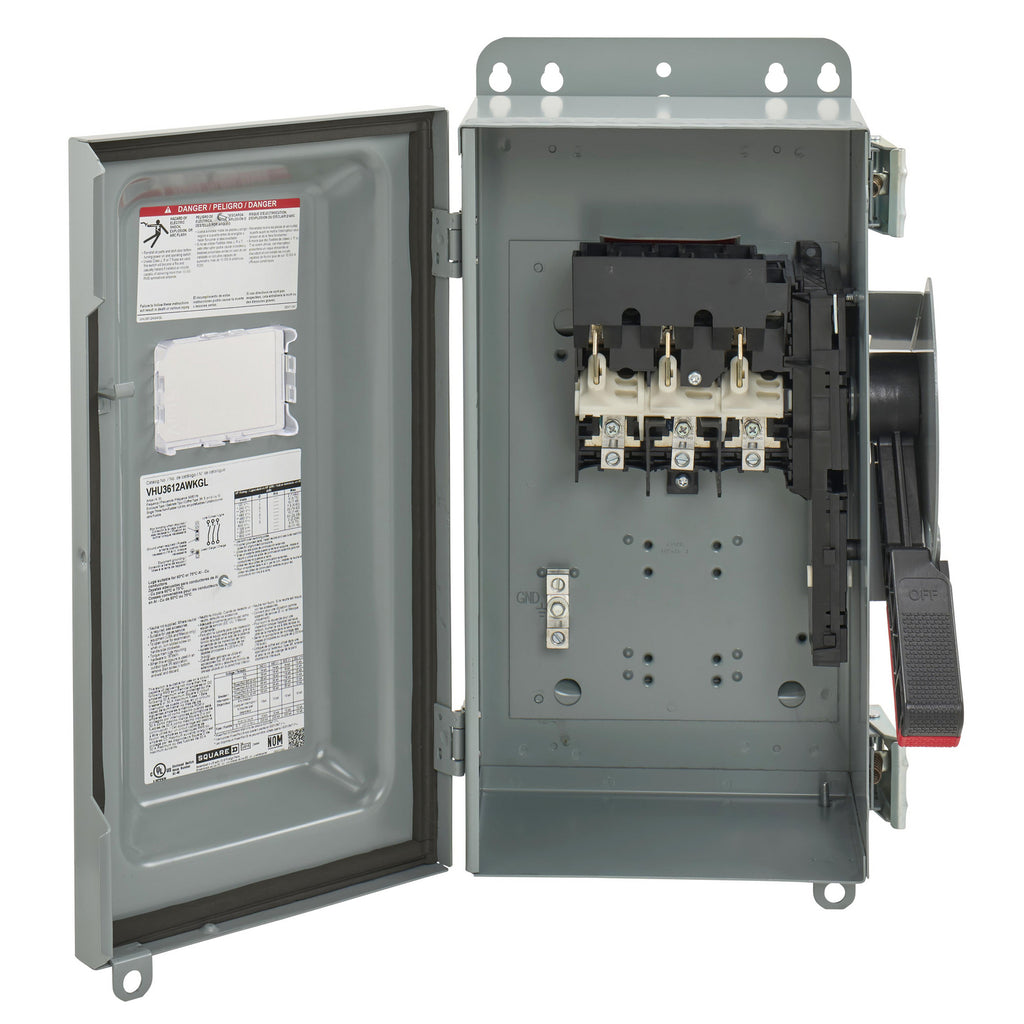

VHU3612AWKGL is a Square D heavy duty safety switch designed for industrial and commercial electrical systems. This 3-pole, 30 amp, 600 volt switch features a non-fusible design with a NEMA 12 enclosure rating and a viewing window for easy status inspection. It provides reliable disconnect functionality with ground lugs and is suitable for heavy duty applications requiring robust safety switching.
- Amperage: 30 Amps
- Voltage: 600 Volts AC/DC
- Poles: 3
- Mounting Type: Surface Mount
- Interrupt Rating: Heavy Duty
- Enclosure: NEMA 12
- Switch Style: Non-Fusible
- Viewing Window: Yes
- Ground Lugs: Included
- Series/Frame: VH Disconnect
- Certifications: UL Listed
Specifications
- Part Number: VHU3612AWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589455
- GTIN : 03606485894553
- Country of Origin : United States
- Dimensions : 16.5 in (419.1 mm) x 10.5 in (266.7 mm) x 7 in (177.8 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : UL listed file E3020
