Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH364SSGL

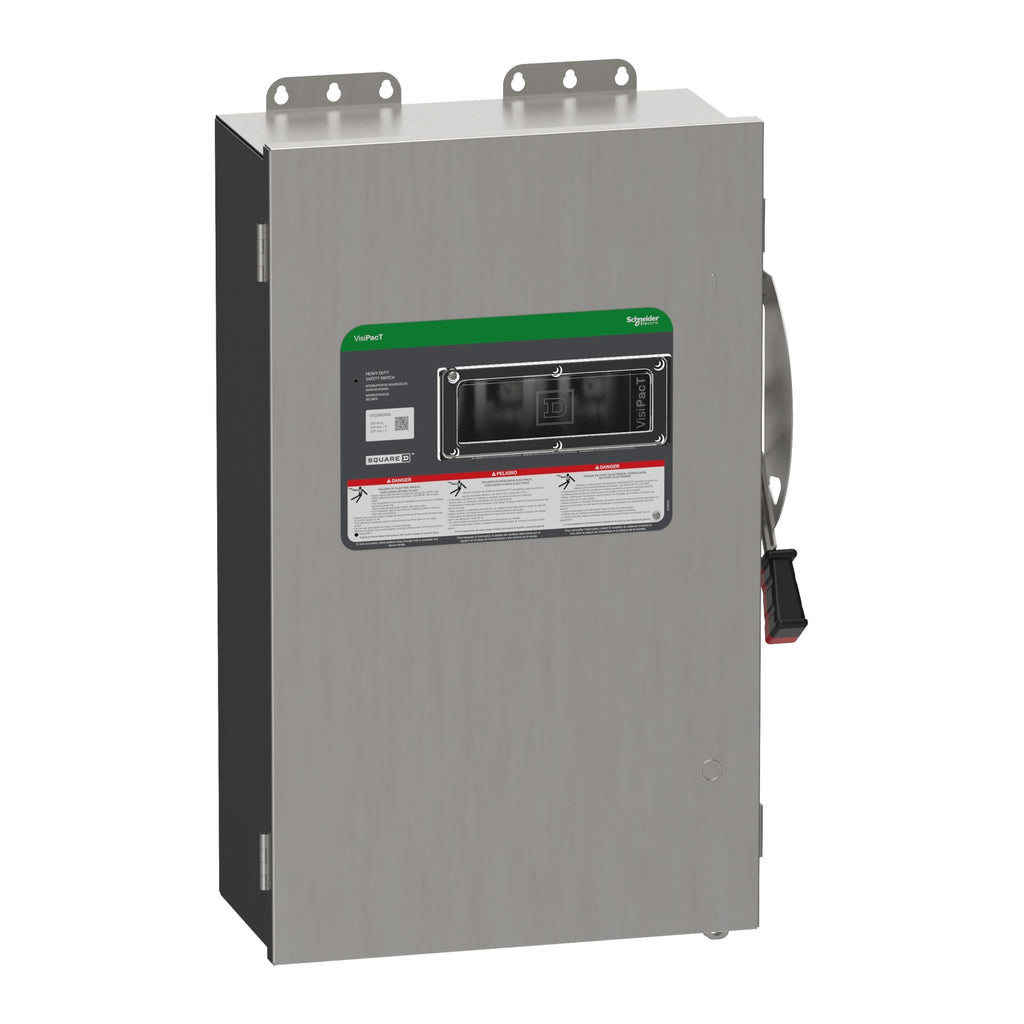

VH364SSGL is a Square D heavy duty fusible safety switch rated for 200 amps and 600 volts AC/DC with a 3-pole configuration and NEMA 4X enclosure.This safety switch features a robust 3-blade fusible design suitable for industrial applications requiring reliable disconnect and protection. It supports fuse classes H, K, R, and J, includes a dual cover interlock for enhanced safety, and is UL listed for quality assurance. The NEMA 4X enclosure provides corrosion resistance and is ideal for harsh environments. Ground lugs are included for proper grounding.
- Amperage: 200 A
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: Suitable for heavy duty applications
- Fuse Classes: H, K, R, J
- Enclosure: NEMA 4X stainless steel
- Certifications: UL Listed
- Dual cover interlock for safety
- Ground lugs included
- Manufacturer: Square D (Schneider Electric)
Specifications
- Part Number: VH364SSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589440
- GTIN : 03606485894409
- Country of Origin : United States
- Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
- Weight : 57.1 lb
- Certification : UL listed file E3018
