Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH364NSSGL

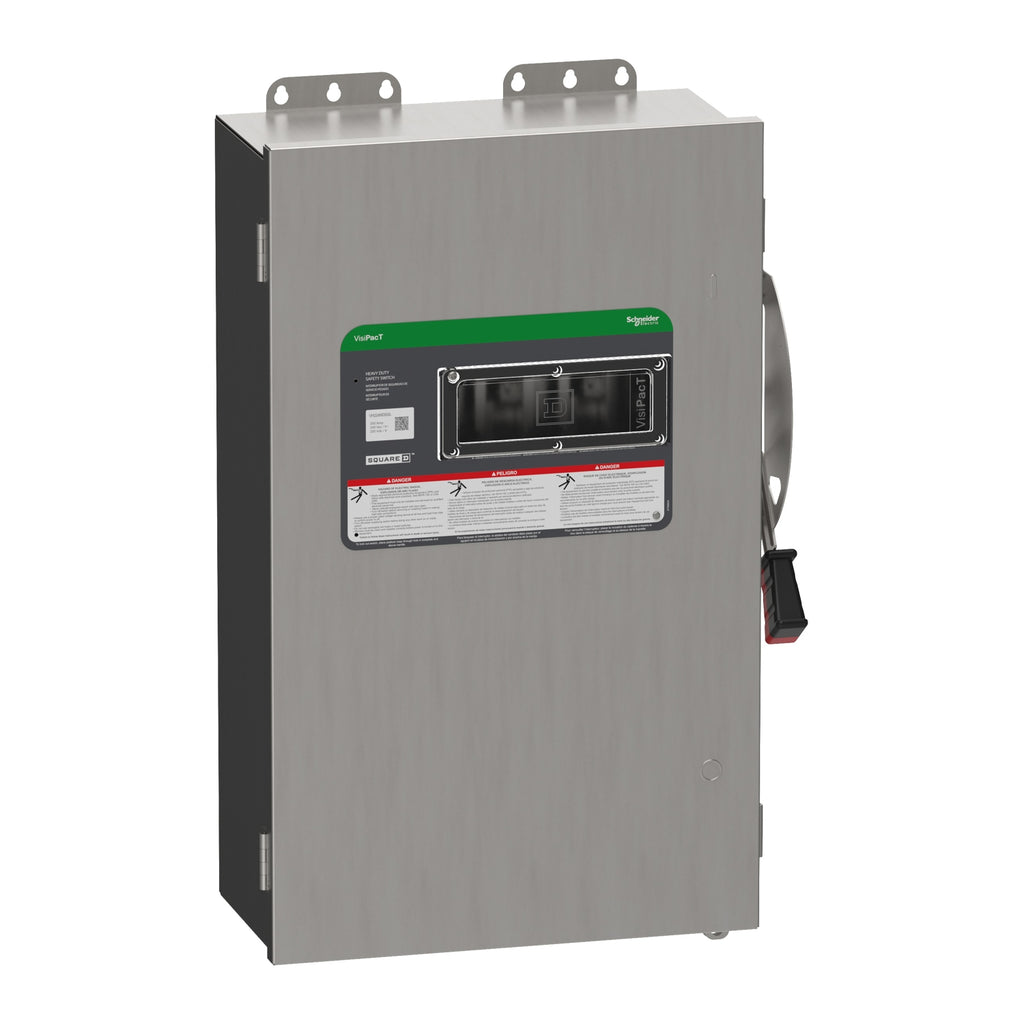

VH364NSSGL is a Square D heavy duty fused safety switch rated for 200 amps and 600 volts AC/DC with a 3-pole configuration and stainless steel Type 4X enclosure.This VH series safety switch features a fusible design with a viewing window for quick visual verification of switch position. It is constructed with a 316 stainless steel enclosure rated NEMA 4X for corrosion resistance and outdoor use. The switch supports 3-phase power and includes neutral and ground lugs. It has a short circuit rating dependent on fuse selection, up to 200kA, and meets heavy duty mechanical endurance standards exceeding NEMA requirements.
- Key Specifications
- Amperage: 200A
- Voltage: 600 VAC/DC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: Up to 200kA (fuse dependent)
- Series/Frame: VH
- Trip Unit: Fusible
- Enclosure: 316 Stainless Steel, NEMA 4X
- Viewing Window: Yes (VisiPact)
- Neutral Installed: Yes
- Ground Lugs: Yes
- Certifications: ARRA Compliant
Specifications
- Part Number: VH364NSSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 200
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589429
- GTIN : 03606485894294
- Country of Origin : United States
- Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
- Weight : 57.1 lb
- Certification : EU RoHS, UL listed file E2875
