Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH364NR

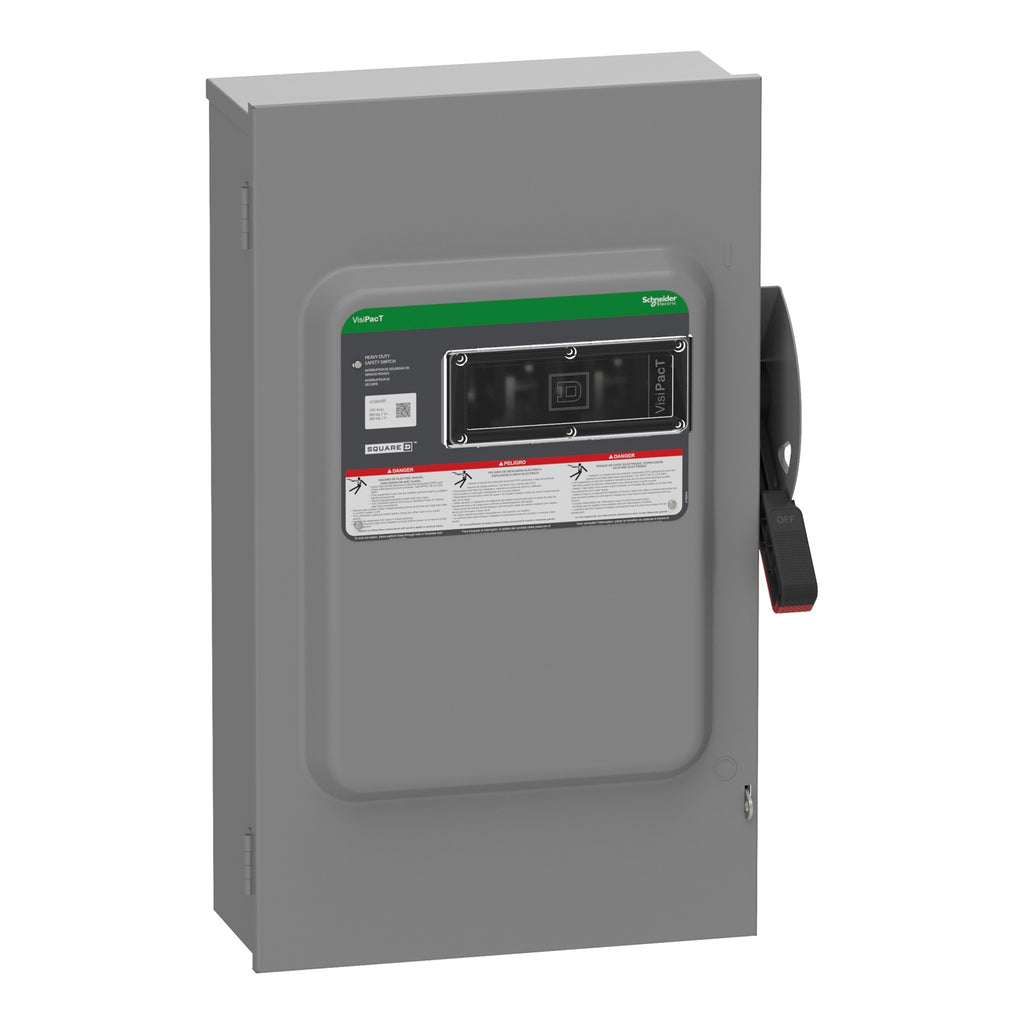

VH364NR is a Square D heavy duty fusible safety switch rated for 200 amps and 600 volts with 3 poles and NEMA 3R enclosure.VH364NR features a surface mounting type, dual cover interlock, and is suitable for both 600VAC and 600VDC applications. It provides reliable circuit protection with a fusible disconnect design and a robust frame for industrial use.
- Key Specifications
- Amperage: 200 A
- Voltage: 600 VAC/VDC
- Number of Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Fusible disconnect (heavy duty)
- Enclosure: NEMA 3R
- Series/Frame: Heavy Duty Safety Switch
- Features: Dual cover interlock
- Certifications: Meets industry safety standards
Specifications
- Part Number: VH364NR
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 200
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589426
- GTIN : 03606485894263
- Country of Origin : United States
- Dimensions : 28.94 in (735.08 mm) x 17.016 in (432.206 mm) x 8.506 in (216.052 mm) (Height x Width x Depth)
- Weight : 47.999 lb
- Certification : EU RoHS, UL listed file E2875
