Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH364N

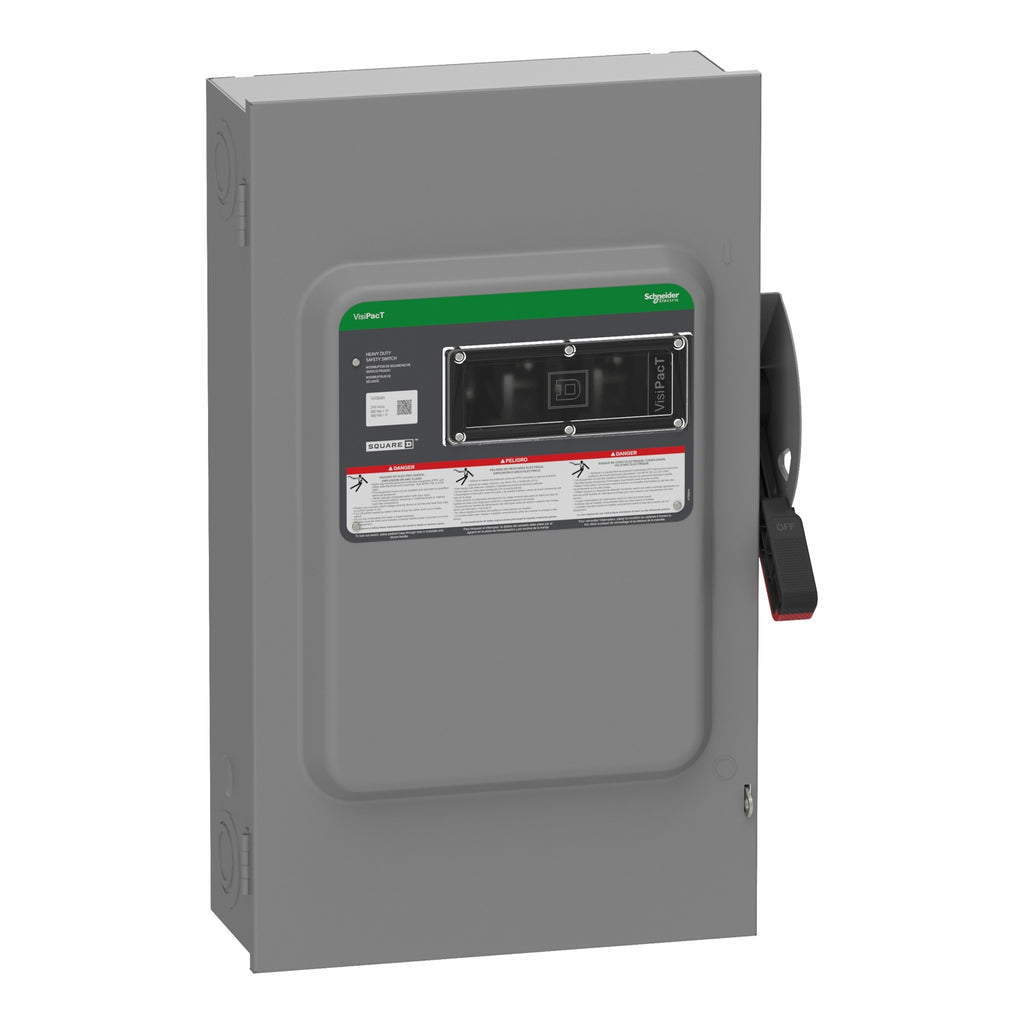

VH364N is a Square D heavy duty fused safety switch rated for 200 amps and 600 volts AC/DC with 3 poles and neutral installed.
This safety switch features a viewing window, dual cover interlock, and is designed for heavy duty applications with NEMA 1 enclosure. It supports both AC and DC voltages up to 600V and includes fusible protection for enhanced safety and reliability.
- Key Specifications
- Amperage: 200 Amps
- Voltage: 600 VAC/VDC
- Poles: 3 Pole with Neutral Installed
- Mounting Type: Surface Mount
- Interrupt Rating: Fusible
- Enclosure Type: NEMA 1
- Viewing Window: Yes
- Series/Frame: Heavy Duty
- Dual Cover Interlock: Yes
- Certifications: UL Listed
- Part Number: VH364N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 200
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- UPC : 060648589425
- GTIN : 03606485894256
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 16.61 in (421.89 mm) x 8.6 in (218.4 mm) (Height x Width x Depth)
- Weight : 54.5 lb
- Certification : EU RoHS, UL listed file E2875
