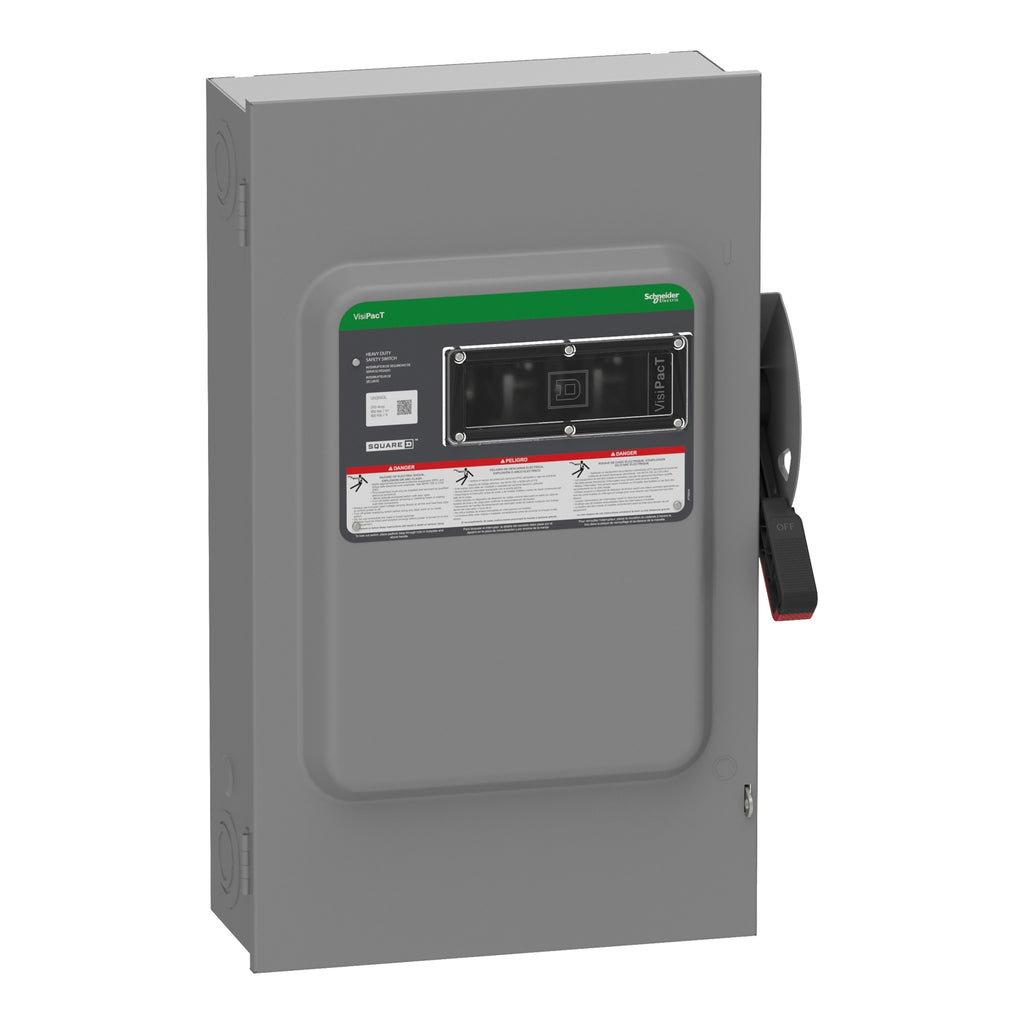

VH364GL - Square D Heavy Duty Fused Safety Switch 200A 600V 3 Pole NEMA 1 Viewing Window Ground Lugs

VH364GL

VH364GL is a Square D heavy duty fused safety switch rated for 200 amps and 600 volts AC/DC with a 3-pole configuration and NEMA 1 enclosure.This safety switch features a viewing window for visual confirmation of switch position without opening the door, factory-installed ground lugs, and is suitable for surface mounting. It accepts Class H, K, or R fuses and can be field modified for J fuses. The switch is rated for 600 VAC and 600 VDC operation with a short circuit rating up to 10 kA depending on fuse selection. It complies with UL98 and NEMA KS1 standards and is suitable for service entrance applications when equipped with the appropriate neutral or grounding kits.

Key Specifications
• Amperage: 200A
• Voltage: 600 VAC / 600 VDC
• Poles: 3
• Mounting Type: Surface mount
• Interrupt Rating: Up to 10 kA (with Class H or K fuses)
• Enclosure Type: NEMA 1 steel
• Fuse Types: H, K, R (field modifiable for J)
• Viewing Window: Factory installed
• Grounding: Factory installed ground lugs
• Certifications: UL Listed (UL98), NEMA KS1
• Wire Range: AWG 6 to 250 kcmil copper/aluminum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: VH364GL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1



Product Data

• UPC : 060648589436
• GTIN : 03606485894362
• Country of Origin : United States
• Dimensions : 28.93 in (734.82 mm) x 16.61 in (421.89 mm) x 8.6 in (218.4 mm) (Height x Width x Depth)
• Weight : 45.9 lb
• Certification : UL listed file E3010
