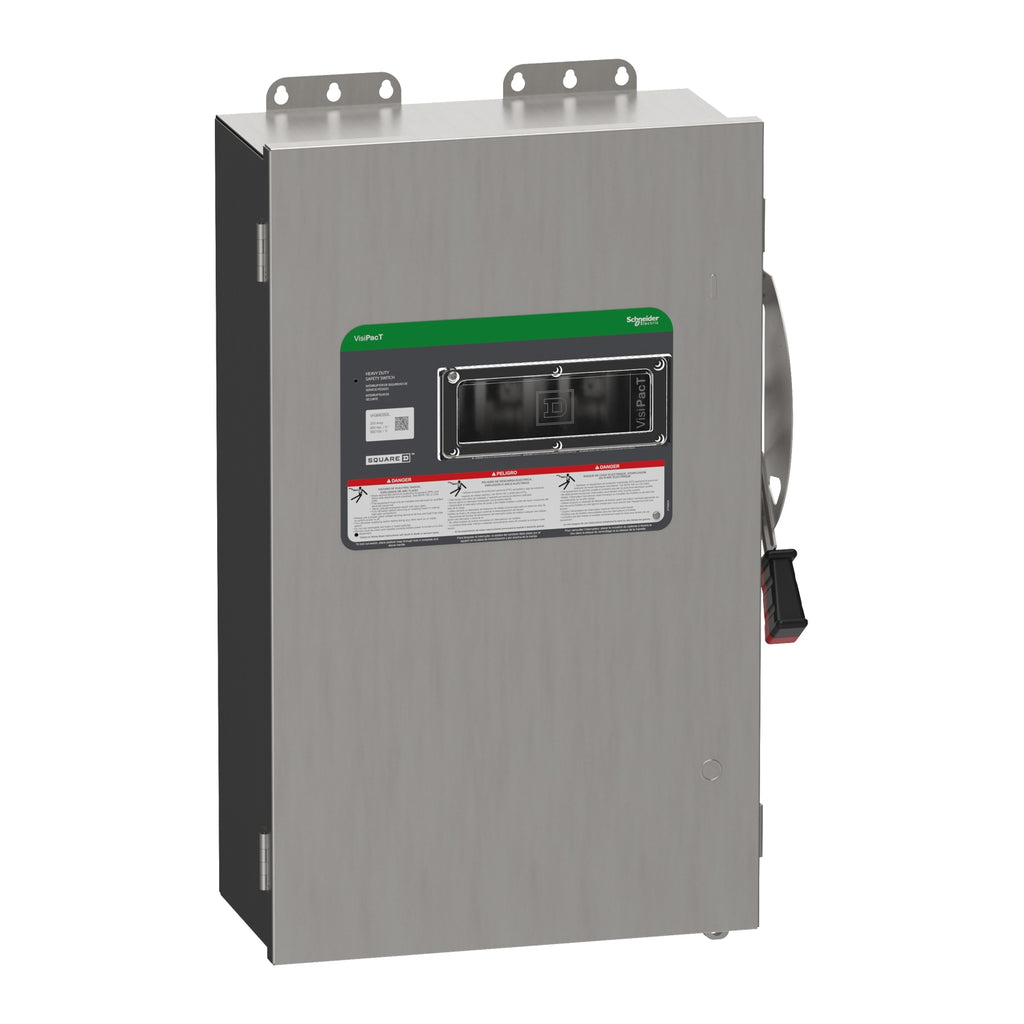

VH364DSGL - Square D 200A 600V 3P Heavy Duty Fused Safety Switch NEMA 4X Stainless Steel w/ Viewing Window

VH364DSGL

VH364DSGL is a heavy duty fused safety switch designed for demanding commercial and industrial applications. This 3-pole, 200A, 600V safety switch features a stainless steel NEMA 4X enclosure, factory-installed viewing window, and dual cover interlock for added safety and convenience. Engineered for durability, the VH364DSGL offers quick-make, quick-break operation, color-coded indicator handle, and accepts H, K, R fuse types (field modifiable for J fuses). It is surface mountable and includes factory-installed equipment ground lugs. The switch is tested to UL98 and NEMA KS1 standards, ensuring reliable performance in harsh environments.

• Part Number: VH364DSGL
• Manufacturer: Square D / Schneider Electric
• Amperage: 200A
• Voltage: 600VAC/VDC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 10kA or 200kA (depends on fuse)
• Series/Frame: VisiPacT Heavy Duty
• Enclosure: NEMA 4X Stainless Steel
• Features: Fused, Viewing Window, Dual Cover Interlock
• Wire Range: AWG 6 to 250 kcmil (copper/aluminum)
• Certifications: UL98, NEMA KS1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH364DSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600 AC/DC
• Amperage : 200
• Phase : 3
• Poles : 3
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589439
• GTIN : 03606485894393
• Country of Origin : United States
• Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
• Weight : 57.1 lb
• Certification : EU RoHS, UL listed file E2875
