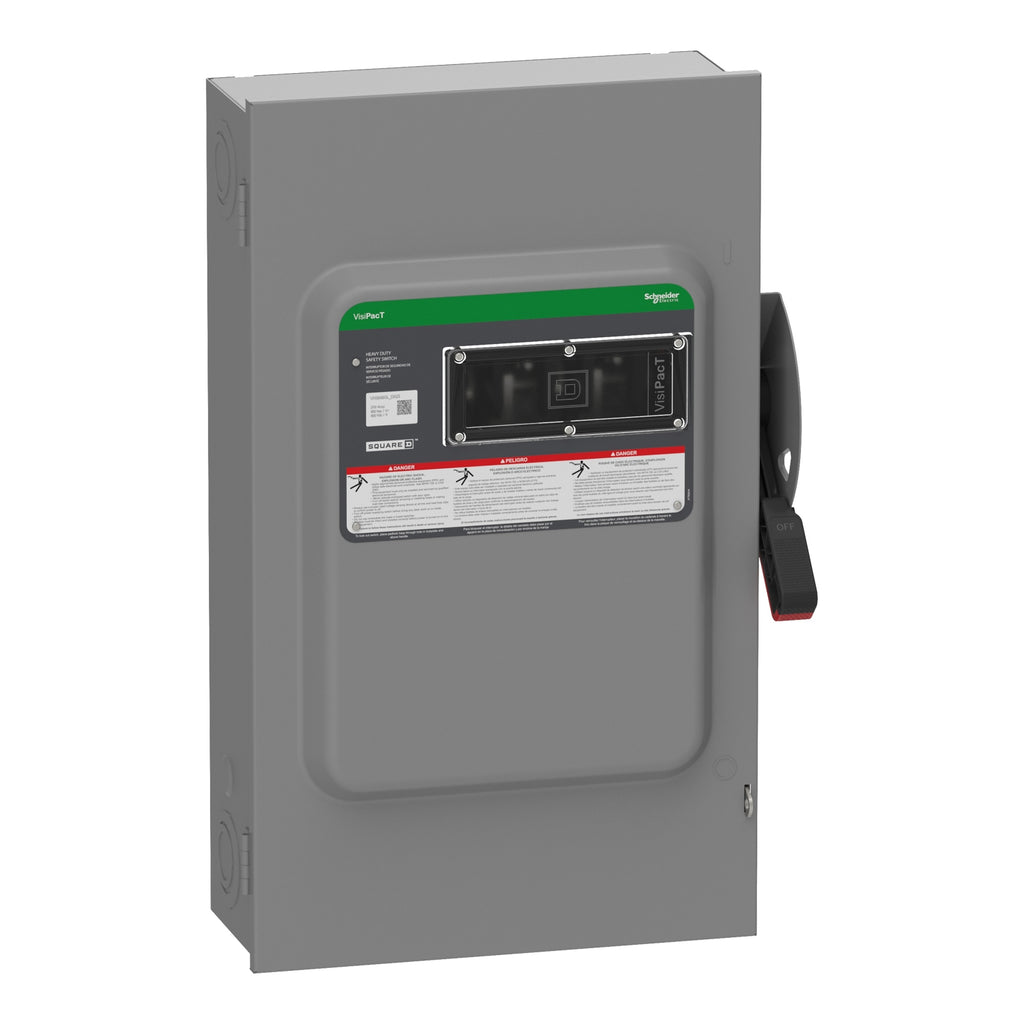

VH364BGL - Square D 200A 600V 3-Pole Heavy Duty Fusible Safety Switch with Viewing Window

VH364BGL

VH364BGL is a heavy duty fusible safety switch by Square D designed for 200 amp, 600 volt applications with a 3-pole configuration and viewing window.

This Square D VH364BGL safety switch features a fusible disconnect design suitable for heavy duty industrial use. It supports 600 VAC and 600 VDC voltages, includes a viewing window for visual confirmation of switch position with the door closed, and is rated NEMA 1 for enclosure protection. The switch is neutral bonded and includes ground lugs, making it suitable for service entrance when equipped with the appropriate neutral assembly or grounding kit.

• Manufacturer: Square D
• Part Number: VH364BGL
• Current Rating: 200 Amps
• Voltage Rating: 600 VAC / 600 VDC
• Poles: 3
• Switch Style: Fusible
• Enclosure Rating: NEMA 1
• Viewing Window for switch position verification
• Neutral bonded with ground lugs
• Heavy duty industrial grade
• Suitable for service entrance with proper accessories

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH364BGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• Fuse Class : J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589430
• GTIN : 03606485894300
• Country of Origin : United States
• Dimensions : 28.93 in (734.82 mm) x 16.61 in (421.89 mm) x 8.6 in (218.4 mm) (Height x Width x Depth)
• Weight : 54.5 lb
• Certification : UL listed file E3007
