Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH364BAWKGL

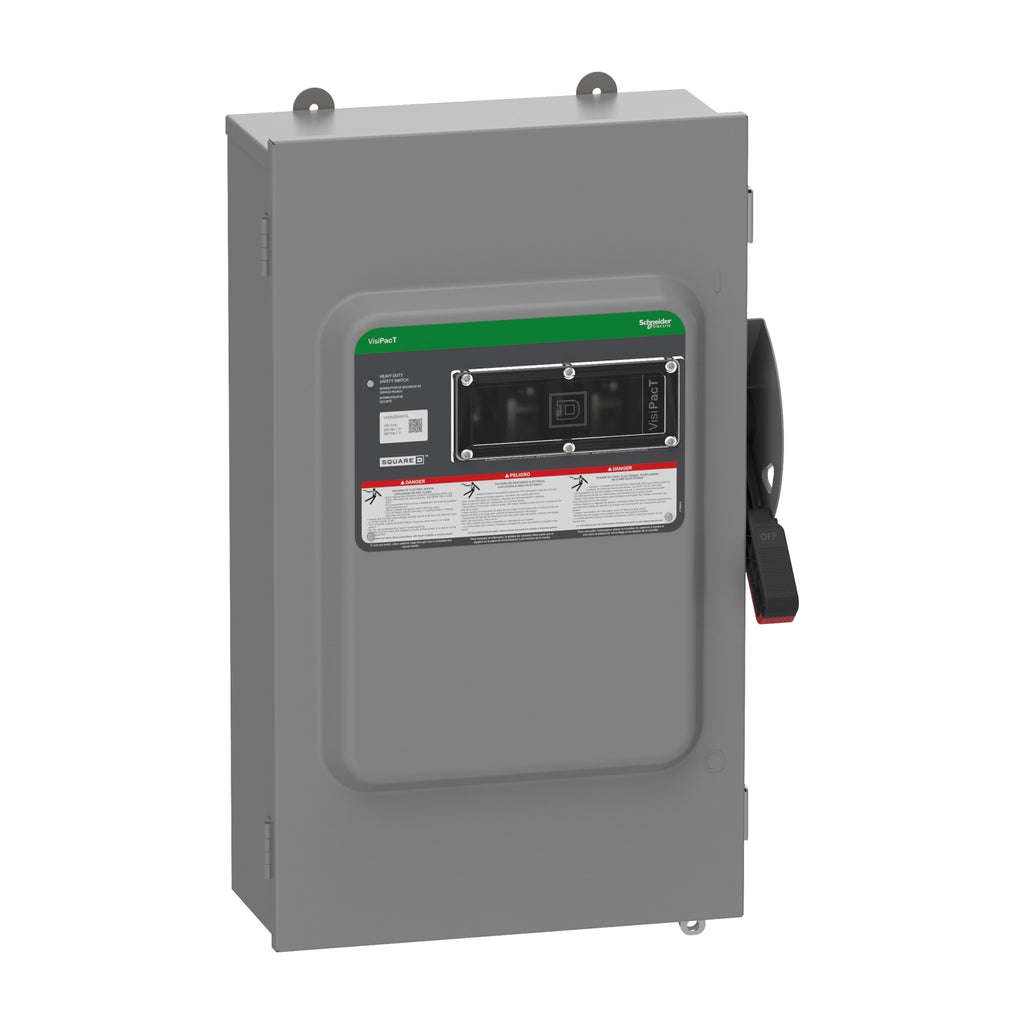

VH364BAWKGL is a Square D 3-pole fusible heavy duty safety switch rated for 200 amps and 600 volts AC/DC with a NEMA 12 enclosure.VH364BAWKGL features a surface mounting type, galvanized steel enclosure, and is designed for heavy-duty indoor applications requiring reliable circuit protection and service entrance use.
- Key Specifications
- Amperage: 200 A
- Voltage: 600 VAC/VDC
- Poles: 3
- Phase: 3
- Mounting Type: Surface
- Enclosure Type: NEMA 12, Galvannealed Steel
- Fusible: Yes
- Interrupt Rating: Heavy Duty
- Terminal Connection: Lugs
- Standards: UL Listed, RoHS Compliant
- Wire Gauge: AWG 6 to 250 kcmil Copper/Aluminum
- Contact Configuration: 3PST (3 Pole Single Throw)
Specifications
- Part Number: VH364BAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589432
- GTIN : 03606485894324
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 17.01 in (432.05 mm) x 9.02 in (229.11 mm) (Height x Width x Depth)
- Weight : 55.1 lb
- Certification : UL listed file E3005
