Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH364AWKGL

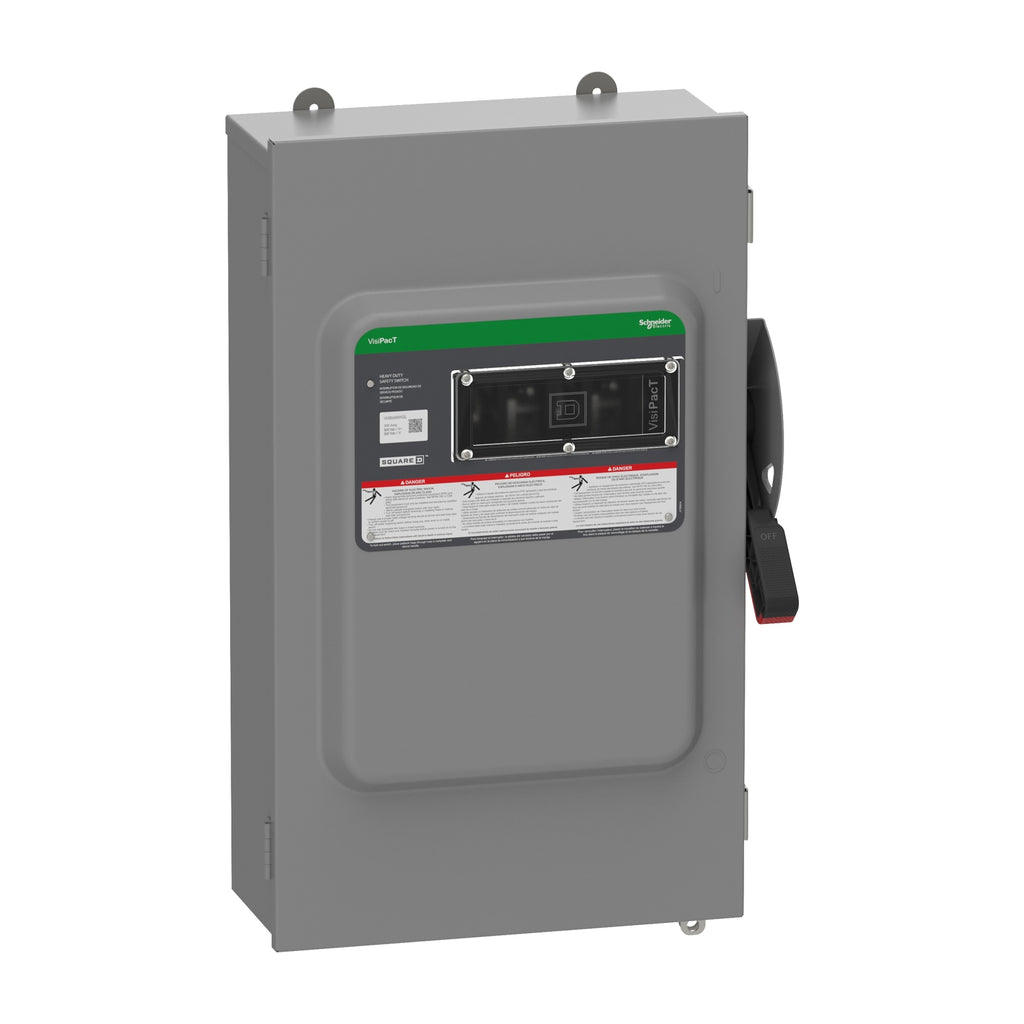

VH364AWKGL is a Square D heavy duty fusible safety switch rated for 200 amps and 600 volts AC/DC with a 3-pole configuration.
This safety switch features a NEMA 12 galvanealed steel enclosure designed for surface mounting. It supports 3-phase power with a 10,000 A short circuit rating and includes lug-type terminals. The switch is equipped with a handle actuator and single throw contact form, suitable for heavy industrial applications requiring reliable disconnect and protection.
- Key Specifications
- Amperage Rating: 200 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 3
- Phase: 3
- Mounting Type: Surface
- Enclosure Type: NEMA 12, Galvannealed Steel
- Interrupt Rating: 10,000 A
- Contact Form: Single Throw
- Terminal Type: Lug
- Frequency: 50 to 60 Hz
- Insulation Type: Class H/J/K/R
- Certifications: UL Listed
- Part Number: VH364AWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600 AC/DC
- Amperage : 200
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- UPC : 060648589438
- GTIN : 03606485894386
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 17.01 in (432.05 mm) x 9.02 in (229.11 mm) (Height x Width x Depth)
- Weight : 55.1 lb
- Certification : EU RoHS, UL listed file E2875
