Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH364

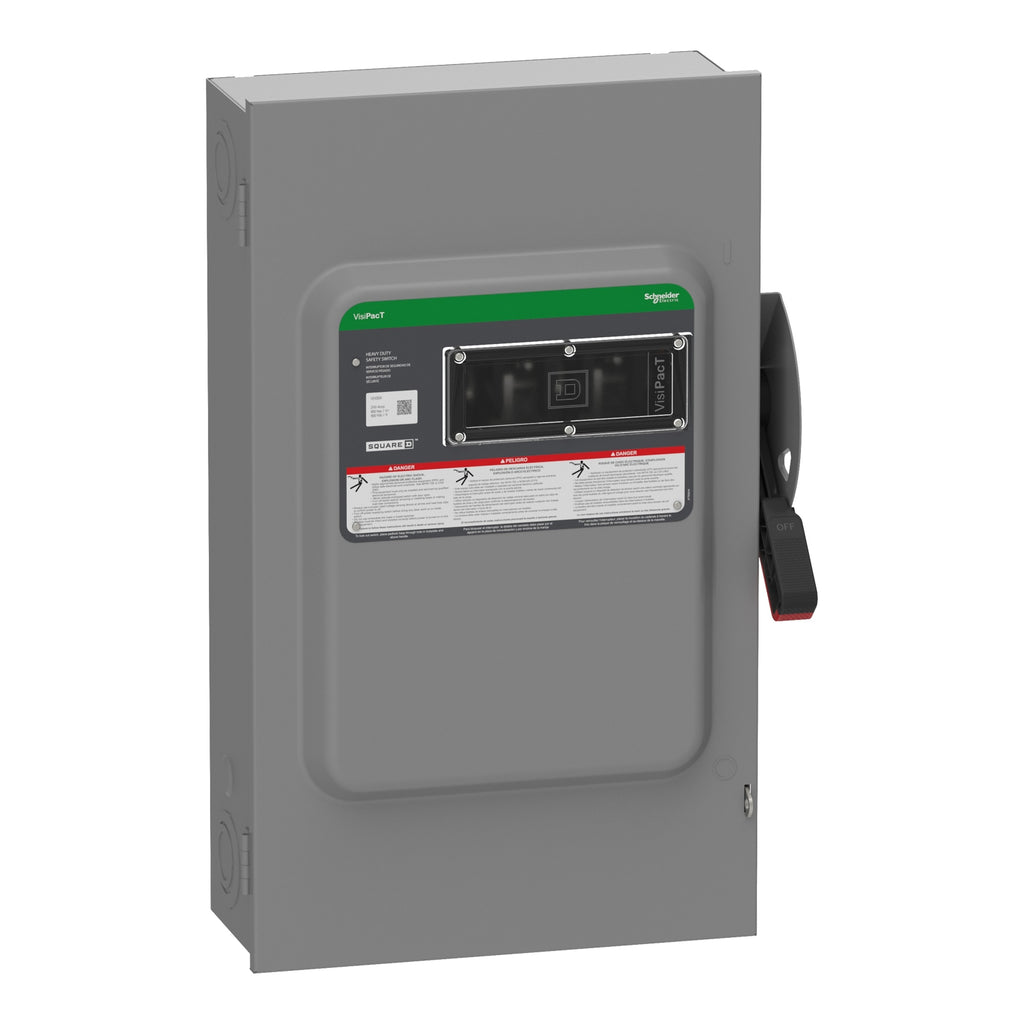

VH364 is a Square D heavy duty fusible safety switch rated for 200 amps and 600 volts with 3 poles and Type 1 enclosure.This safety switch features a quick-make, quick-break operating mechanism, dual cover interlock, and a color-coded indicator handle for enhanced safety and reliability. It is designed for heavy duty applications with a fusible design to protect circuits and equipment. The switch supports both 600 VAC and 600 VDC ratings and includes a viewing window for fuse status inspection.
- Amperage: 200 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: Heavy duty fusible
- Series/Frame: VH Series
- Trip Unit: Fusible
- Enclosure Type: Type 1
- Features: Dual cover interlock, quick-make/quick-break mechanism
- Certifications: UL Listed
- Viewing Window: Yes
Specifications
- Part Number: VH364
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 200
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589434
- GTIN : 03606485894348
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 16.61 in (421.89 mm) x 8.6 in (218.4 mm) (Height x Width x Depth)
- Weight : 45.97 lb
- Certification : EU RoHS, UL listed file E2875
