Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH363RBGL

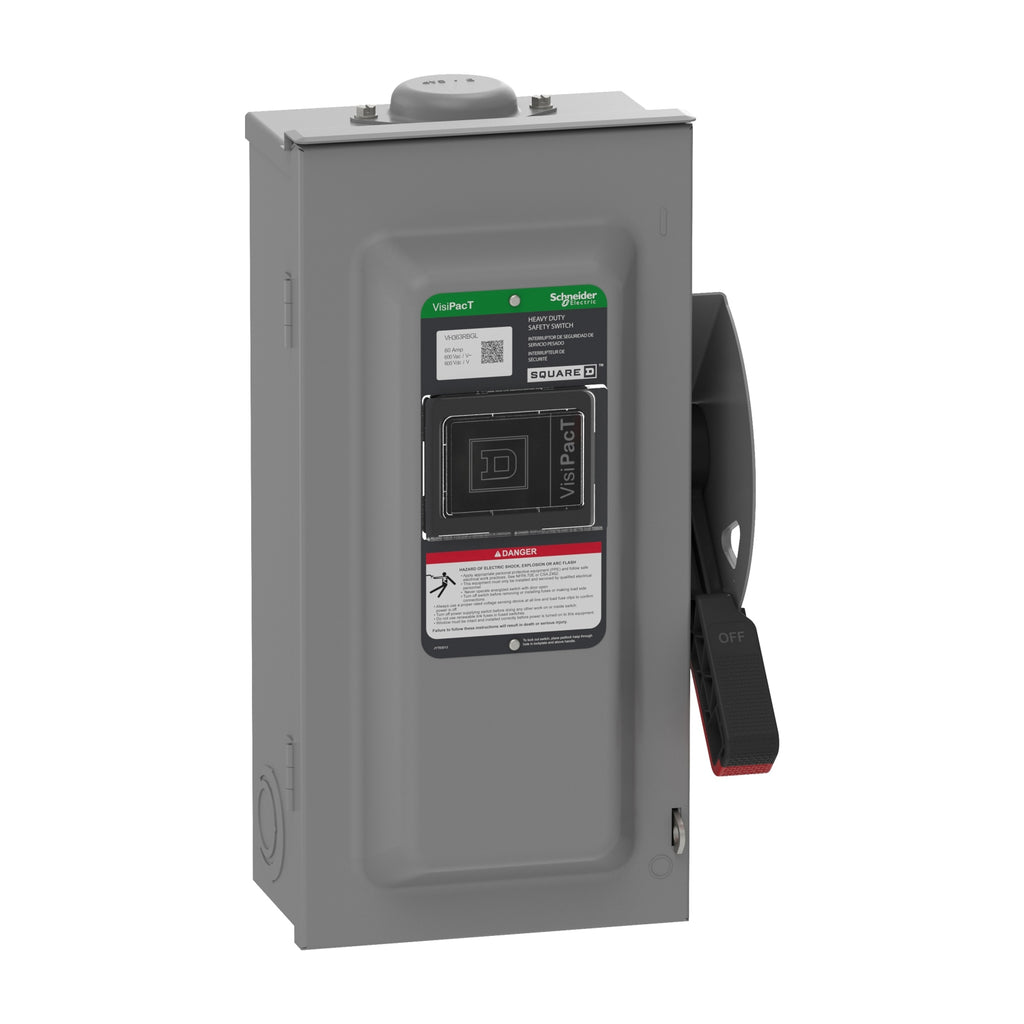

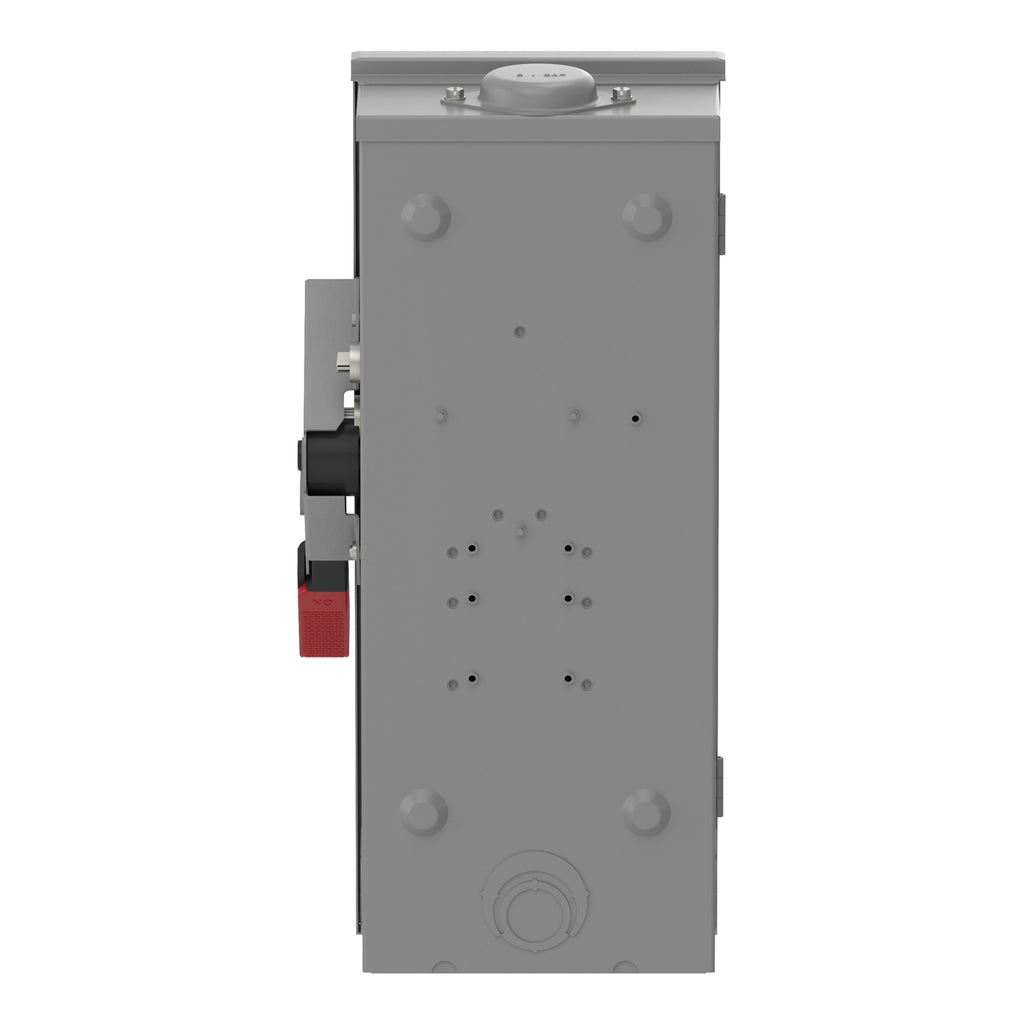

VH363RBGL is a Square D heavy duty fusible safety switch designed for reliable power distribution and protection.This switch features a 100 ampere rating, 600 volts AC/DC voltage capacity, and a 3-pole configuration. It is built with a NEMA 3R rated enclosure suitable for outdoor or indoor use, providing corrosion resistance and durability. The fusible design includes a viewing window for fuse status inspection and ground lugs for safe grounding. The switch is single throw and constructed with galvannealed steel for enhanced strength and longevity.
- Amperage: 100 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Switch Style: Fusible
- Mounting Type: Surface Mount
- Interrupt Rating: Heavy Duty
- Enclosure Rating: NEMA 3R
- Material: Galvannealed Steel
- Viewing Window: Yes
- Ground Lugs: Included
- Country of Origin: United States
- Series/Frame: VH Series
Specifications
- Part Number: VH363RBGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589421
- GTIN : 03606485894218
- Country of Origin : United States
- Dimensions : 22.103 in (561.416 mm) x 9.08 in (230.63 mm) x 7.019 in (178.283 mm) (Height x Width x Depth)
- Weight : 19.8 lb
- Certification : UL listed file E3001
