VH363RB - Square D 100A 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 3R

VH363RB

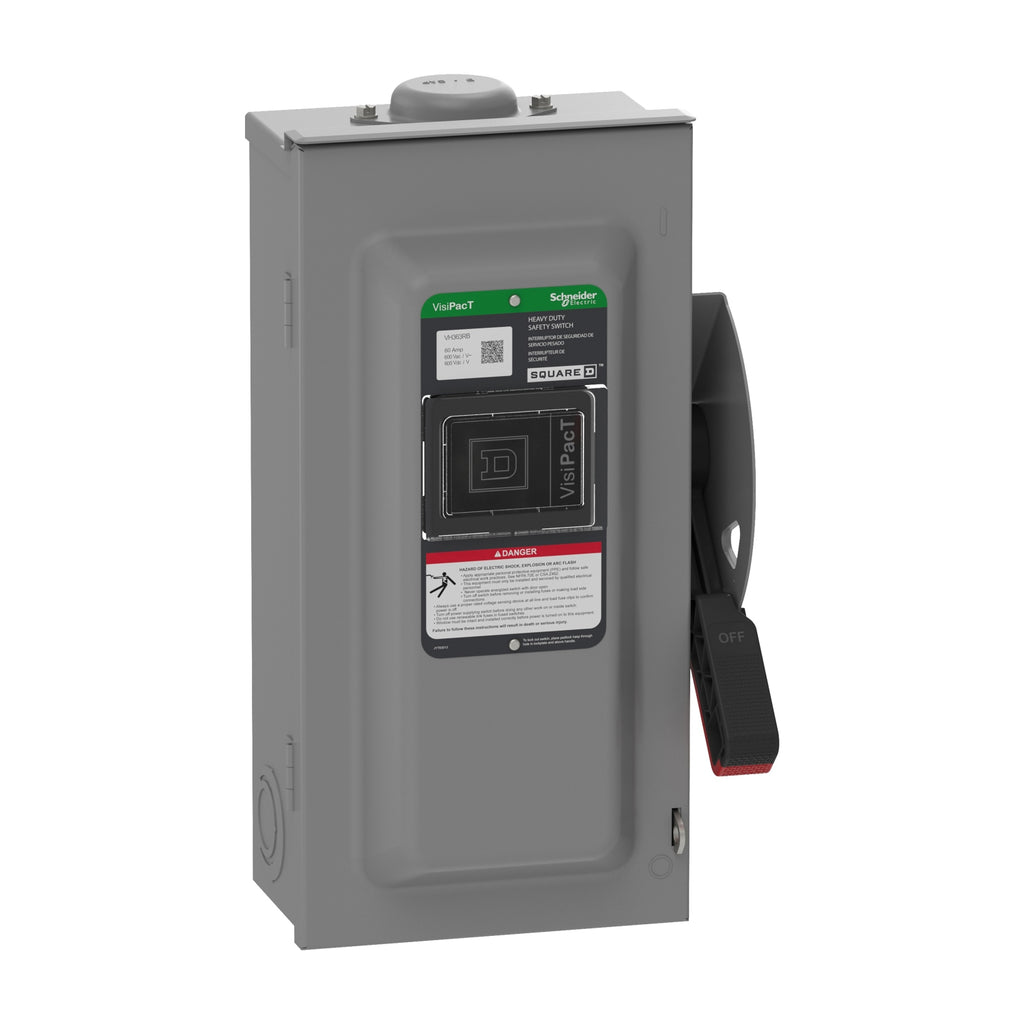

VH363RB is a heavy duty fusible safety switch by Square D designed for reliable power distribution and protection.This 3-pole safety switch is rated for 100 amps and 600 volts AC/DC, featuring a single throw contact configuration and a NEMA 3R galvannealed steel enclosure suitable for indoor and outdoor use. It includes a viewing window and dual cover interlock for enhanced safety and convenience. The switch supports surface mounting and is UL listed, compliant with UL98, CSA C22.2 No 4, and RoHS standards.

Key Specifications
• Amperage: 100 A
• Voltage: 600 VAC/VDC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: Up to 200 kA with appropriate fuses
• Series/Frame: VisiPacT Heavy Duty
• Trip Unit: Fusible disconnect
• Enclosure: NEMA 3R galvannealed steel
• Contact Configuration: Single Throw (3PST)
• Certifications: UL Listed, CSA, RoHS compliant
• Terminal Connection: Lugs
• Wire Gauge: AWG 12 to AWG 1/0 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH363RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600 AC/DC
• Amperage : 100
• Phase : 3
• Poles : 3
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R

Product Data

• UPC : 060648589419
• GTIN : 03606485894195
• Country of Origin : United States
• Dimensions : 22.103 in (561.416 mm) x 9.08 in (230.63 mm) x 7.019 in (178.283 mm) (Height x Width x Depth)
• Weight : 19.8 lb
• Certification : EU RoHS, UL listed file E2875
