Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH363NAWKGL

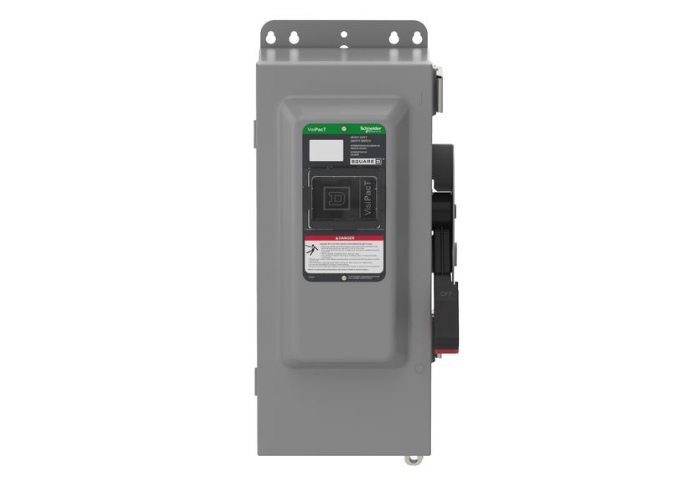

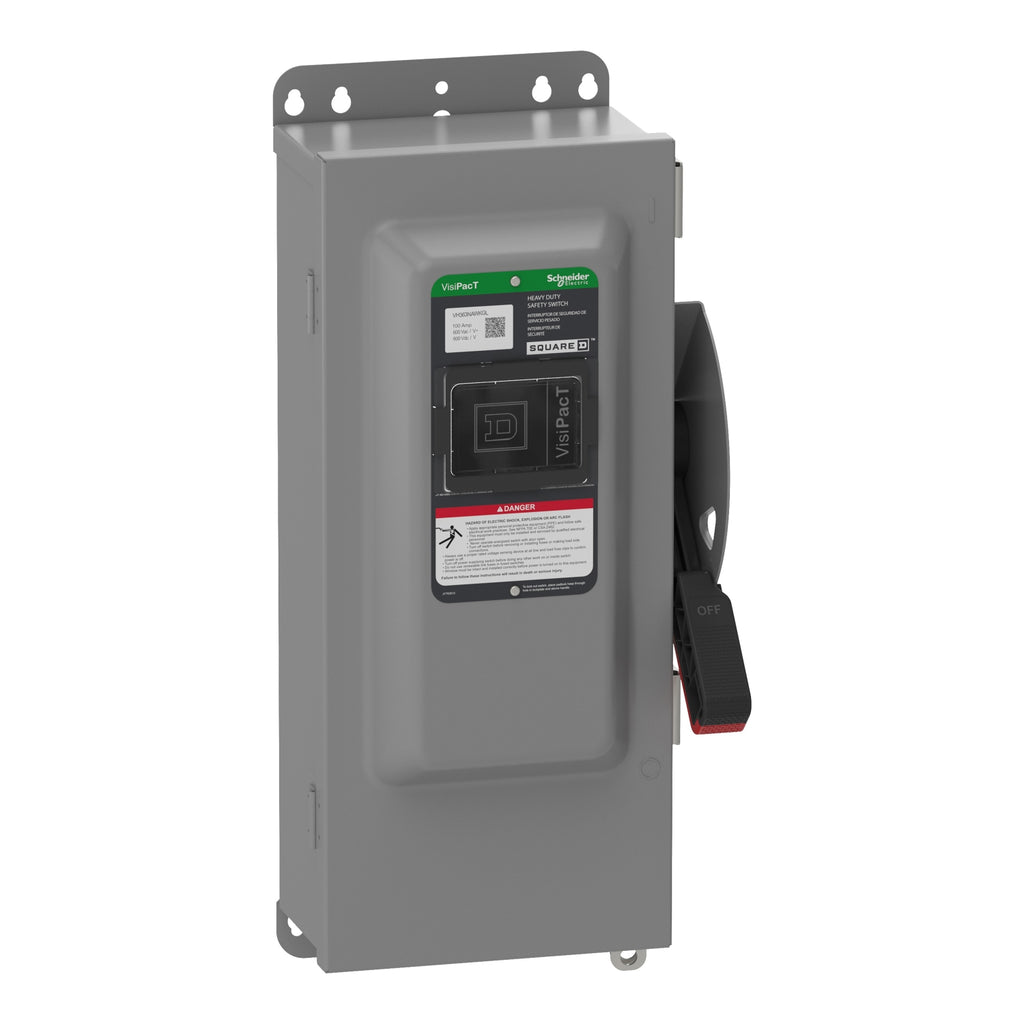

VH363NAWKGL is a Square D 3-pole fusible safety switch rated for 100 amps and 600 volts AC/DC, designed for heavy-duty industrial applications.This safety switch features a NEMA 12 rated enclosure made of galvannealed steel for indoor use, providing protection against dust and dirt. It supports surface mounting and includes lug-type terminal connections compatible with copper and aluminum wiring from AWG 14 to AWG 1/0. The switch is fusible with a single-throw, 3-pole contact configuration, suitable for service entrance and heavy-duty circuit isolation. It complies with UL and RoHS standards and is part of the Square D F series.
- Key Specifications
- Amperage: 100A
- Voltage: 600VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Fusible
- Series/Frame: F Series
- Enclosure Rating: NEMA 12
- Terminal Connection: Lugs
- Enclosure Material: Galvannealed Steel
- Wire Gauge: AWG 14 to AWG 1/0 Copper/Aluminum
- Certifications: UL, RoHS
- Duty Rating: Heavy Duty
Specifications
- Part Number: VH363NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589411
- GTIN : 03606485894119
- Country of Origin : United States
- Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : UL listed file E2996
