Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH363GL

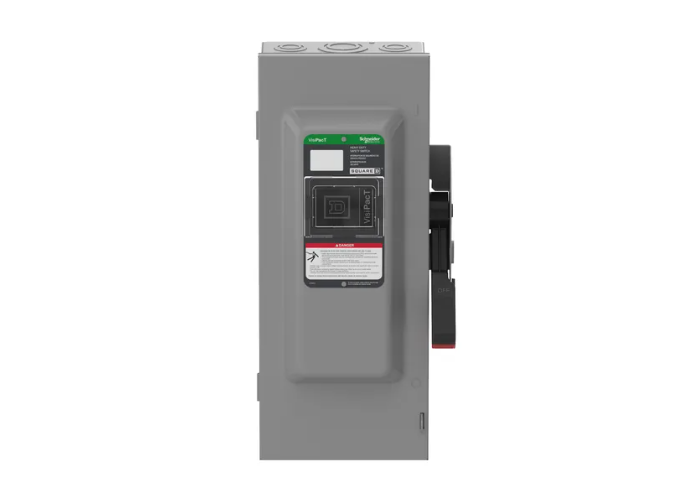

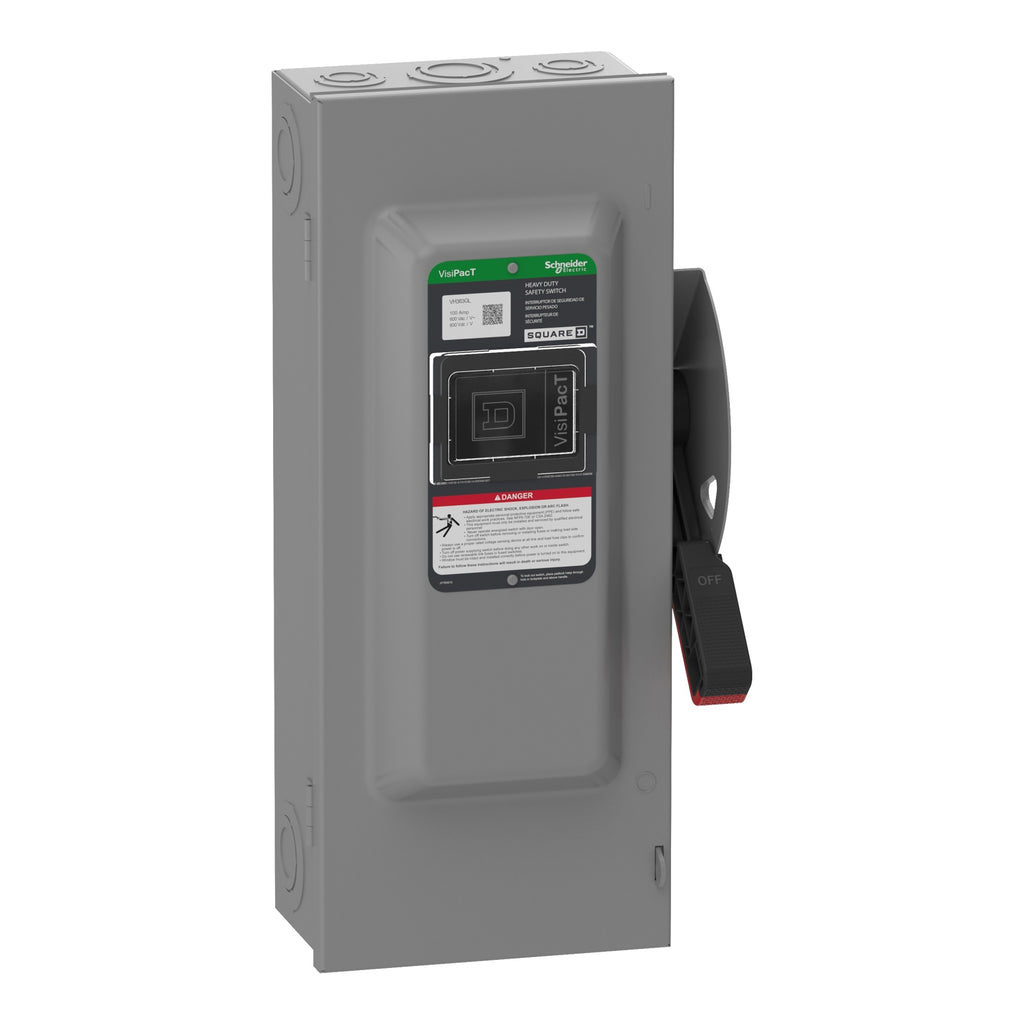

VH363GL is a Square D heavy duty fusible safety switch rated for 100 amps and 600 volts with 3 poles and NEMA 1 enclosure.VH363GL features a fusible disconnect design with a viewing window for fuse status, suitable for heavy application use. It supports 3-phase power and includes ground lugs for safe grounding. This switch is surface mounted and built to meet industrial safety standards.
- Key Specifications
- Amperage: 100A
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Heavy duty fusible
- Enclosure: NEMA 1 steel
- Series/Frame: VH heavy duty
- Trip Unit: Fusible disconnect
- Viewing Window: Yes
- Ground Lugs: Included
- Country of Origin: USA
Specifications
- Part Number: VH363GL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589420
- GTIN : 03606485894201
- Country of Origin : United States
- Dimensions : 21.84 in (554.74 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
- Weight : 19.8 lb
- Certification : UL listed file E2994
