Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH363BRBGL

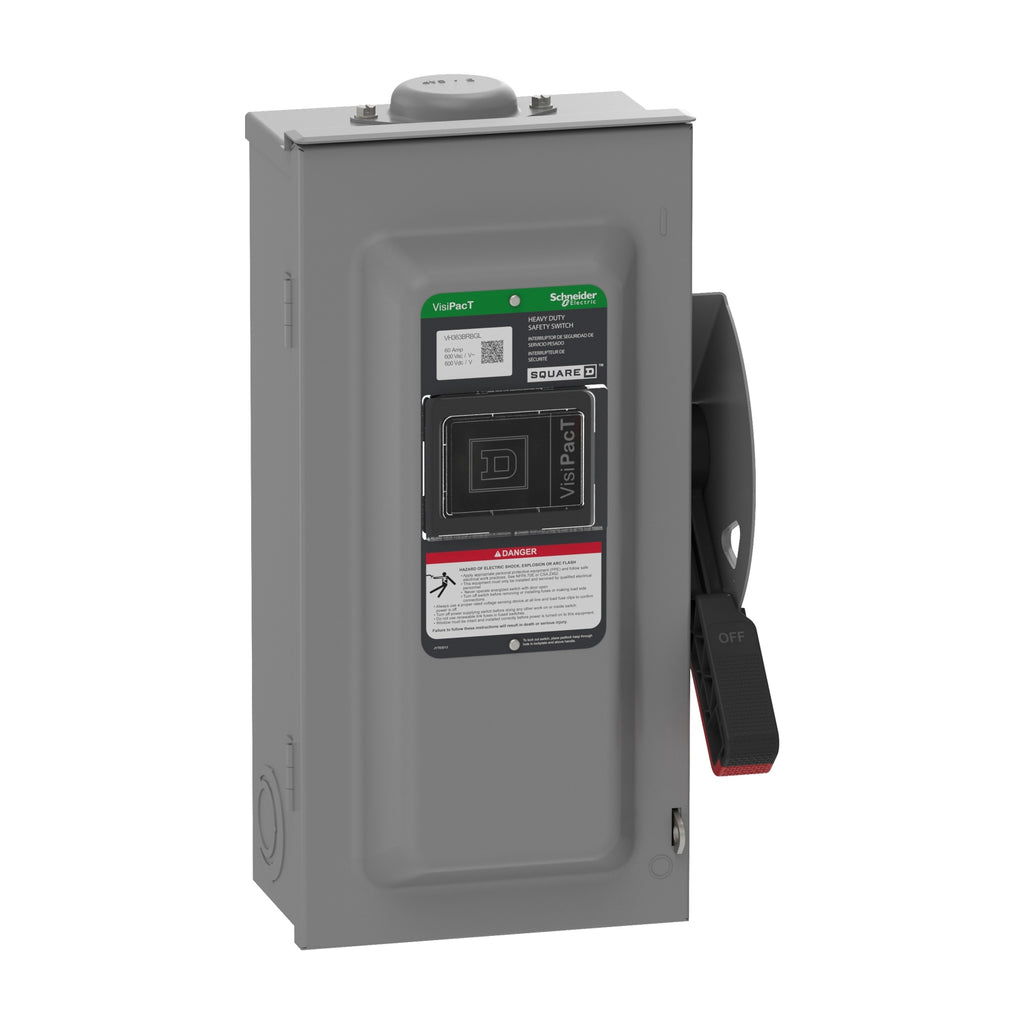

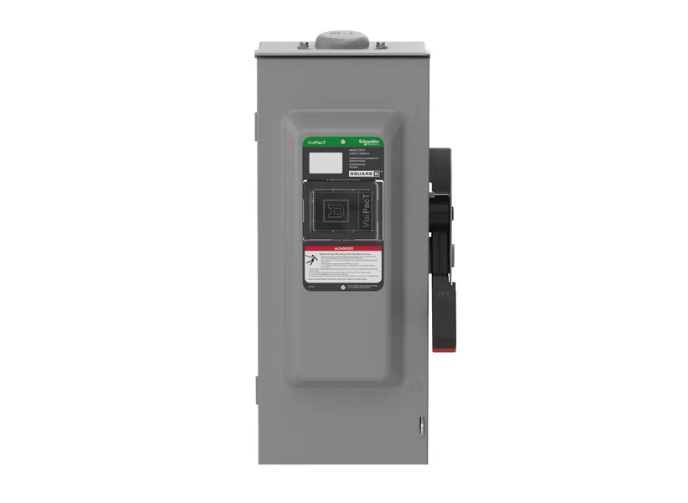

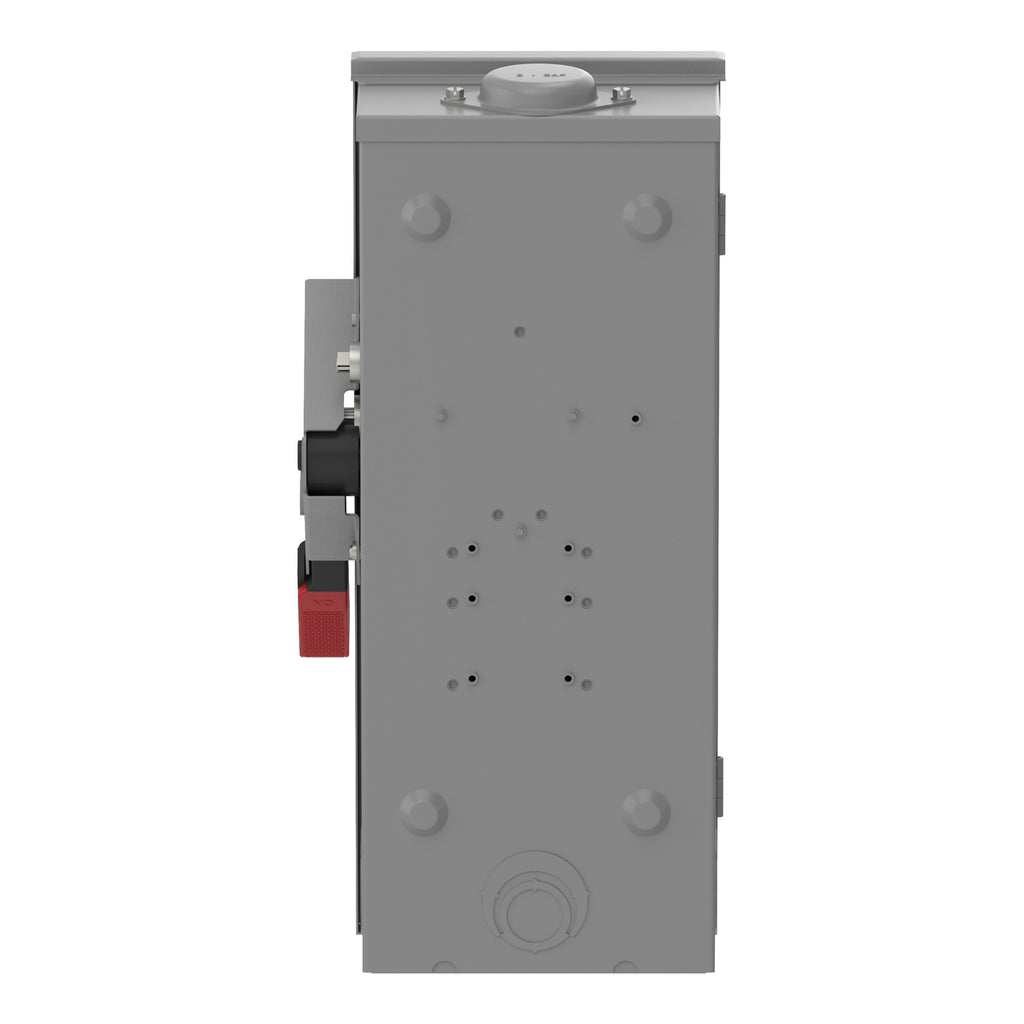

VH363BRBGL is a Square D 100 Amp, 600 Volt, 3-pole fusible safety switch designed for heavy-duty industrial and commercial applications.VH363BRBGL features a NEMA 3R enclosure rating for outdoor use and reliable protection. This switch supports both 600 VAC and 600 VDC systems, providing versatile power distribution control with fusible protection for enhanced safety.
- Amperage: 100 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Switch Style: Fusible
- Enclosure Rating: NEMA 3R
- Mounting Type: Surface mount
- Series/Frame: VH Series
- Country of Origin: United States
- Heavy-duty industrial design
- Suitable for commercial and industrial electrical systems
Specifications
- Part Number: VH363BRBGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589415
- GTIN : 03606485894157
- Country of Origin : United States
- Dimensions : 22.103 in (561.416 mm) x 9.08 in (230.63 mm) x 7.019 in (178.283 mm) (Height x Width x Depth)
- Weight : 18.691 lb
- Certification : UL listed file E2992
