2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH363BGL

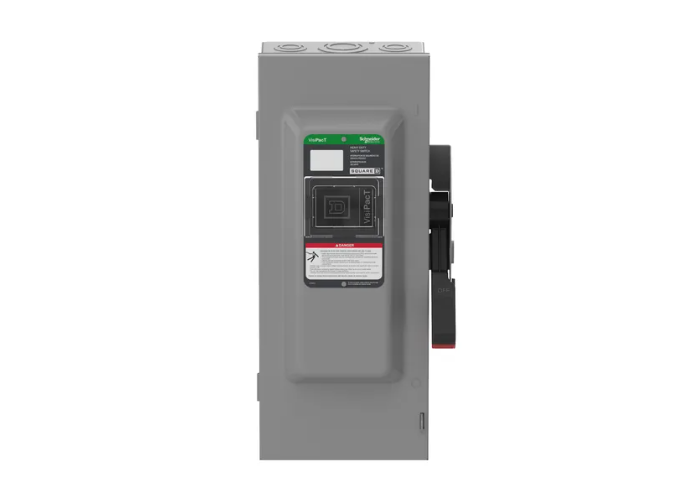

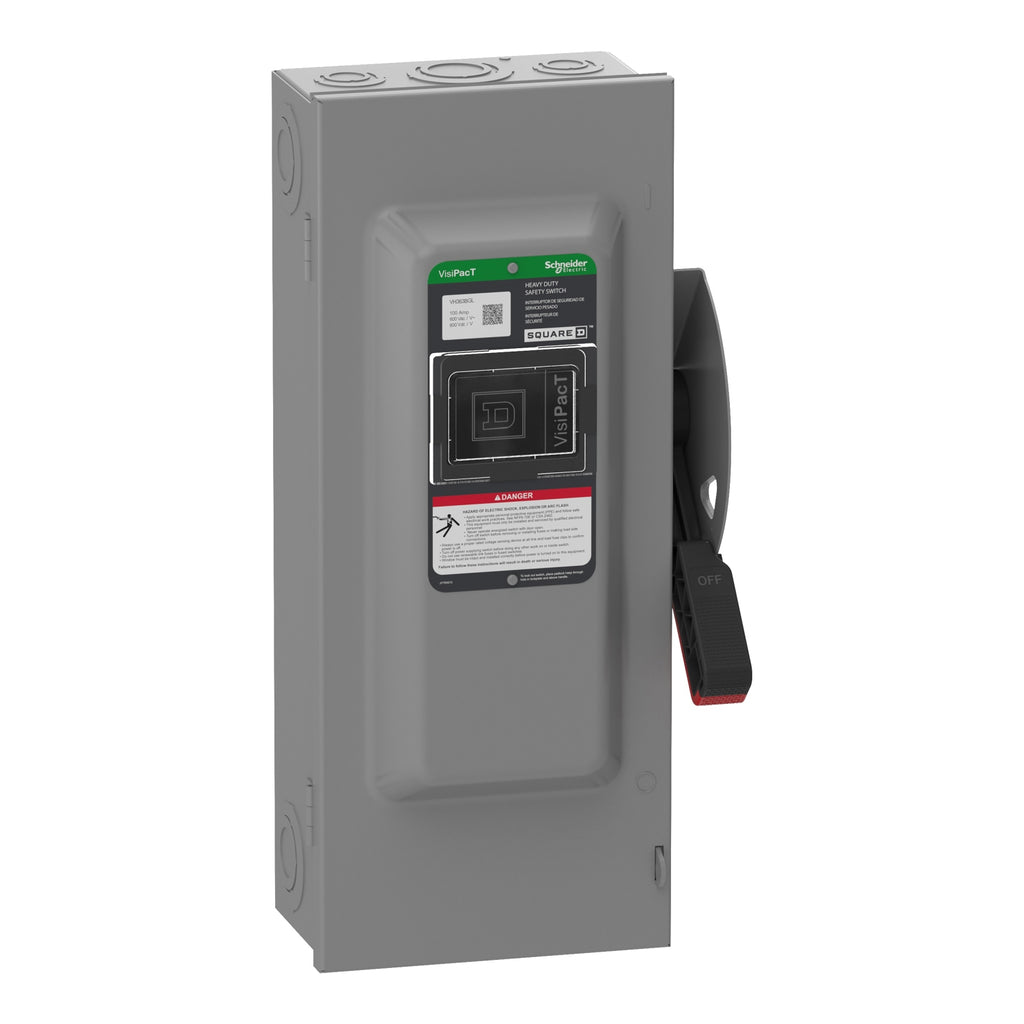

VH363BGL is a Square D heavy duty fusible safety switch rated for 100 amps and 600 volts with 3 poles and a NEMA 1 enclosure.VH363BGL features a fusible disconnect design with a viewing window for visual confirmation of switch position, neutral bonding, and ground lugs. It is suitable for industrial and commercial applications requiring reliable heavy duty performance and meets relevant safety certifications.
- Manufacturer: Square D
- Amperage: 100 Amps
- Voltage: 600 VAC
- Poles: 3
- Enclosure: NEMA 1
- Type: Fusible Safety Switch
- Mounting: Surface Mount
- Viewing window for switch status
- Neutral bonded with ground lugs
- Heavy duty construction for industrial use
- Suitable for service entrance with proper accessories
- Certifications: Meets industry safety standards
Specifications
- Part Number: VH363BGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589414
- GTIN : 03606485894140
- Country of Origin : United States
- Dimensions : 21.84 in (554.74 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
- Weight : 17.919 lb
- Certification : UL listed file E2991
