Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH363BDSGL

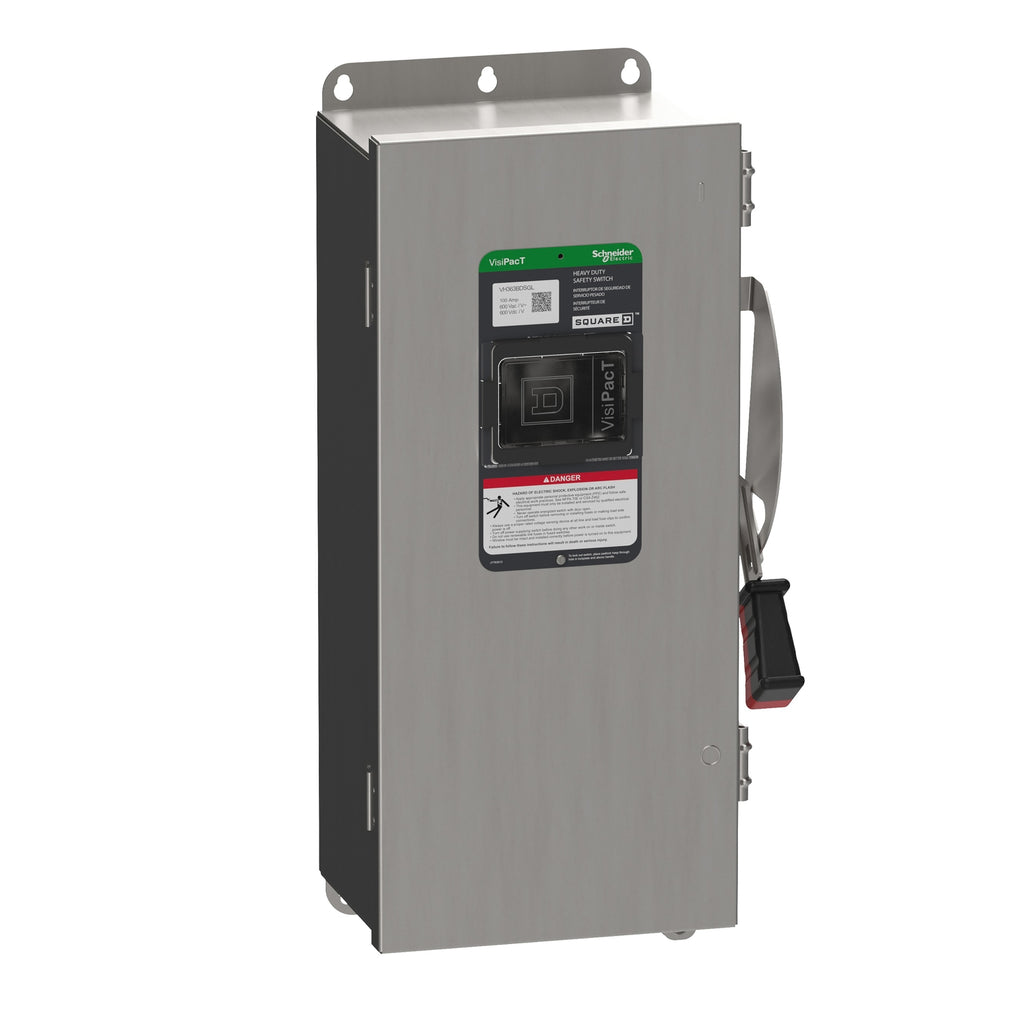

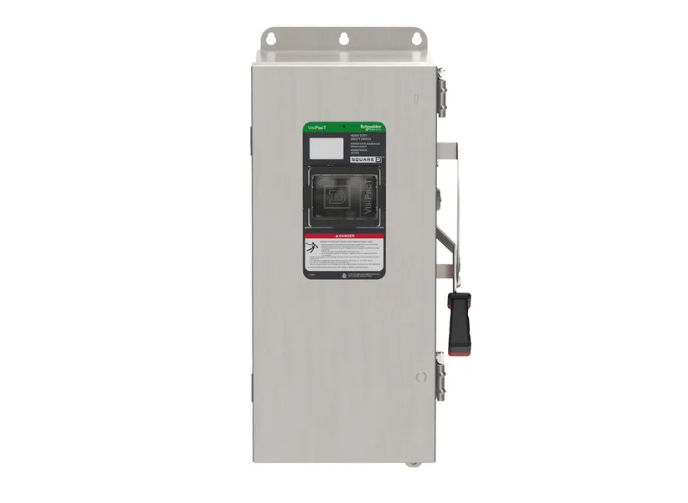

VH363BDSGL is a Square D heavy duty safety switch rated for 100 Amps and 600 Volts AC/DC with 3 poles and NEMA 4X enclosure.This safety switch features a quick-make, quick-break operating mechanism with dual cover interlock for enhanced safety. It includes a viewing window for visual confirmation of switch position without opening the door. The switch is suitable for service entrance applications when equipped with neutral assembly or equipment grounding kit. It is designed for heavy duty industrial use with a robust NEMA 4X enclosure rating, providing protection against harsh environmental conditions.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Heavy Duty, Surface Mount
- Interrupt Rating: Heavy Duty
- Enclosure Rating: NEMA 4X
- Dual Cover Interlock for Safety
- Viewing Window for Switch Position
- Neutral Bonded and Ground Lugs Included
- Series/Frame: VisiPacT
- Certifications: UL Listed
Specifications
- Part Number: VH363BDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589417
- GTIN : 03606485894171
- Country of Origin : United States
- Dimensions : 20.73 in (526.54 mm) x 9.336 in (237.134 mm) x 7.2 in (182.9 mm) (Height x Width x Depth)
- Weight : 24.03
- Certification : UL listed file E2990
