Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH363BAWKGL

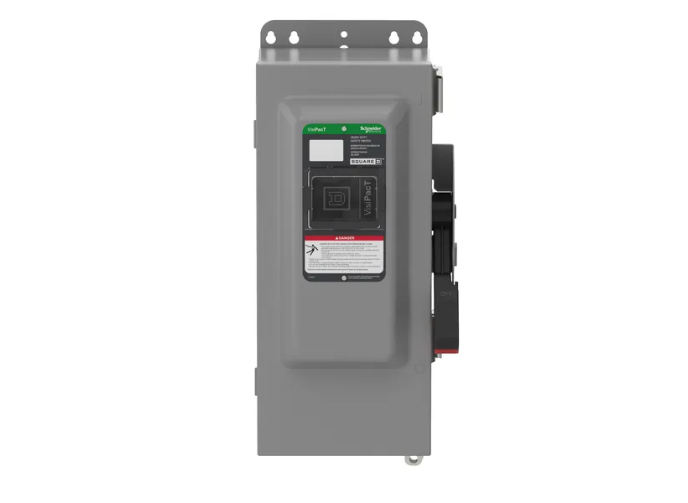

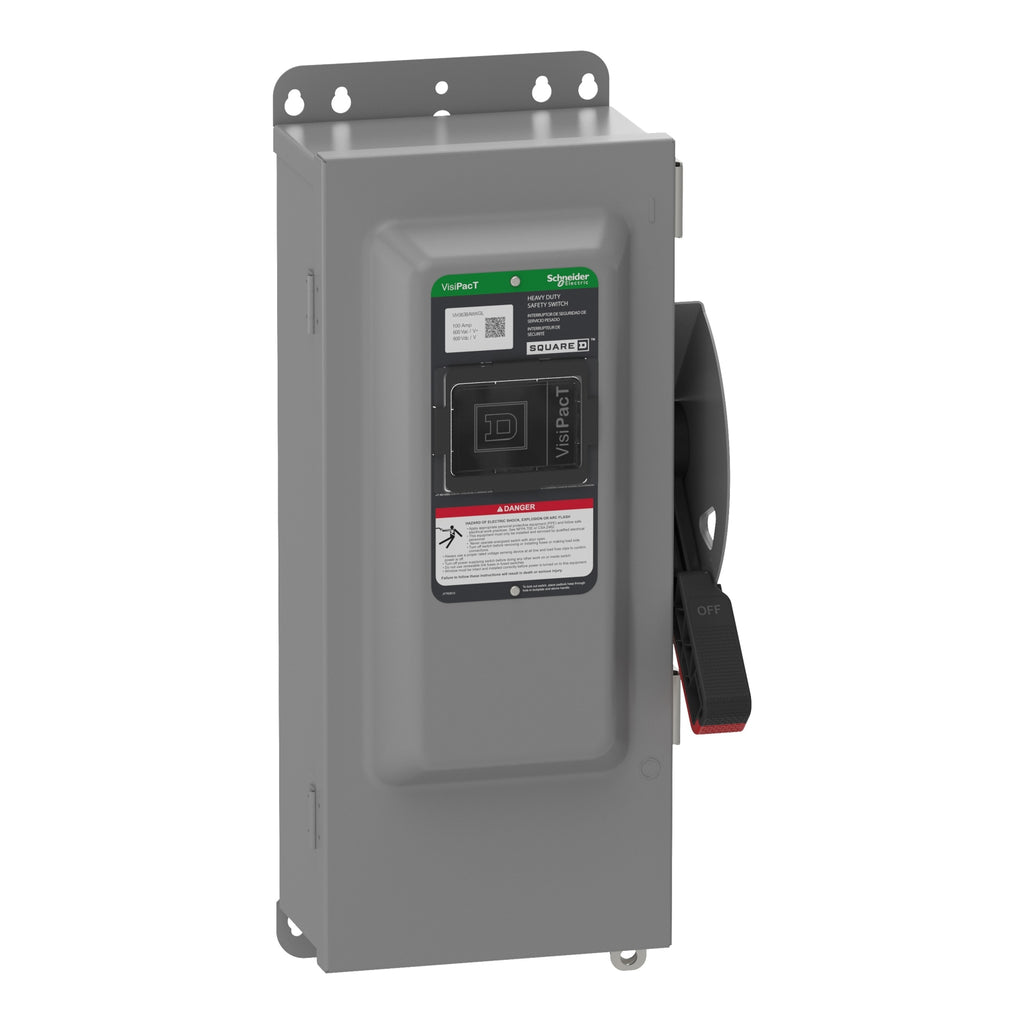

VH363BAWKGL is a Square D heavy duty fusible safety switch rated for 100 amps and 600 volts AC/DC with 3 poles and NEMA 12 enclosure.This safety switch features a surface mounting type and is designed for heavy duty applications with a fusible disconnect. It includes a galvannealed steel enclosure, lug-type terminal connections, and a dual cover interlock for enhanced safety. The switch is UL listed and meets EU RoHS standards, suitable for 3-phase service entrance or industrial use. It supports wire gauges from AWG 14 to AWG 1/0 for aluminum or copper wiring.
- Key Specifications
- Amperage: 100 A
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 10,000 A
- Series/Frame: VisiPact F
- Trip Unit: Fusible
- Enclosure: NEMA 12, Galvannealed Steel
- Terminal Connection: Lugs
- Certifications: UL Listed, EU RoHS Compliant
- Wire Gauge: AWG 14 to AWG 1/0 Aluminum/Copper
- Phase: 3
Specifications
- Part Number: VH363BAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589416
- GTIN : 03606485894164
- Country of Origin : United States
- Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
- Weight : 20.9
- Certification : UL listed file E2989
