Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH363AWKGL

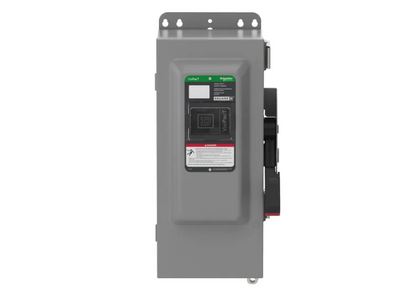

VH363AWKGL is a Square D heavy duty fusible safety switch rated for 100 amps and 600 volts AC/DC with 3 poles and NEMA 12 enclosure.VH363AWKGL features a surface mounting type with galvannealed steel enclosure, single throw contact configuration, and lug terminal connections. It is designed for heavy duty indoor applications with a 10 kA interrupt rating and includes a viewing window and ground lugs for safety and convenience. This switch complies with UL standards and RoHS directives.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 10 kA
- Series/Frame: F
- Trip Unit: Fusible
- Enclosure Type: NEMA 12
- Material: Galvannealed Steel
- Terminal Connection: Lugs
- Certifications: UL, RoHS
- Contact Configuration: Single Throw
Specifications
- Part Number: VH363AWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 60648589422
- GTIN : 03606485894225
- Country of Origin : United States
- Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : EU RoHS, UL listed file E2875
