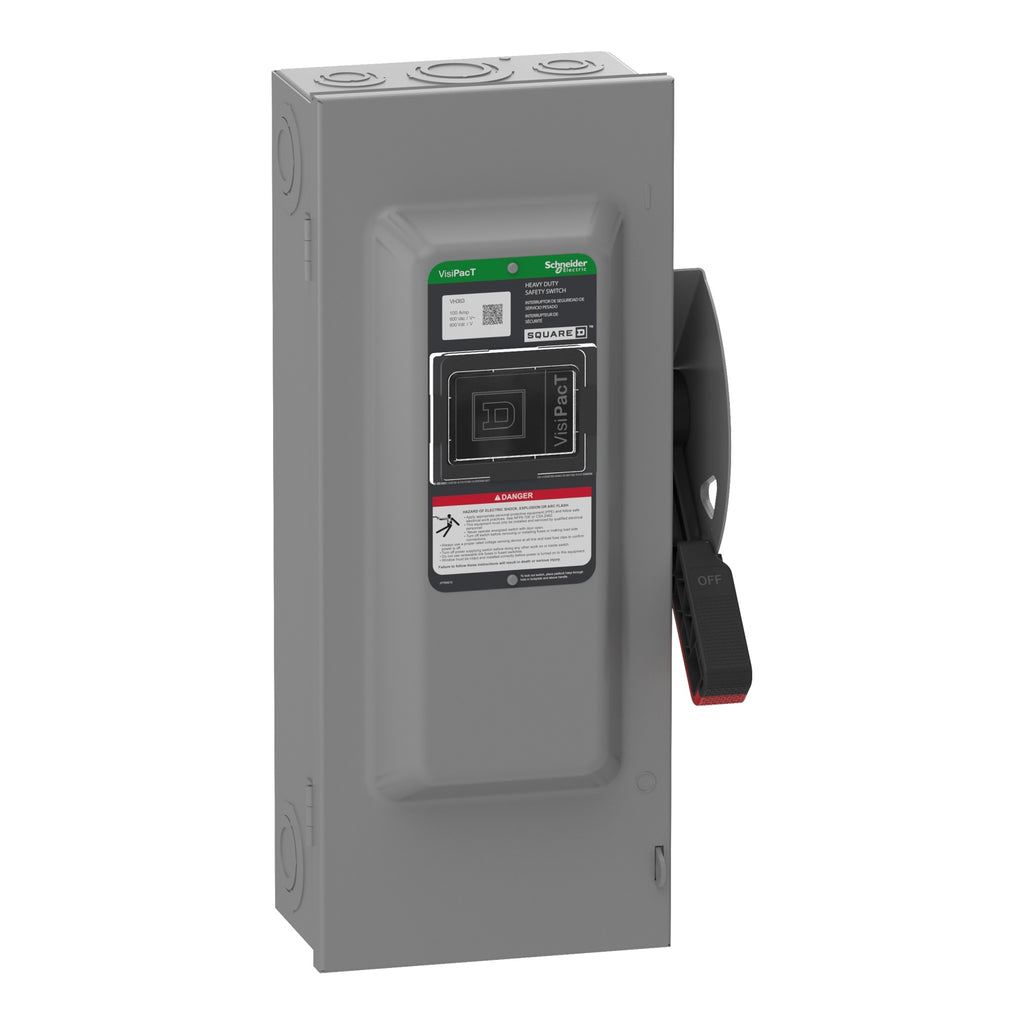

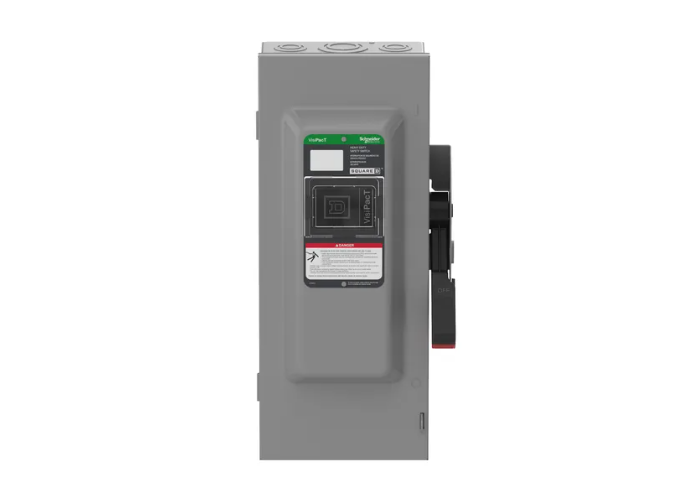

VH363 - Square D 100A 600V 3-Pole Heavy Duty Fused Safety Switch Surface Mount NEMA 1

VH363

VH363 is a Square D heavy duty fused safety switch rated for 100 amps and 600 volts with 3 poles and surface mounting.

This VH363 safety switch features a fusible design with a viewing window for fuse status, suitable for indoor applications with a NEMA 1 enclosure. It supports 3-phase power, has a 10 kA interrupt rating, and is constructed with galvannealed steel for durability. The switch includes lug-type terminal connections and complies with UL and RoHS standards, making it ideal for service entrance and heavy-duty electrical distribution.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 3
• Mounting Type: Surface Mount
• Interrupt Rating: 10 kA
• Series/Frame: VisiPacT
• Trip Unit: Fusible
• Enclosure: NEMA 1, Galvannealed Steel
• Terminal Connection: Lugs
• Certifications: UL Listed, RoHS Compliant
• Duty Rating: Heavy Duty
• Contact Configuration: 3PST

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH363
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600 AC/DC
• Amperage : 100
• Phase : 3
• Poles : 3
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589418
• GTIN : 03606485894188
• Country of Origin : United States
• Dimensions : 21.84 in (554.74 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
• Weight : 19.8 lb
• Certification : EU RoHS, UL listed file E2875
