Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH362RBGL

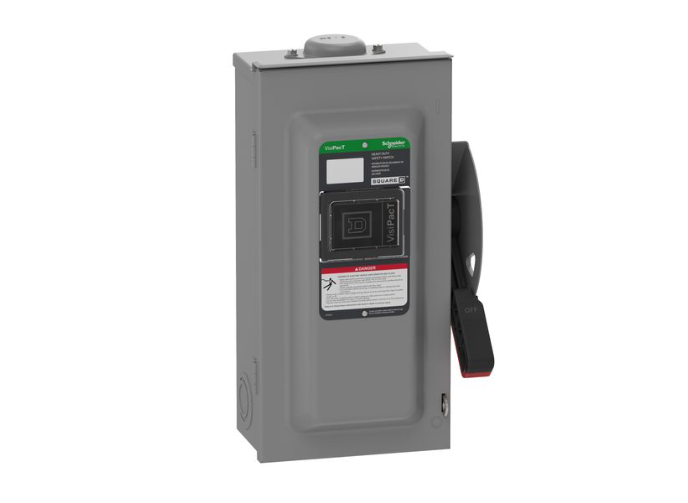

VH362RBGL is a Square D heavy duty fusible safety switch rated for 60 amps and 600 volts AC/DC with a 3-pole configuration and NEMA 3R enclosure.VH362RBGL features a surface mounting type, galvanealed steel enclosure, and lug-type terminals. It supports 3-phase power with a short circuit rating of 10,200 kA and is suitable for indoor/outdoor heavy-duty applications. The switch includes a handle actuator and is UL and EU RoHS certified.
- Amperage Rating: 60 A
- Voltage Rating: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 10,200 kA
- Enclosure Type: NEMA 3R
- Enclosure Material: Galvannealed Steel
- Terminal Type: Lug
- Phase: 3
- Duty Rating: Heavy Duty
- Fusible: Yes
- Certifications: UL, EU RoHS
Specifications
- Part Number: VH362RBGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589405
- GTIN : 03606485894058
- Country of Origin : United States
- Dimensions : 18.456 in (468.782 mm) x 9.08 in (230.63 mm) x 7.038 in (178.765 mm) (Height x Width x Depth)
- Weight : 17.6 lb
- Certification : UL listed file E2985
