Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH362RB

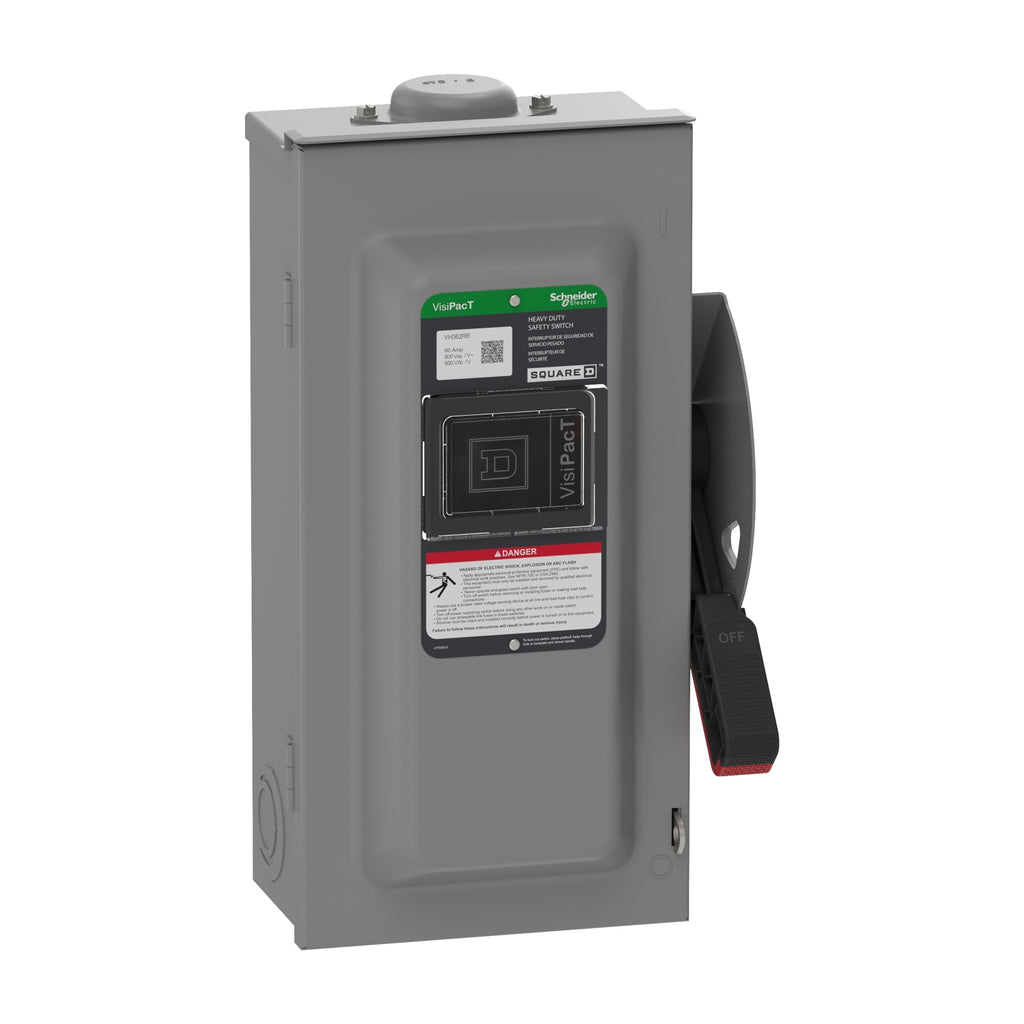

VH362RB is a Square D heavy duty fusible safety switch rated for 60 amps and 600 volts AC/DC with a 3-pole configuration.VH362RB features a NEMA 3R galvannealed steel enclosure designed for surface mounting, suitable for indoor and outdoor use. It includes a single throw handle actuator, lug-type terminals, and a short circuit current rating of 10,200 amps. This switch supports 3-phase power and is UL and EU RoHS certified.
- Key Specifications
- Amperage: 60 A
- Voltage: 600 VAC/VDC
- Poles: 3
- Phase: 3
- Mounting Type: Surface
- Enclosure: NEMA 3R galvannealed steel
- Interrupt Rating: 10,200 A short circuit
- Terminal Type: Lug
- Handle Actuator: Single Throw
- Dimensions: 18.75 in H x 9.08 in W x 7.04 in D
- Certifications: UL, EU RoHS
- Duty Rating: Heavy Duty Fusible
Specifications
- Part Number: VH362RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 60
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589403
- GTIN : 03606485894034
- Country of Origin : United States
- Dimensions : 18.456 in (468.782 mm) x 9.08 in (230.63 mm) x 7.038 in (178.765 mm) (Height x Width x Depth)
- Weight : 17.6 lb
- Certification : EU RoHS, UL listed file E2875
