Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH362NRB

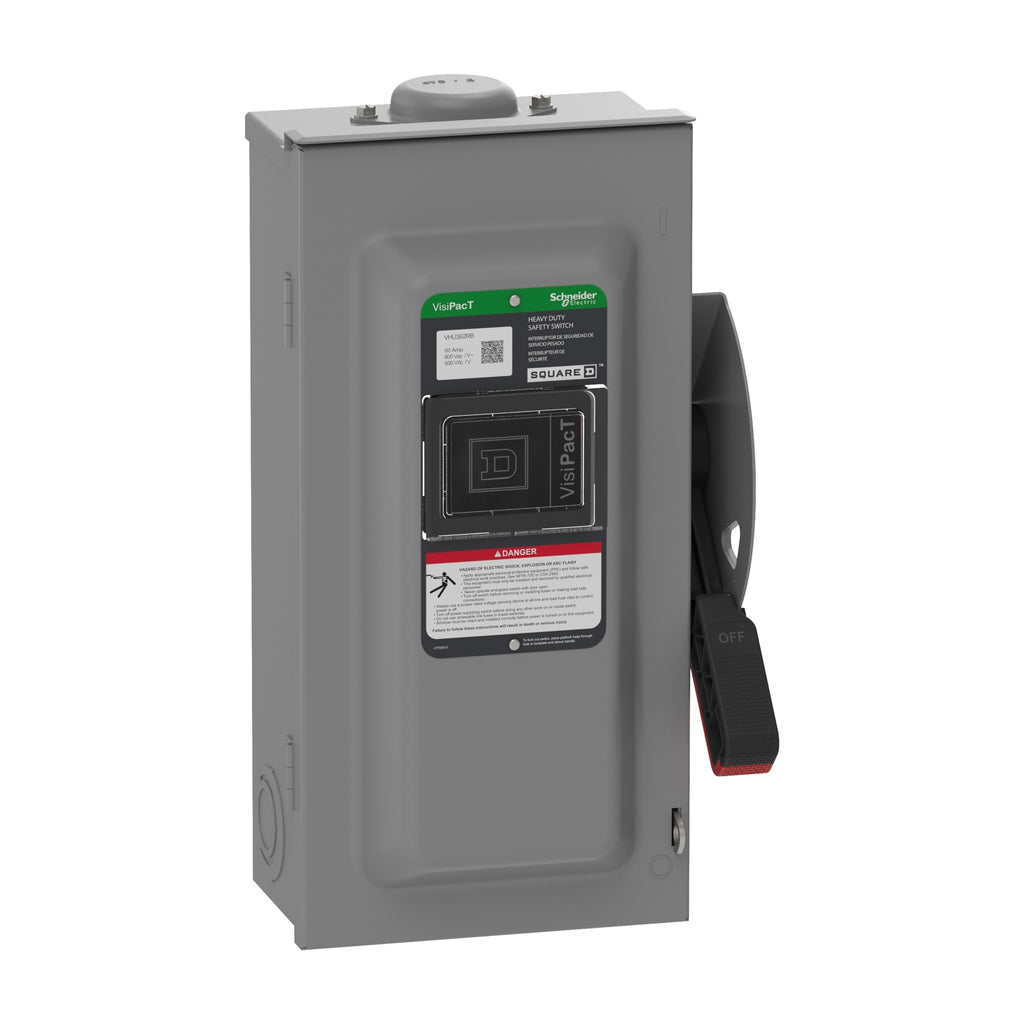

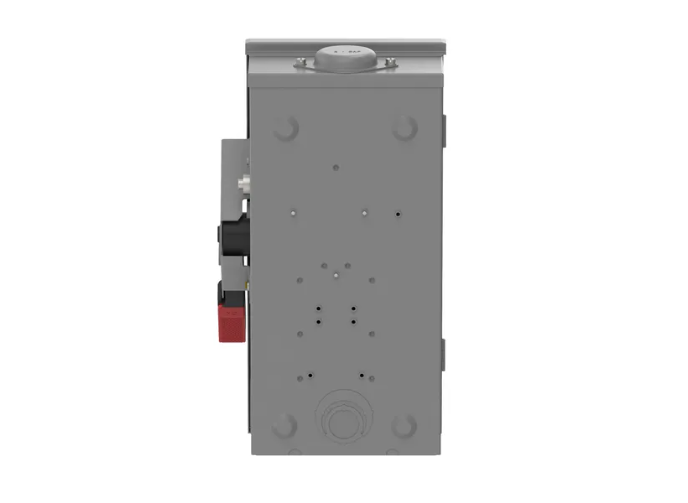

VH362NRB is a Square D heavy duty fusible safety switch rated for 60 amps and 600 volts AC/DC with 3 poles and neutral. It features a NEMA 3R enclosure and is designed for surface mounting.This safety switch includes a fusible disconnect with a viewing window, dual cover interlock, and bolt-on hub provision. It supports 4-wire, 3-phase applications with a 50 HP motor rating at 600 VAC/DC. The enclosure is galvannealed steel, suitable for outdoor use, and meets UL certification standards.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Neutral: Yes, 4-wire configuration
- Mounting Type: Surface mount
- Interrupt Rating: Fusible disconnect
- Enclosure: NEMA 3R, galvannealed steel
- Dimensions: Approx. 18.4" H x 9.08" W x 6.98" D
- Series/Frame: Heavy Duty
- Trip Unit: Fusible
- Certifications: UL Listed
- Additional Features: Dual cover interlock, bolt-on hub provision
Specifications
- Part Number: VH362NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 60
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589394
- GTIN : 03606485893945
- Country of Origin : United States
- Dimensions : 18.456 in (468.782 mm) x 9.08 in (230.63 mm) x 7.038 in (178.765 mm) (Height x Width x Depth)
- Weight : 16.239 lb
- Certification : EU RoHS, UL listed file E2875
