Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH362BRBGL

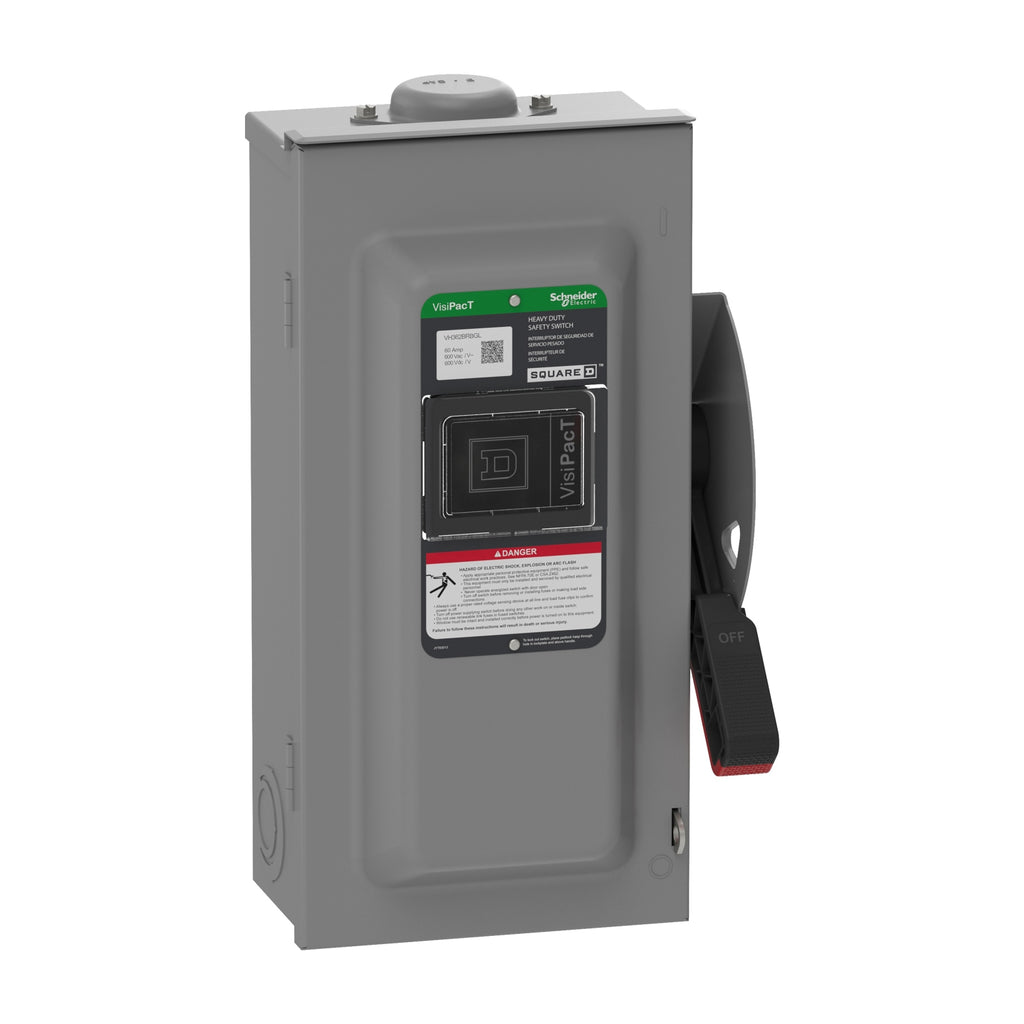

VH362BRBGL is a Square D heavy duty fusible safety switch rated for 60 amps and 600 volts AC/DC with a 3-pole configuration and NEMA 3R enclosure.This switch features a galvannealed steel enclosure designed for surface mounting, providing robust protection in industrial environments. It includes a handle actuator for easy operation and lug-type terminals for secure wiring connections. The switch supports three-phase power and has a short circuit current rating of 10,000 amps. It is suitable for use with Class H/J/K/R fuses and is built to handle horsepower ratings of 15, 30, and 50 hp.
- Key Specifications
- Amperage: 60 A
- Voltage: 600 V AC/DC
- Poles: 3
- Mounting Type: Surface
- Enclosure Type: NEMA 3R
- Material: Galvannealed Steel
- Short Circuit Current Rating: 10,000 A
- Terminal Type: Lug
- Phase: 3
- Horsepower Ratings: 15, 30, 50 hp
- Actuator Type: Handle
- Part Number: VH362BRBGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- UPC : 060648589399
- GTIN : 03606485893990
- Country of Origin : United States
- Dimensions : 18.456 in (468.782 mm) x 9.08 in (230.63 mm) x 7.038 in (178.765 mm) (Height x Width x Depth)
- Weight : 16.471
- Certification : UL listed file E2976
