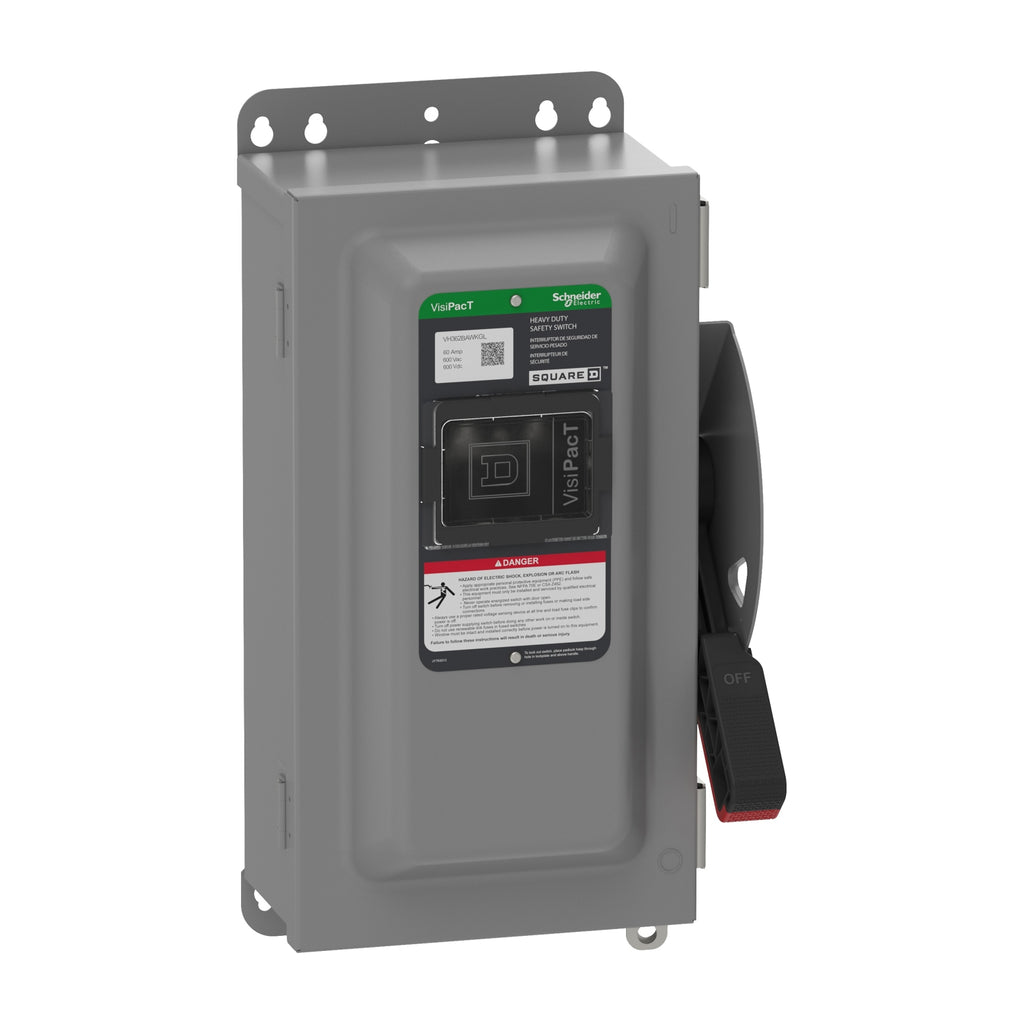

VH362BAWKGL - Square D 60A 3-Pole Fusible Safety Switch 600V NEMA 12 Heavy Duty

VH362BAWKGL

VH362BAWKGL is a heavy-duty fusible safety switch designed for reliable circuit protection in demanding commercial and industrial environments. This Square D switch features a robust construction and is suitable for applications requiring a 60A, 3-pole, 600V disconnect with a viewing window and ground lugs. The VH362BAWKGL safety switch is part of the VisiPacT series and is rated for 60A at 600V AC/DC. It is a 3-pole, fusible, NEMA 12 heavy-duty switch with a quick-make, quick-break operating mechanism and dual cover interlock. The switch includes a color-coded indicator handle and factory-installed equipment ground lugs. It is compatible with H, K, R, or J type fuses and is tested per UL98 and NEMA KS1 standards. The wire range is AWG 12–3 aluminum and AWG 14–3 copper.

• Part Number: VH362BAWKGL
• Manufacturer: Square D
• Amperage: 60A
• Voltage: 600V AC/DC
• Poles: 3
• Mounting Type: NEMA 12
• Interrupt Rating: 10kA or 200kA (depending on fuse used)
• Series/Frame: VisiPacT
• Fuse Type: H, K, R, J
• Standards: UL98, NEMA KS1
• Wire Range: AWG 12–3 Al, AWG 14–3 Cu
• Ground Lugs: Factory Installed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH362BAWKGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12

Product Data

• UPC : 060648589400
• GTIN : 03606485894003
• Country of Origin : United States
• Dimensions : 16.54 in (420.12 mm) x 8.92 in (226.57 mm) x 7.164 in (181.966 mm) (Height x Width x Depth)
• Weight : 20.9
• Certification : UL listed file E2973
