Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH362

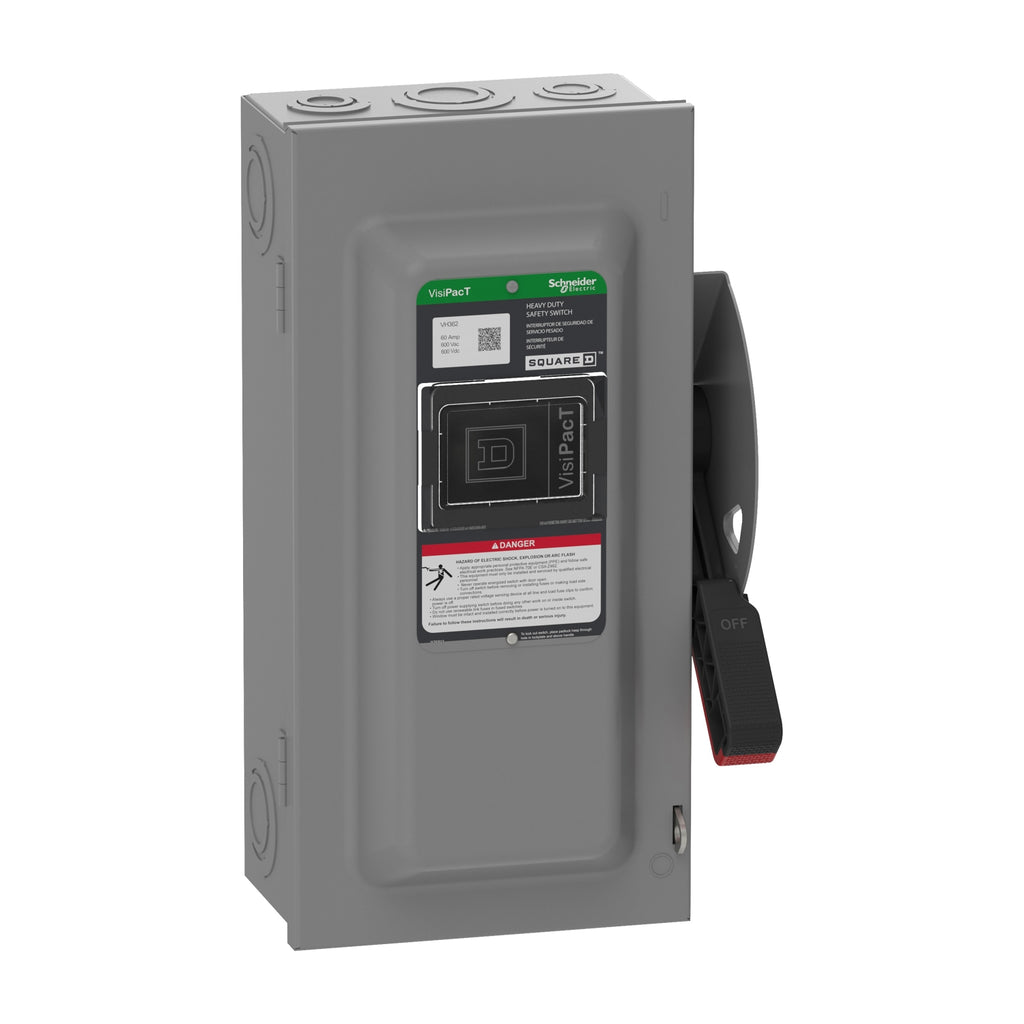

VH362 is a Square D heavy duty fusible safety switch rated for 60 amps and 600 volts with 3 poles and NEMA 1 enclosure.VH362 features a surface mounting type, single throw action, and is designed for indoor use with a galvannealed steel enclosure. It supports Class H/J/K/R fuses and includes a viewing window and dual cover interlock for enhanced safety. This switch is UL approved and suitable for service entrance and heavy-duty applications.
- Manufacturer: Square D
- Amperage: 60A
- Voltage: 600VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Class H/J/K/R Fusible
- Series/Frame: F Series
- Trip Unit: Fusible
- Enclosure Rating: NEMA 1 Indoor
- Material: Galvannealed Steel
- Action: Single Throw
- Certifications: UL, EU RoHS Compliant
Specifications
- Part Number: VH362
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 60
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589402
- GTIN : 03606485894027
- Country of Origin : United States
- Dimensions : 18.184 in (461.874 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
- Weight : 17.6 lb
- Certification : EU RoHS, UL listed file E2875
