Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH361SSGL

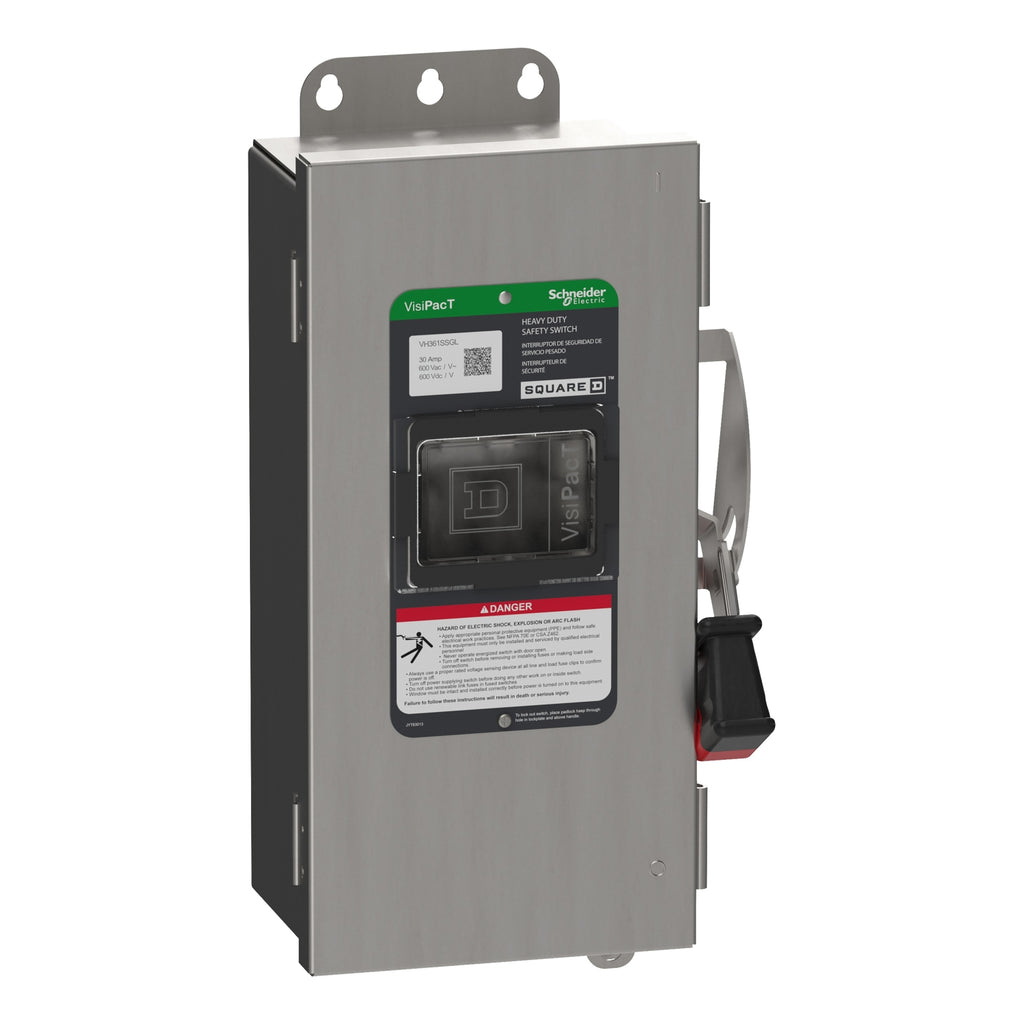

VH361SSGL is a Square D heavy duty non-fusible safety switch rated for 30 amps and 600 volts AC/DC with 3 poles and a NEMA 4X stainless steel enclosure.VH361SSGL features a surface mounting type, lug terminal connections, and a 304 stainless steel enclosure designed for indoor and outdoor heavy duty applications. It supports 3-wire, 3-phase systems and complies with UL standards for safety and durability.
- Amperage: 30 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Heavy Duty
- Series/Frame: F Series
- Trip Unit: Non-Fusible
- Enclosure: 304 Stainless Steel, NEMA 4X
- Terminal Connection: Lug
- Phase: 3
- Certifications: UL Listed
- Wire Gauge: AWG 12 to AWG 6 Aluminum/Copper
Specifications
- Part Number: VH361SSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589391
- GTIN : 03606485893914
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.2 lb
- Certification : UL listed file E2970
