Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH361RB

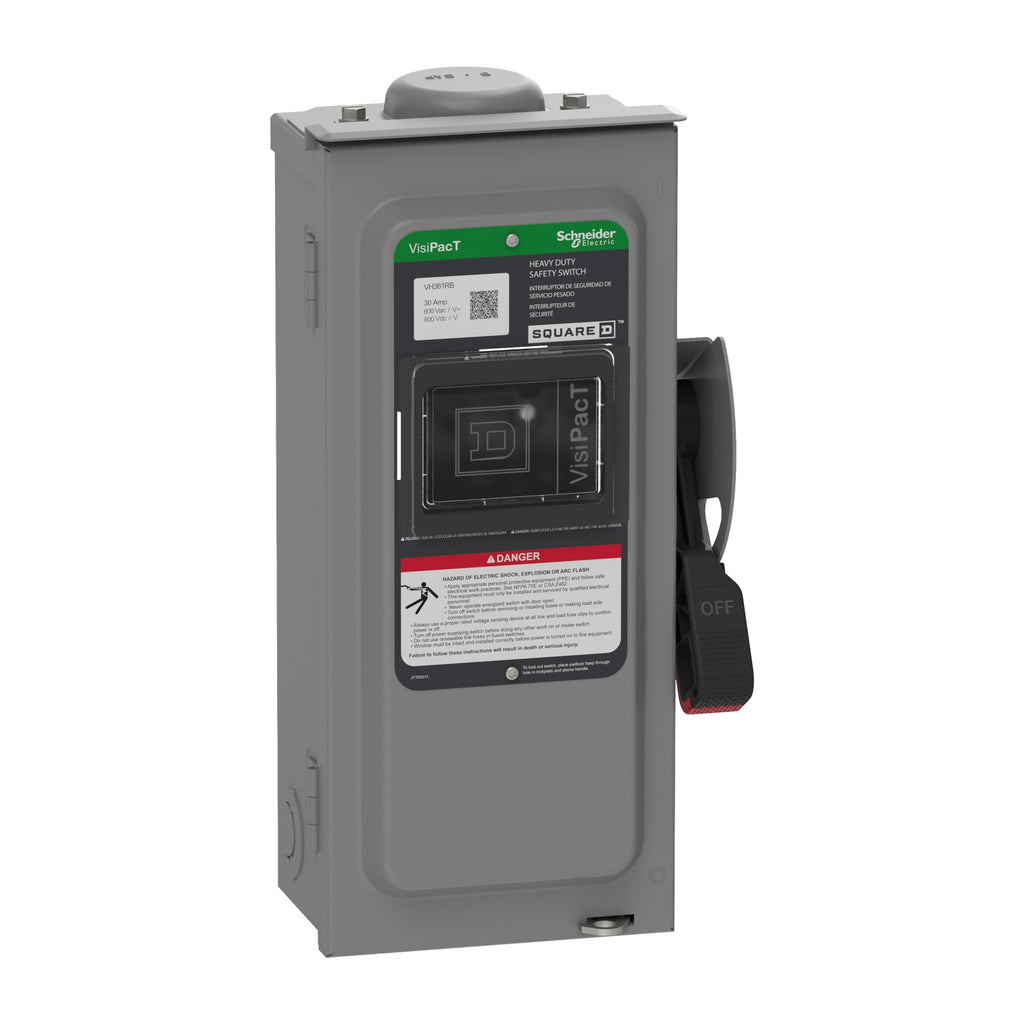

VH361RB is a Square D heavy duty fused safety switch designed for reliable power distribution and protection.This 3-pole safety switch features a 30 ampere rating and 600 volt AC/DC voltage capacity. It is housed in a NEMA 3R galvanized steel enclosure with a viewing window for fuse status inspection. The switch is surface mounted and rated for a 10 kA interrupt current. It includes touch-safe barriers and shields to prevent accidental contact and is suitable for commercial and industrial applications.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 Volts AC/DC
- Number of Poles: 3
- Mounting Type: Surface Mount
- Interrupt Rating: 10 kA
- Enclosure Type: NEMA 3R Raintight
- Enclosure Material: Galvannealed Steel
- Fuse Type: Fusible (Class R)
- Dimensions: 14.84" H x 6.63" W x 5.16" D
- Country of Origin: USA
- Certifications: UL Listed
- Part Number: VH361RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 30
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- UPC : 060648589386
- GTIN : 03606485893860
- Country of Origin : United States
- Dimensions : 14.843 in (377.012 mm) x 6.62 in (168.15 mm) x 5.106 in (129.692 mm) (Height x Width x Depth)
- Weight : 8.8 lb
- Certification : EU RoHS, UL listed file E2875
