Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH361NSSGL

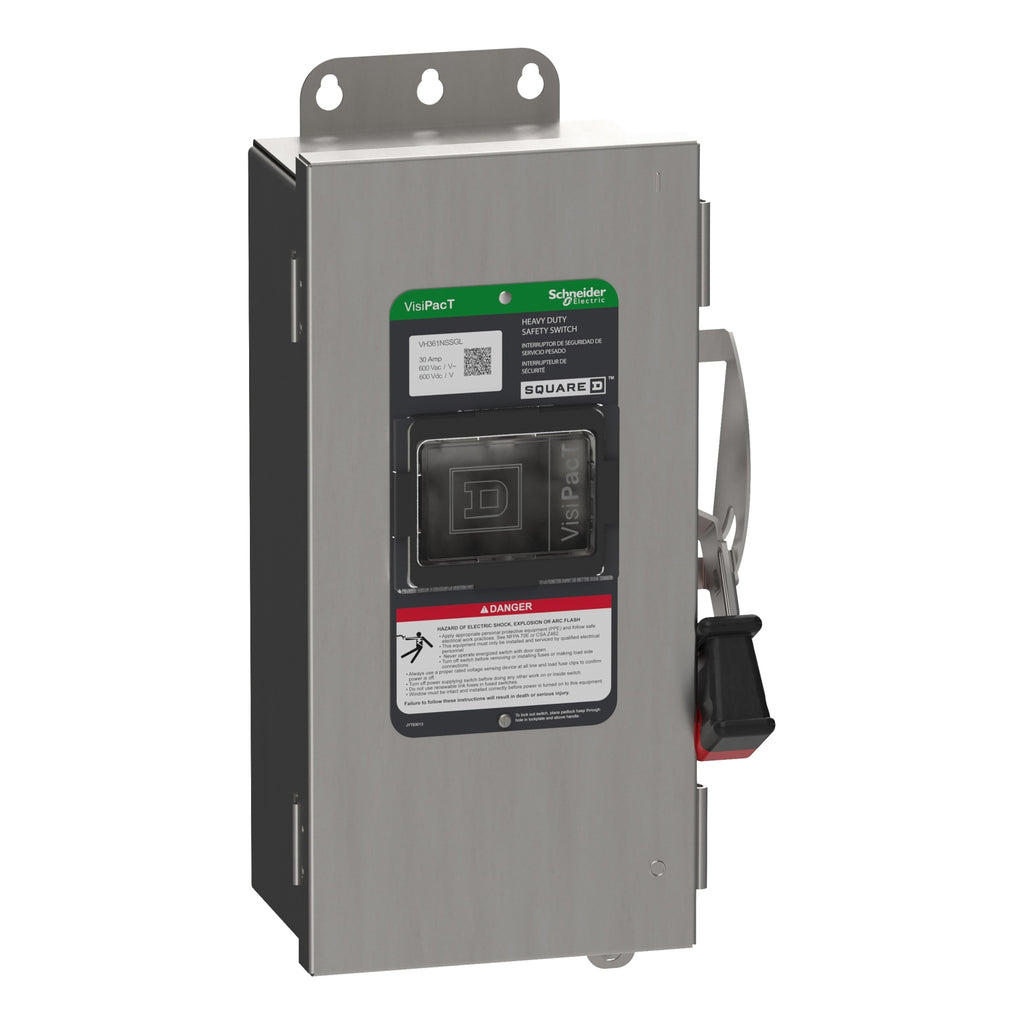

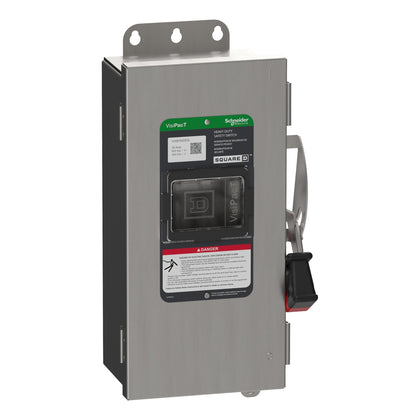

VH361NSSGL is a Square D heavy duty non-fusible safety switch rated for 30 amps and 600 volts AC/DC with 3 poles and a stainless steel NEMA 4X enclosure.VH361NSSGL features a 3-pole, 3-wire configuration designed for surface mounting. It is constructed with 304 stainless steel for durability and corrosion resistance, suitable for indoor and outdoor applications. The switch is UL listed and meets heavy duty service requirements with lug-type terminals and a viewing window for safe operation.
- Key Specifications
- Amperage: 30 A
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Heavy Duty
- Enclosure: 304 Stainless Steel, NEMA 4X
- Terminal Type: Lug
- Series/Frame: F
- Trip Unit: Non-Fusible
- Certifications: UL Listed, RoHS Compliant
- Phase: 3
- Number of Wires: 3
Specifications
- Part Number: VH361NSSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589380
- GTIN : 03606485893808
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.2 lb
- Certification : UL listed file E2967
