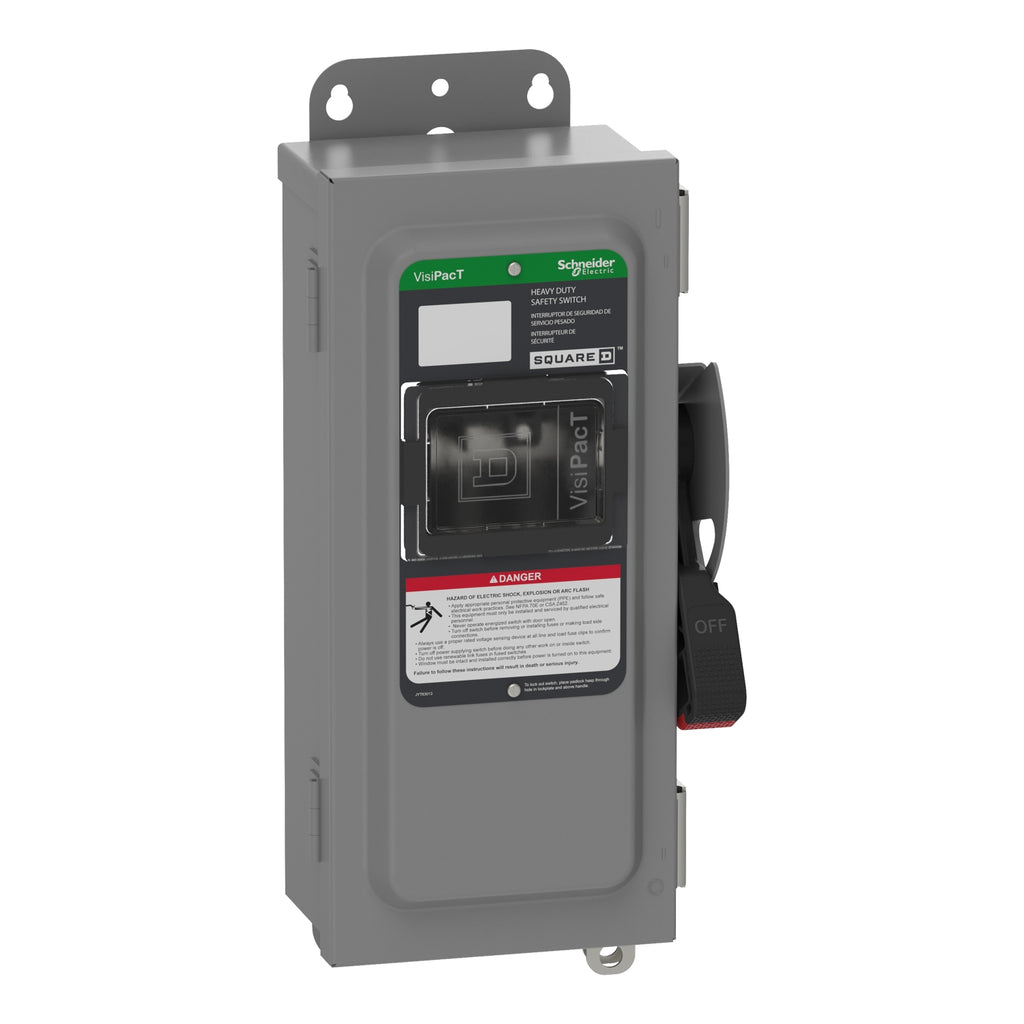

VH361NAWKGL - Square D Heavy Duty Safety Switch 600V 30A 3 Pole Non-Fusible Type 12

VH361NAWKGL

VH361NAWKGL is a Square D heavy duty non-fusible safety switch designed for demanding commercial and industrial applications. This switch provides reliable power isolation and emergency interruption with a robust construction that exceeds standard durability requirements. Engineered for tough environments, the VH361NAWKGL features a quick-make, quick-break operating mechanism, dual cover interlock, and a color-coded indicator handle. It includes a factory-installed viewing window for easy visual confirmation of switch position and comes with equipment ground lugs. The enclosure is galvannealed steel, Type 12 rated, and surface mountable. The switch supports a solid neutral installation in the field and is compatible with a range of wire sizes for both aluminum and copper conductors.

• 30 A amperage rating
• 600 V AC and 600 V DC voltage rating
• 3 poles
• Non-fusible design
• Type 12 enclosure
• Surface mount
• Galvannealed steel enclosure
• Factory-installed viewing window
• Equipment ground lugs included
• Wire range: AWG 12–6 aluminum, AWG 14–6 copper
• UL Listed (File E2875)
• Complies with UL98 and NEMA KS1 standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH361NAWKGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12

Product Data

• UPC : 060648589378
• GTIN : 03606485893785
• Country of Origin : United States
• Dimensions : 14.57 in (370.08 mm) x 6.48 in (164.59 mm) x 5.195 in (131.953 mm) (Height x Width x Depth)
• Weight : 11.02 lb
• Certification : UL listed file E2964
