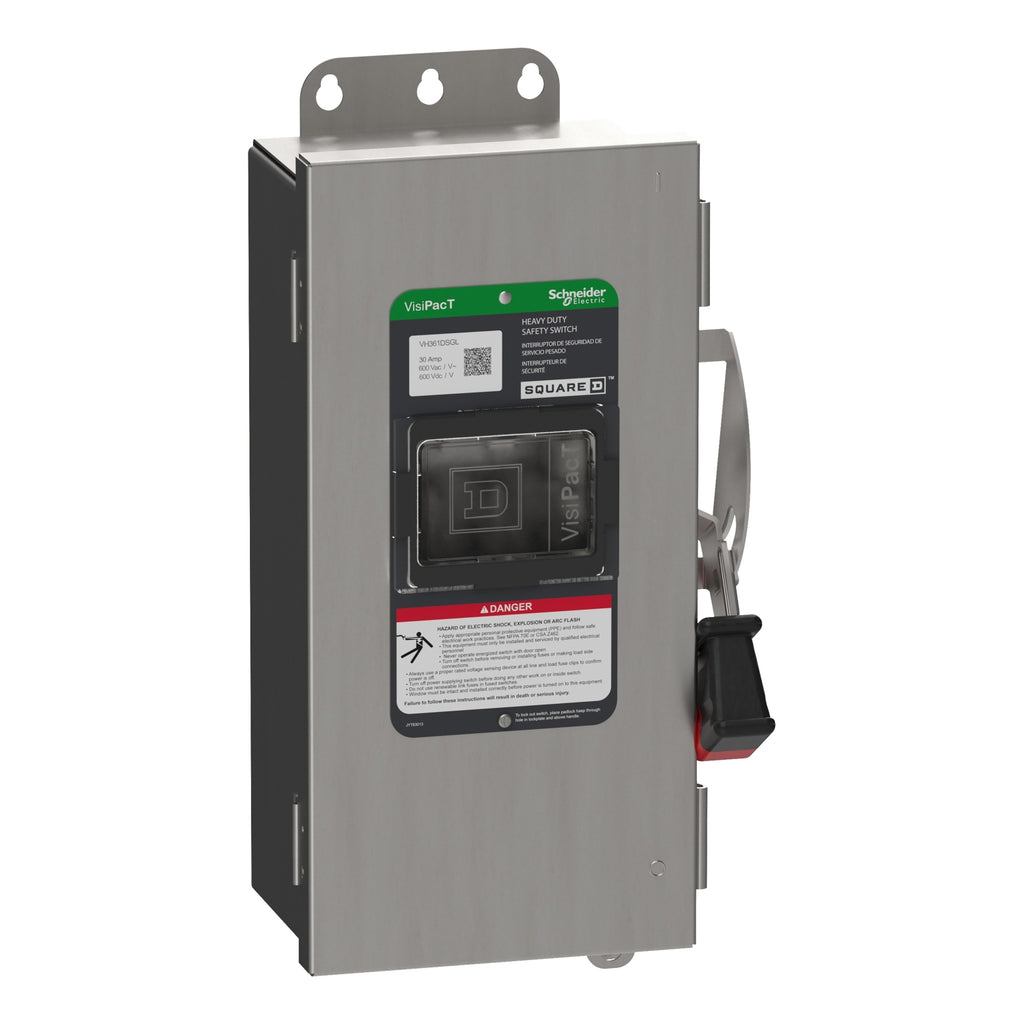

VH361DSGL - Square D 30A 600V 3-Pole Fusible Heavy Duty Safety Switch Type 4X 304SS

VH361DSGL

VH361DSGL is a Square D heavy duty fusible safety switch rated for 30 Amps and 600 Volts AC/DC with 3 poles and Type 4X stainless steel enclosure.This safety switch features a 3-pole, 30 Amp current rating with a voltage rating of 600VAC/VDC. It includes a fusible disconnect with a viewing window, dual cover interlock, and is constructed with 304 stainless steel for durability. The unit is surface mounted and designed for heavy duty indoor and service entrance applications. It meets UL certification standards and has a short circuit interrupt rating of 10 kA. The switch supports lug-type terminal connections and is compliant with EU RoHS standards.

Key Specifications
• Manufacturer: Square D
• Part Number: VH361DSGL
• Amperage: 30 Amps
• Voltage: 600 VAC/VDC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 10 kA
• Series/Frame: F
• Trip Unit: Fusible
• Enclosure Material: 304 Stainless Steel
• NEMA Rating: 4X
• Certifications: UL, EU RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH361DSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600 AC/DC
• Amperage : 30
• Phase : 3
• Poles : 3
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589390
• GTIN : 03606485893907
• Country of Origin : United States
• Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
• Weight : 13.799 lb
• Certification : EU RoHS, UL listed file E2875
