Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH361BGL

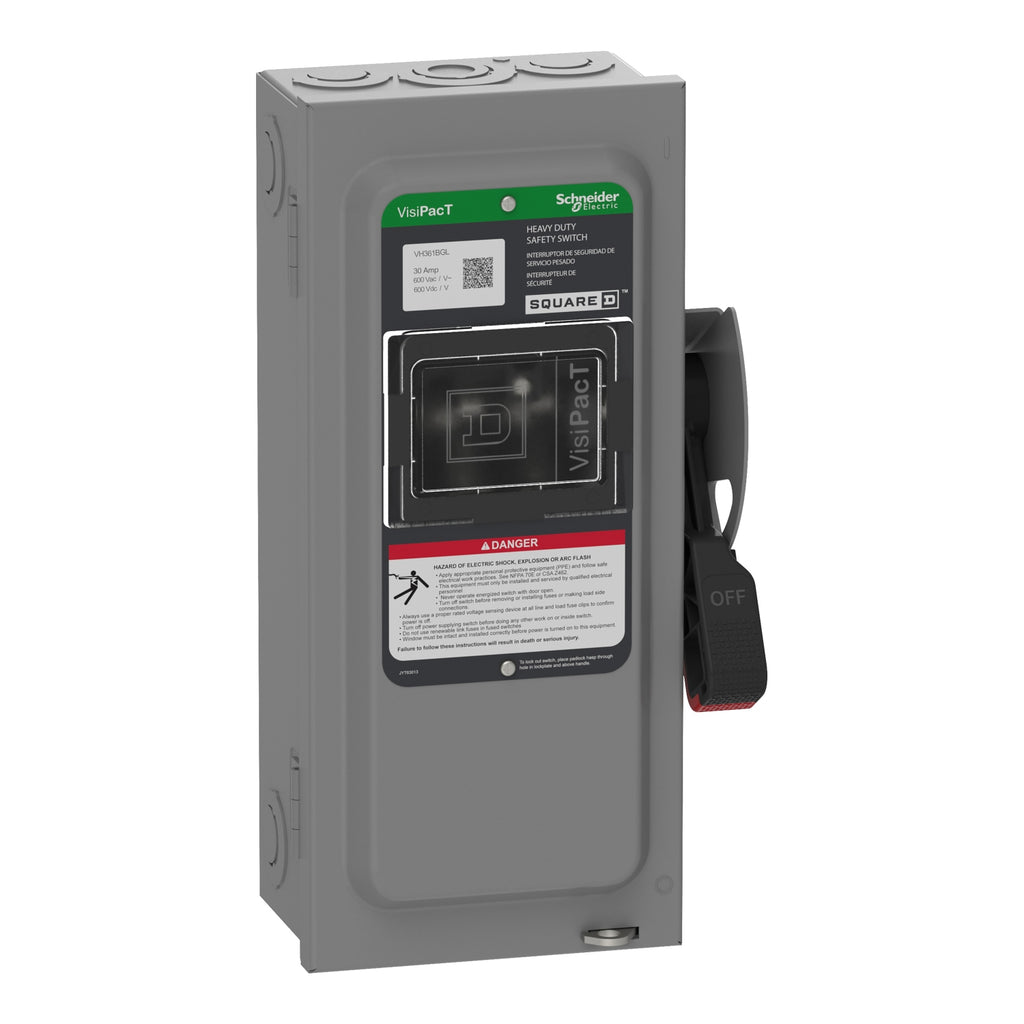

VH361BGL is a Square D VH series heavy-duty fusible safety switch designed for reliable circuit protection and easy maintenance. This 3-pole, 30A, 600V fusible safety switch features a NEMA 1 enclosure, viewing window, neutral bonded, and ground lugs for secure installation. The VH361BGL is ideal for industrial and commercial applications requiring a fused disconnect with clear status visibility.
- Part Number: VH361BGL
- Manufacturer: Square D
- Series/Frame: VH
- Amperage: 30A
- Voltage: 600V
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 100kA
- Enclosure: NEMA 1
- Switch Style: Fusible
- Neutral Bonded: Yes
- Ground Lugs: Yes
Specifications
- Part Number: VH361BGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589381
- GTIN : 03606485893815
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
- Weight : 8.801 lb
- Certification : UL listed file E2959
