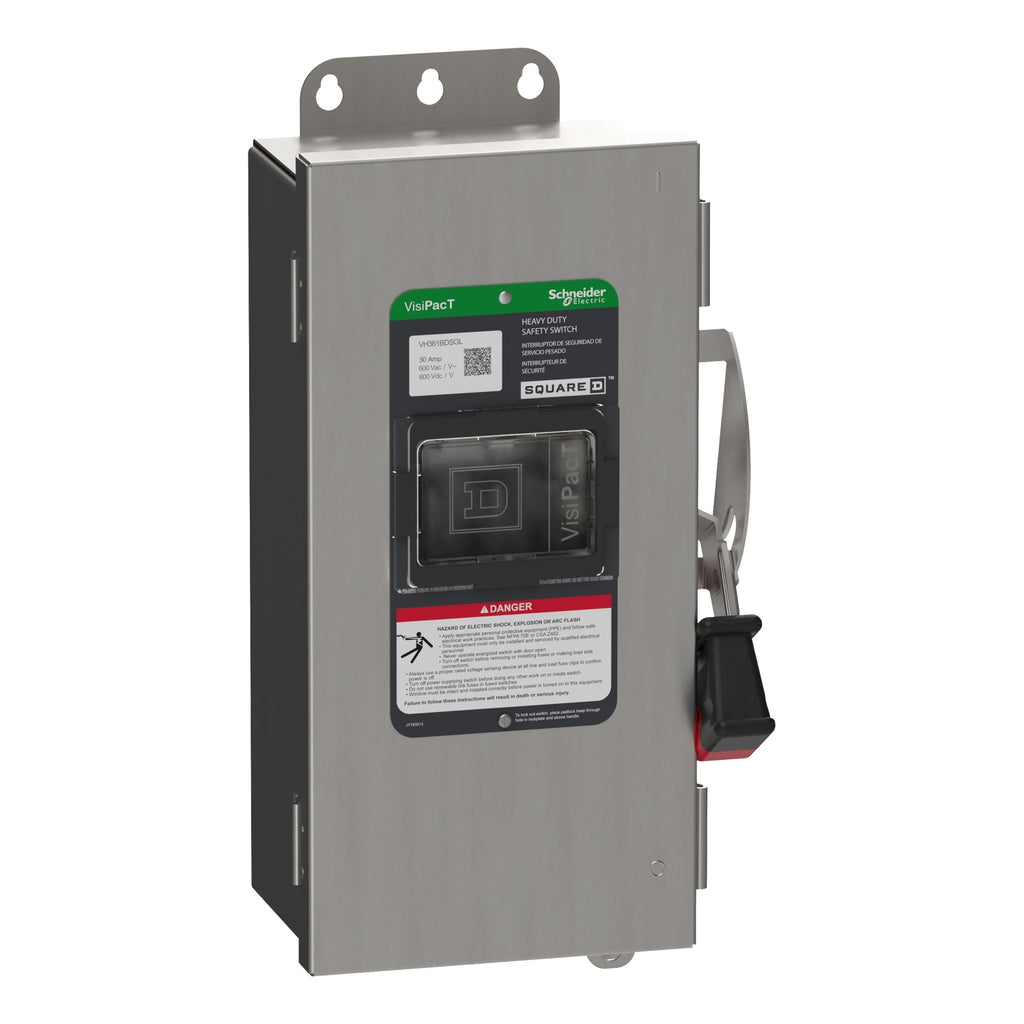

VH361BDSGL - Square D 30A 600V 3 Pole Heavy Duty Non-Fusible Safety Switch NEMA 4X Stainless Steel

VH361BDSGL

VH361BDSGL is a heavy duty non-fusible safety switch designed for reliable circuit protection in demanding environments. This Square D switch features a robust 304 stainless steel enclosure and is suitable for both indoor and outdoor applications. The VH361BDSGL safety switch is rated for 30 amps and 600 volts AC/DC, with three poles and a single throw contact configuration. It is designed for surface mounting and includes lug terminals for secure wire connections. The switch is non-fusible and features a viewing window for easy status monitoring. Its NEMA 4X enclosure provides protection against harsh conditions, making it ideal for heavy duty service entrance and industrial applications.

• 30 Amp current rating
• 600V AC/DC voltage rating
• 3 Pole configuration
• Single throw contact form
• Surface mounting type
• Lug terminal connections
• NEMA 4X enclosure rating
• 304 stainless steel enclosure material
• Non-fusible design
• Viewing window for status monitoring
• Heavy duty service entrance use
• UL listed
• RoHS compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH361BDSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• Fuse Class : J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589384
• GTIN : 03606485893846
• Country of Origin : United States
• Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
• Weight : 13.2 lb
• Certification : UL listed file E2958
