Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH361AWKGL

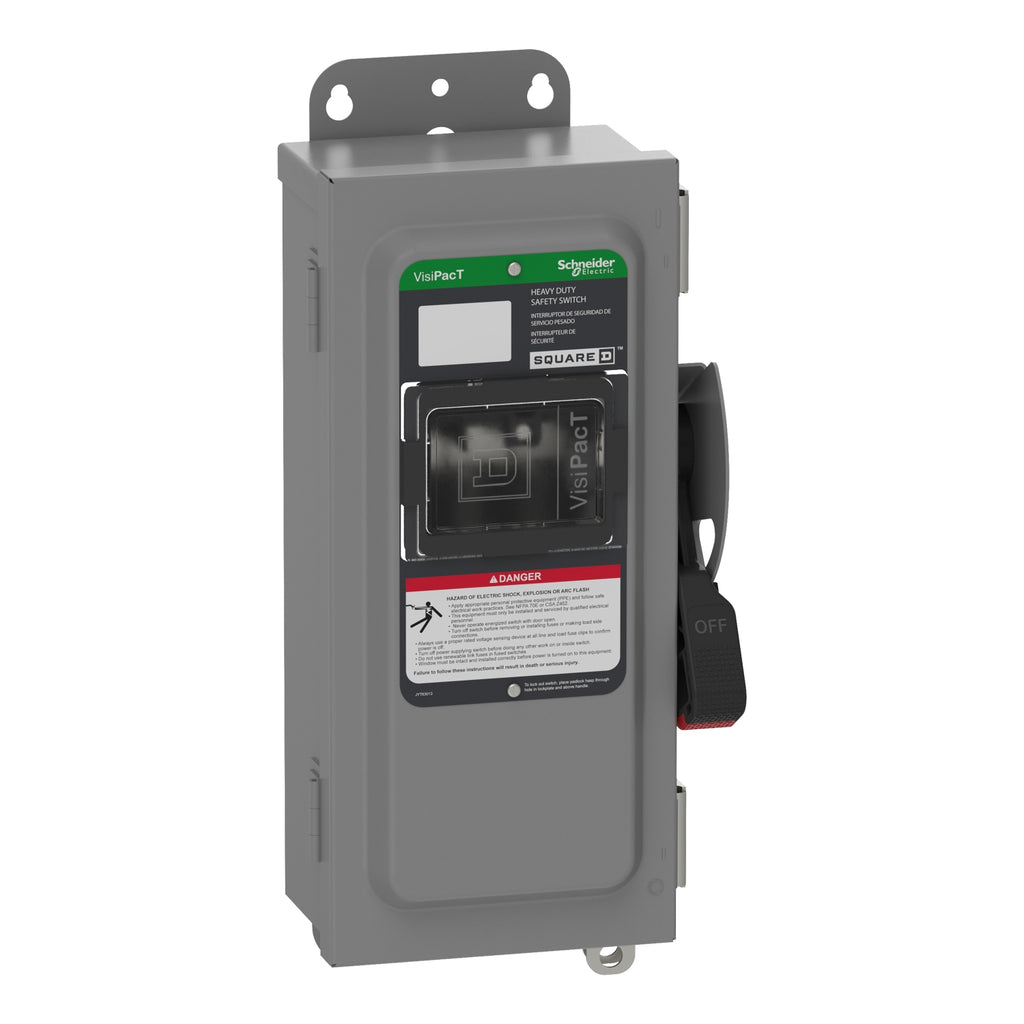

VH361AWKGL is a Square D heavy duty fused safety switch rated for 30 amps and 600 volts AC/DC with 3 poles and Type 12 enclosure.This safety switch features a fusible design with a viewing window, dual cover interlock, and ground lugs. It is suitable for heavy duty industrial applications requiring reliable disconnect and protection. The switch is rated for 600V AC/DC and 30A continuous current with a 3-pole configuration, providing safe and efficient power isolation.
- Key Specifications
- Manufacturer: Square D
- Part Number: VH361AWKGL
- Amperage: 30 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Type: Heavy Duty Fused Safety Switch
- Enclosure: Type 12
- Features: Viewing Window, Dual Cover Interlock
- Grounding: Ground Lugs Included
- Interrupt Rating: Not specified
- Certifications: ARRA Compliant
Specifications
- Part Number: VH361AWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600 AC/DC
- Amperage : 30
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589389
- GTIN : 03606485893891
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.48 in (164.59 mm) x 5.195 in (131.953 mm) (Height x Width x Depth)
- Weight : 11.02 lb
- Certification : EU RoHS, UL listed file E2875
