VH361 - Square D 3 Pole 30A 600V Heavy Duty Fusible Safety Switch, Surface/Panel Mount, NEMA 1, Dual Cover Interlock, 10kA Interrupt, Series F, UL Listed

VH361

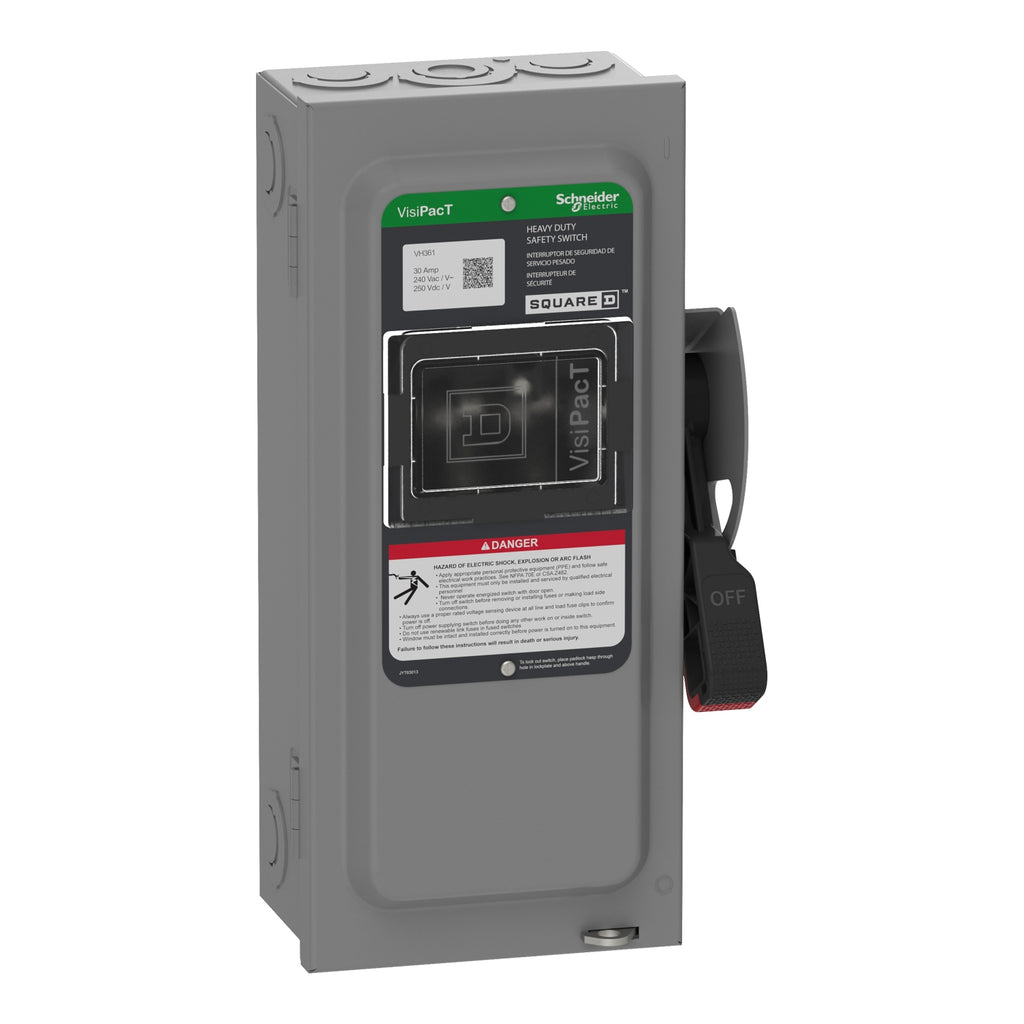

VH361 is a heavy duty, fusible safety switch from Square D, designed for reliable power distribution in demanding environments.

This 3-pole, 30A safety switch features a 600VAC/VDC rating, surface or panel mounting, and a robust galvanized steel enclosure. It includes a viewing window for fuse status, dual cover interlock for enhanced safety, and is suitable for service entrance, heavy, and indoor applications. The VH361 is part of the Square D Series F and is certified for use in North America.

Key Specifications

• Amperage: 30A
• Voltage: 600VAC/VDC
• Poles: 3
• Mounting Type: Surface, Panel
• Interrupt Rating: 10kA
• Series/Frame: F
• Trip Unit: Not applicable (manual operation)
• Certifications: UL Listed, RoHS, EU standards
• Enclosure: Galvanized steel, NEMA 1
• Fusibility: Fusible (accepts H, J, K, R fuses)
• Terminal Connection: Lugs (AWG 12–6 copper/aluminum)
• Dimensions: 14.57" H x 6.36" W x 5.11" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH361
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600 AC/DC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : H, K, R, J
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589385
• GTIN : 03606485893853
• Country of Origin : United States
• Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
• Weight : 8.8 lb
• Certification : EU RoHS, UL listed file E2875
