VH324NDSGL - Schneider Electric Heavy Duty Fusible Disconnect 200A 240VAC 3-Pole NEMA 4X

VH324NDSGL

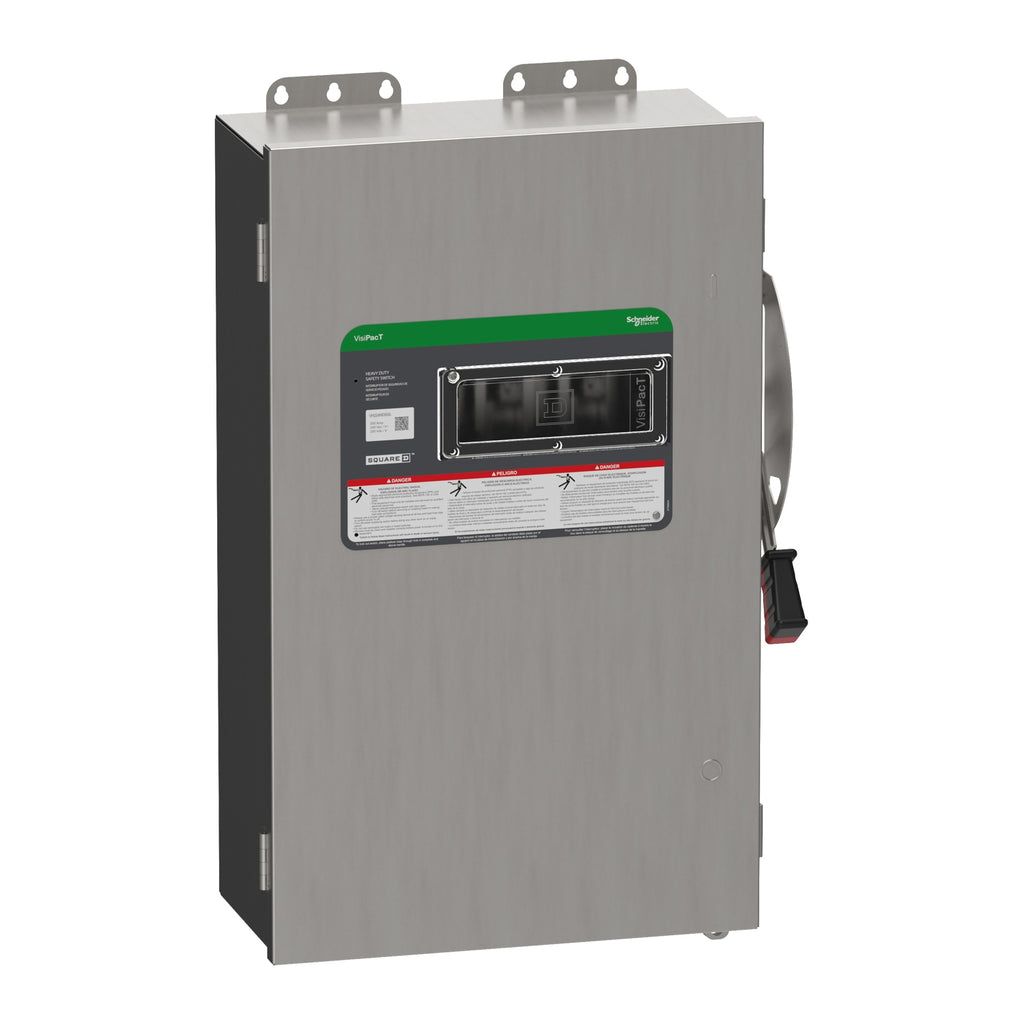

VH324NDSGL is a heavy duty fusible disconnect safety switch designed for industrial power distribution and service entrance applications. This Schneider Electric (Square D) model combines robust construction with reliable fuse protection for demanding electrical environments. The unit features a VisiPacT design with a viewing window that allows visual confirmation of switch state without opening the enclosure door, enhancing operational safety and convenience. Built with 304 stainless steel construction and NEMA 4X rating, this switch provides superior corrosion resistance and environmental protection suitable for indoor and outdoor installations. The handle actuator provides smooth, reliable operation with clear on-off positioning. Key Specifications

• Amperage Rating: 200 A
• Voltage: 240 VAC, 250 VDC
• Number of Poles: 3
• Enclosure Type: NEMA 4X
• Short Circuit Current Rating: 10 kA, 200 kA
• Horsepower: 15, 25, 40, 60 hp
• Frequency Rating: 50 to 60 Hz
• Mounting Type: Surface
• Terminal Type: Lug
• Material: 304 Stainless Steel
• Actuator Type: Handle
• Dimensions: 19.75 in H x 17.474 in W x 8.937 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH324NDSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589369
• GTIN : 03606485893693
• Country of Origin : United States
• Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
• Weight : 57.1 lb
• Certification : UL listed file E2952
