VH324NAWKGL - Square D 200A 240V 3-Pole Heavy Duty Fusible Safety Switch NEMA 12

VH324NAWKGL

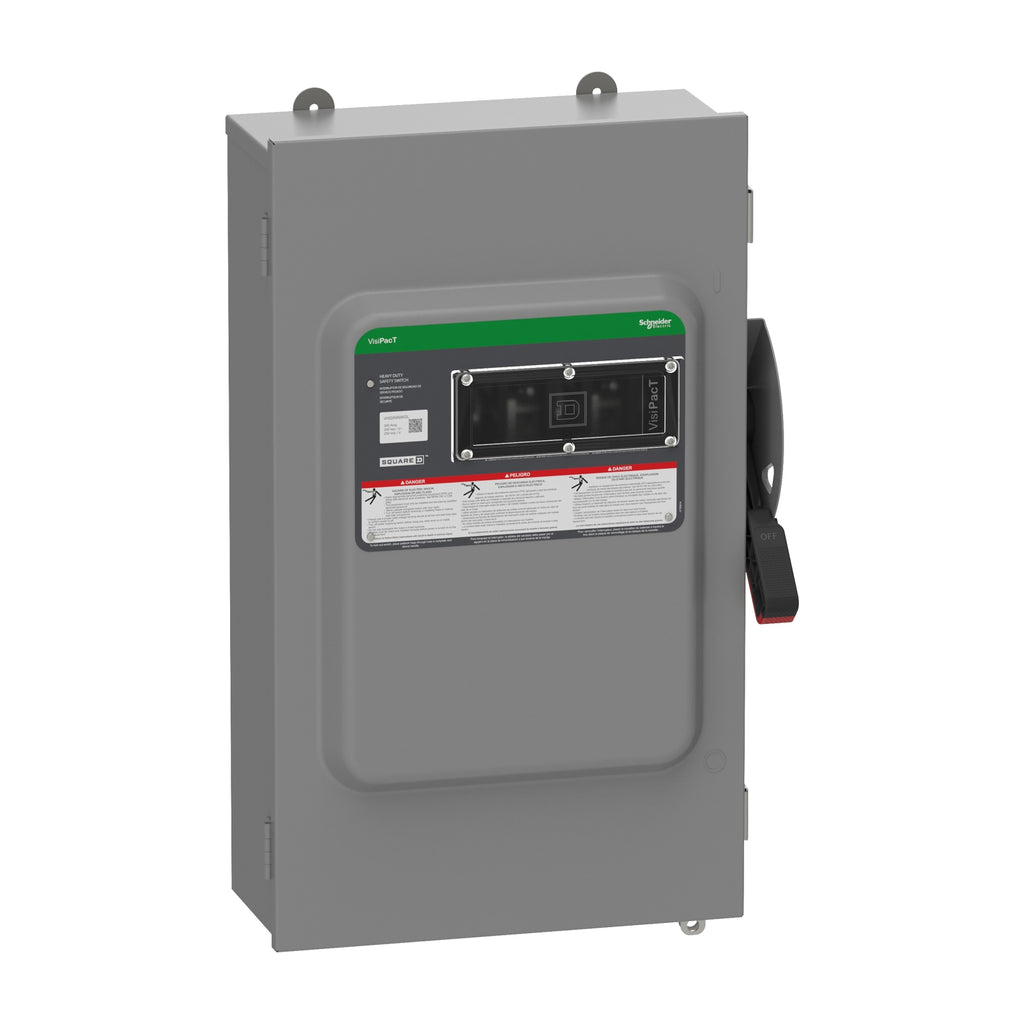

VH324NAWKGL is a Square D heavy duty fusible safety switch rated for 200 amps, 240 volts, and 3 poles with NEMA 12 enclosure.This safety switch features a fusible design with a viewing window for visual confirmation of switch position while the door is closed. It supports 240 VAC and 250 VDC operation, includes a neutral assembly and ground lugs, and is suitable for service entrance applications. The enclosure is surface mounted and constructed of galvanized steel, providing indoor protection with a NEMA 12 rating. It is compatible with Class H and Class K fuses and has a quick make/break operating mechanism.

Key Specifications
• Amperage: 200 A
• Voltage: 240 VAC / 250 VDC
• Poles: 3
• Mounting Type: Surface mount
• Interrupt Rating: Fusible, Class H and Class K fuses compatible
• Enclosure Type: NEMA 12, galvanized steel
• Trip Unit: Fusible disconnect
• Viewing Window: Yes
• Neutral Installed: Yes
• Ground Lugs: Included
• Series/Frame: VisiPacT Heavy Duty
• Certifications: Suitable for service entrance

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH324NAWKGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12

Product Data

• UPC : 060648589368
• GTIN : 03606485893686
• Country of Origin : United States
• Dimensions : 28.93 in (734.82 mm) x 17.01 in (432.05 mm) x 9.02 in (229.11 mm) (Height x Width x Depth)
• Weight : 55.1 lb
• Certification : UL listed file E2951
