VH324N - Square D 3 Pole 200 Amp 240VAC Heavy Duty Fusible Safety Switch with Dual Cover Interlock, Type 1

VH324N

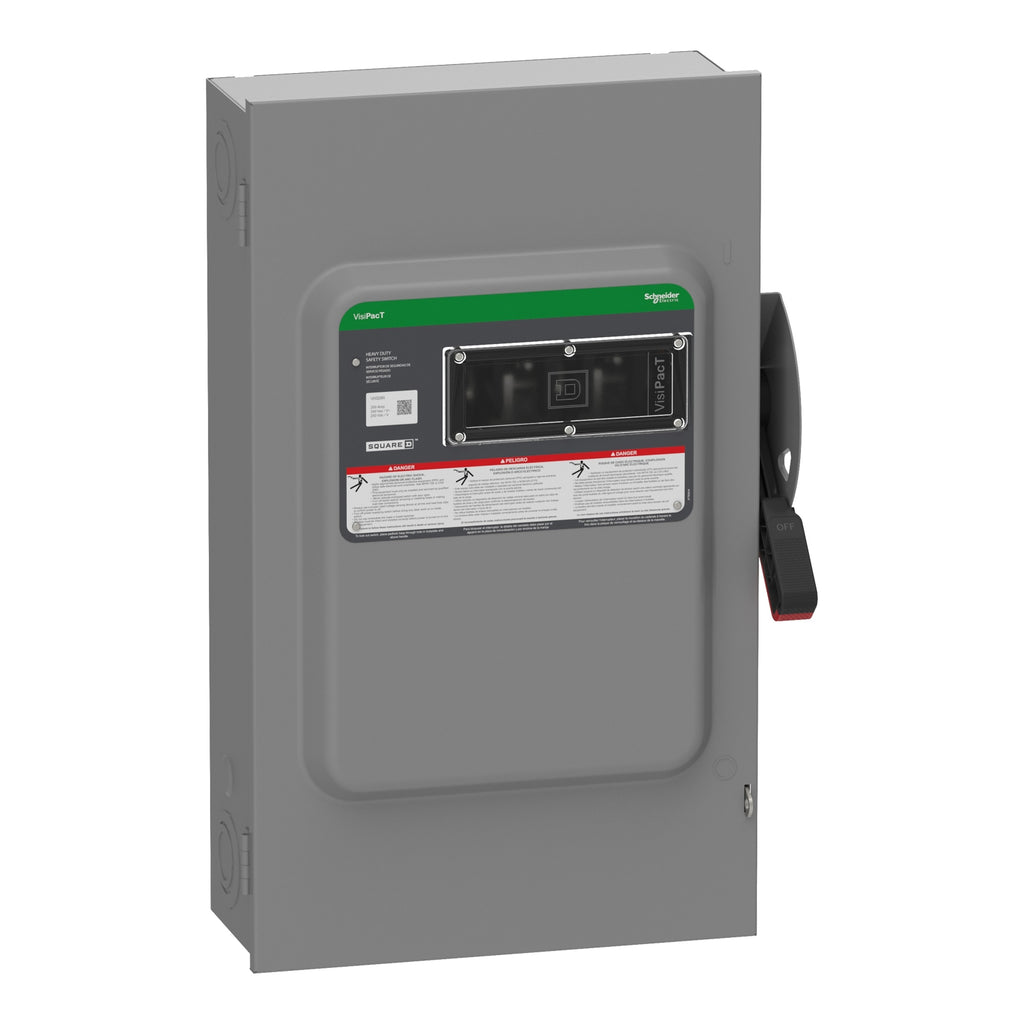

VH324N is a Square D heavy duty, fusible safety switch designed for reliable power distribution and safety.

This 3-pole safety switch features a 200 Amp current rating, 240VAC/250VDC voltage rating, and includes a viewing window for easy fuse inspection. It is a Type 1 enclosure, suitable for indoor use, and comes with a neutral installed. The switch is equipped with a dual cover interlock for enhanced safety during operation and maintenance.

Key Specifications

• Manufacturer: Square D
• Part Number: VH324N
• Amperage: 200A
• Voltage: 240VAC, 250VDC
• Poles: 3
• Mounting Type: Not specified in available data
• Interrupt Rating: Not specified in available data
• Series/Frame: Heavy Duty
• Trip Unit: Not specified in available data
• Certifications: Not specified in available data
• Enclosure Type: Type 1
• Features: Fusible, viewing window, dual cover interlock, neutral installed
• Dimensions: 28.93" H x 8.6" D (approximate)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH324N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240 AC
• Amperage : 200
• Phase : 3
• Poles : 3
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589366
• GTIN : 03606485893662
• Country of Origin : United States
• Dimensions : 28.93 in (734.82 mm) x 16.61 in (421.89 mm) x 8.6 in (218.4 mm) (Height x Width x Depth)
• Weight : 54.501 lb
• Certification : EU RoHS, UL listed file E2875
