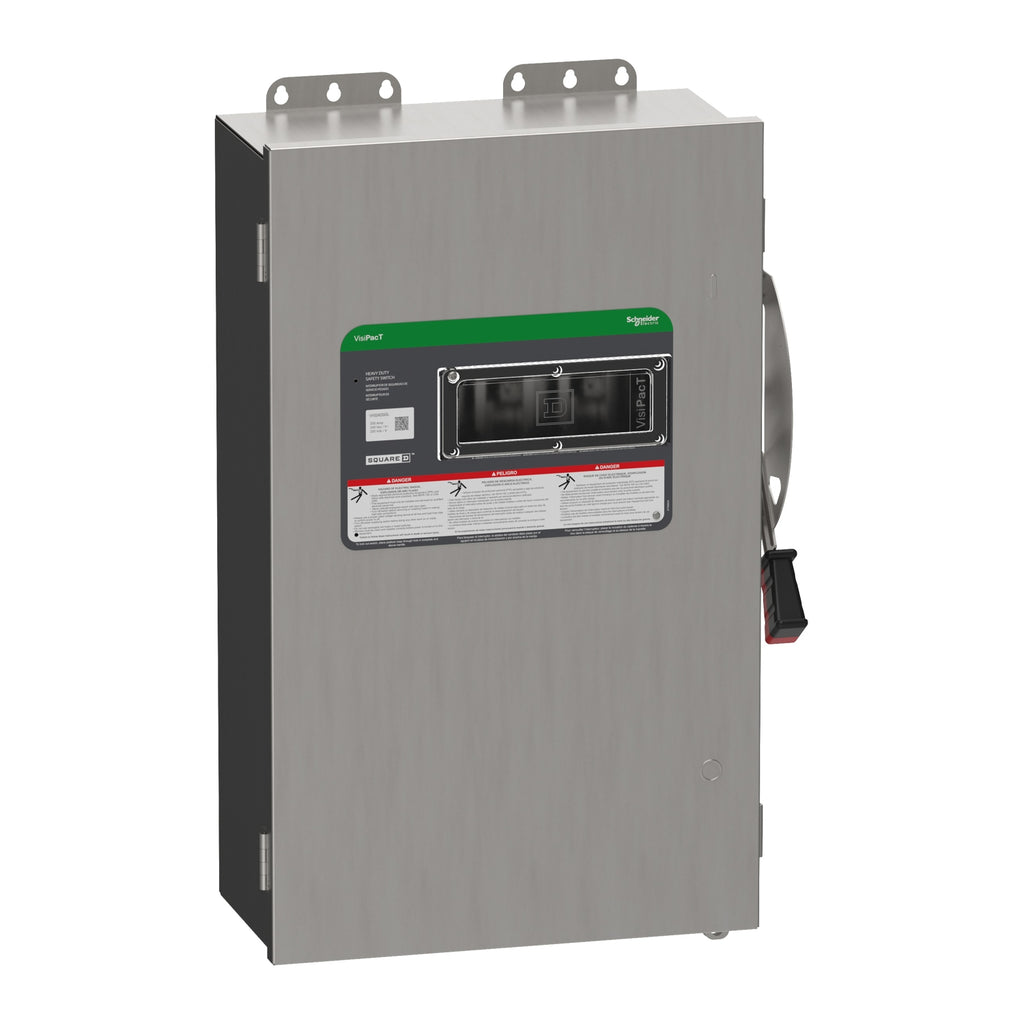

VH324DSGL - Square D 3 Pole 200A 240V Fusible Safety Switch NEMA 4X with Viewing Window

VH324DSGL

VH324DSGL is a heavy-duty fusible safety switch designed for reliable power isolation in demanding applications. This Square D VisiPacT switch features a 3-pole, 200A, 240VAC/250VDC rating and includes a viewing window for quick visual verification of switch position. It is constructed with a NEMA 4X enclosure for superior protection in harsh environments and offers dual cover interlock for added safety. Engineered for durability, the VH324DSGL provides mechanical endurance three times greater than NEMA standards. It is suitable for use in industrial, commercial, and utility settings where robust disconnect capability is required. The switch is equipped with ground lugs and is designed for easy installation and maintenance.

• Part Number: VH324DSGL
• Manufacturer: Square D
• Amperage: 200A
• Voltage: 240VAC, 250VDC
• Poles: 3
• Mounting Type: Surface Mount
• Interrupt Rating: 100kA
• Series/Frame: VisiPacT, Frame H
• Enclosure: NEMA 4X
• Features: Fusible, Viewing Window, Dual Cover Interlock
• Standards: UL Listed, CSA Certified
• Dimensions: 19.75" H x 17.474" W x 8.937" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH324DSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589375
• GTIN : 03606485893754
• Country of Origin : United States
• Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
• Weight : 57.1 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL listed file E2949
