Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH324BRGL

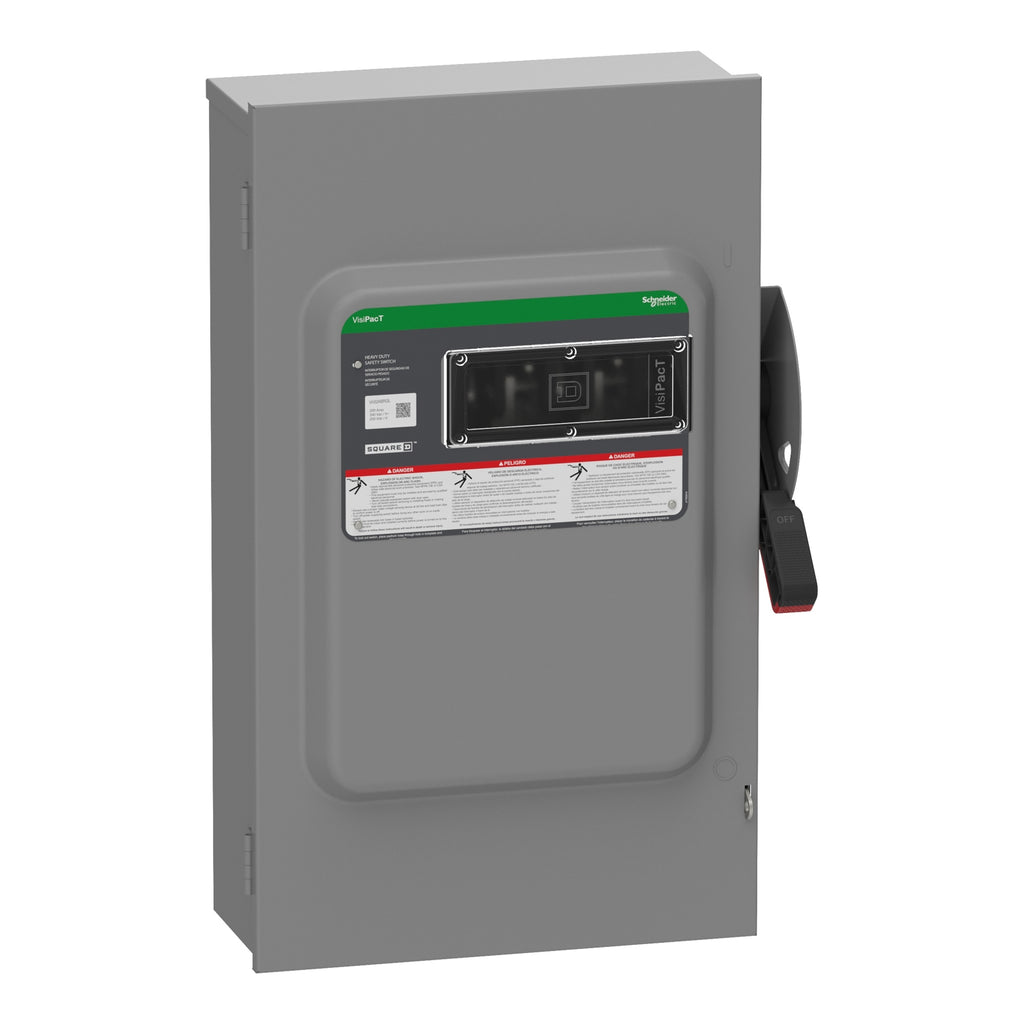

VH324BRGL is a heavy duty fusible safety switch from Square D designed for reliable disconnect and overcurrent protection in industrial and commercial applications. This VisiPacT model features a viewing window for visual confirmation of switch state with the door closed, making it ideal for service entrance installations when equipped with neutral assembly or equipment grounding kit. The switch accommodates wire gauges from AWG 6 to 250 kcmil in copper or aluminum, with lugs for secure electrical connection.
- Amperage Rating: 200 Amp
- Voltage: 240 VAC / 250 VDC
- Poles: Three Pole
- Enclosure Type: NEMA 3R
- Fuse Class: J
- Switch Style: Fusible
- Wiring Configuration: 3-wire (2P + N)
- Electrical Connection: Lugs
- Wire Gauge: AWG 6 to 250 kcmil
- Height: 28.93 inches
- Depth: 3.09 inches
- Country of Origin: United States
Specifications
- Part Number: VH324BRGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589371
- GTIN : 03606485893716
- Country of Origin : United States
- Dimensions : 28.94 in (735.08 mm) x 17.016 in (432.206 mm) x 8.506 in (216.052 mm) (Height x Width x Depth)
- Weight : 54.5 lb
- Certification : UL listed file E2948
