Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH324BDSGL

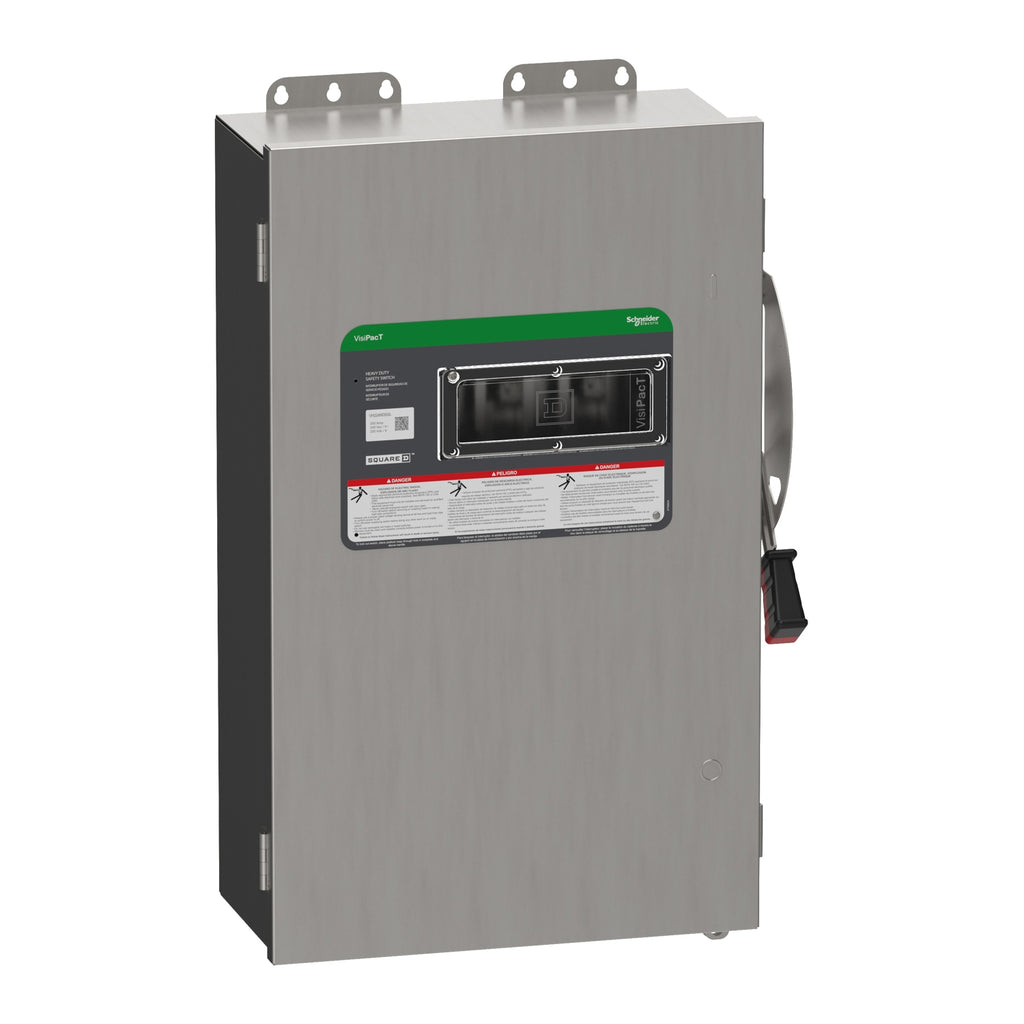

VH324BDSGL is a Square D heavy duty fusible safety switch rated for 200 amps and 240VAC with 3 poles and NEMA 4X enclosure.VH324BDSGL features a 3-pole fusible disconnect design with a 200 amp rating, suitable for 240VAC and 250VDC applications. It includes a NEMA 4X stainless steel enclosure for durability and corrosion resistance, surface mounting type, and lug-type terminals. The switch supports 50 to 60 Hz frequency and has a short circuit current rating of up to 200 kA. It is designed for industrial and commercial electrical systems requiring reliable disconnect and protection.
- Key Specifications
- Amperage: 200 A
- Voltage: 240 VAC, 250 VDC
- Poles: 3
- Mounting Type: Surface Mount
- Interrupt Rating: 10, 200 kA
- Enclosure: NEMA 4X, 304 Stainless Steel
- Frequency: 50 to 60 Hz
- Terminal Type: Lug
- Fuse Class: J
- Switch Style: Fusible
- Country of Origin: United States
Specifications
- Part Number: VH324BDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589373
- GTIN : 03606485893730
- Country of Origin : United States
- Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
- Weight : 57.1 lb
- Certification : UL listed file E2946
