2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH324BAWKGL

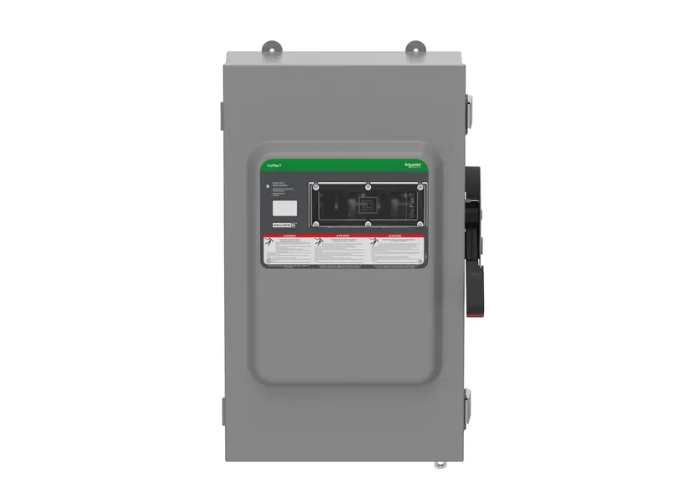

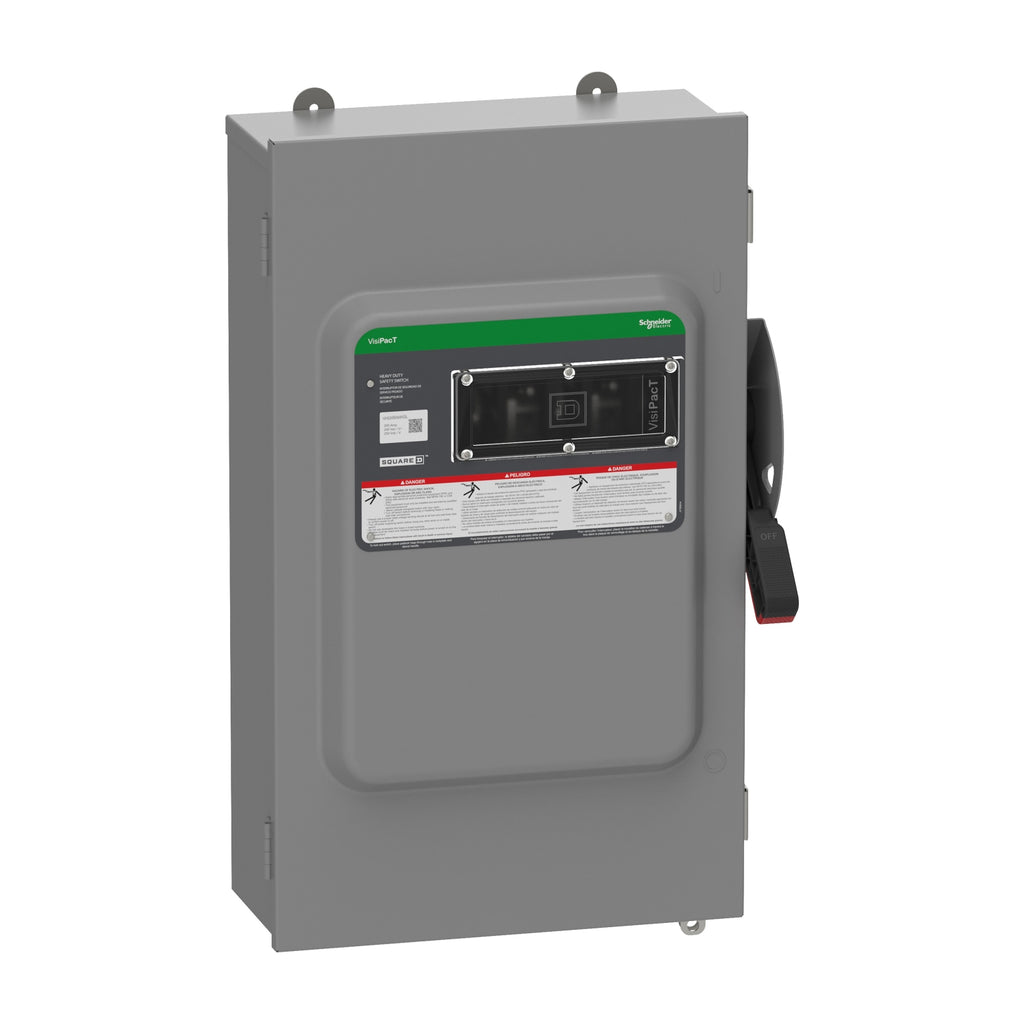

VH324BAWKGL is a Square D heavy duty safety switch designed for 200 amp, 3-pole applications with a NEMA 12 enclosure rating.This fusible safety switch features a viewing window for fuse status inspection, supports 240V AC and 250V DC operation, and includes neutral bonded and ground lugs for secure wiring. It is built to meet UL safety standards and is suitable for industrial environments requiring robust circuit protection.
- Amperage: 200 Amp
- Voltage: 240 VAC / 250 VDC
- Poles: 3-Pole
- Mounting Type: Surface Mount
- Interrupt Rating: Heavy Duty
- Enclosure: NEMA 12
- Fusible with Viewing Window
- Neutral Bonded
- Ground Lugs Included
- Series/Frame: VisiPacT
- Certifications: UL Listed
Specifications
- Part Number: VH324BAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589372
- GTIN : 03606485893723
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 17.01 in (432.05 mm) x 9.02 in (229.11 mm) (Height x Width x Depth)
- Weight : 55.1 lb
- Certification : UL listed file E2945
