Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH323NRB

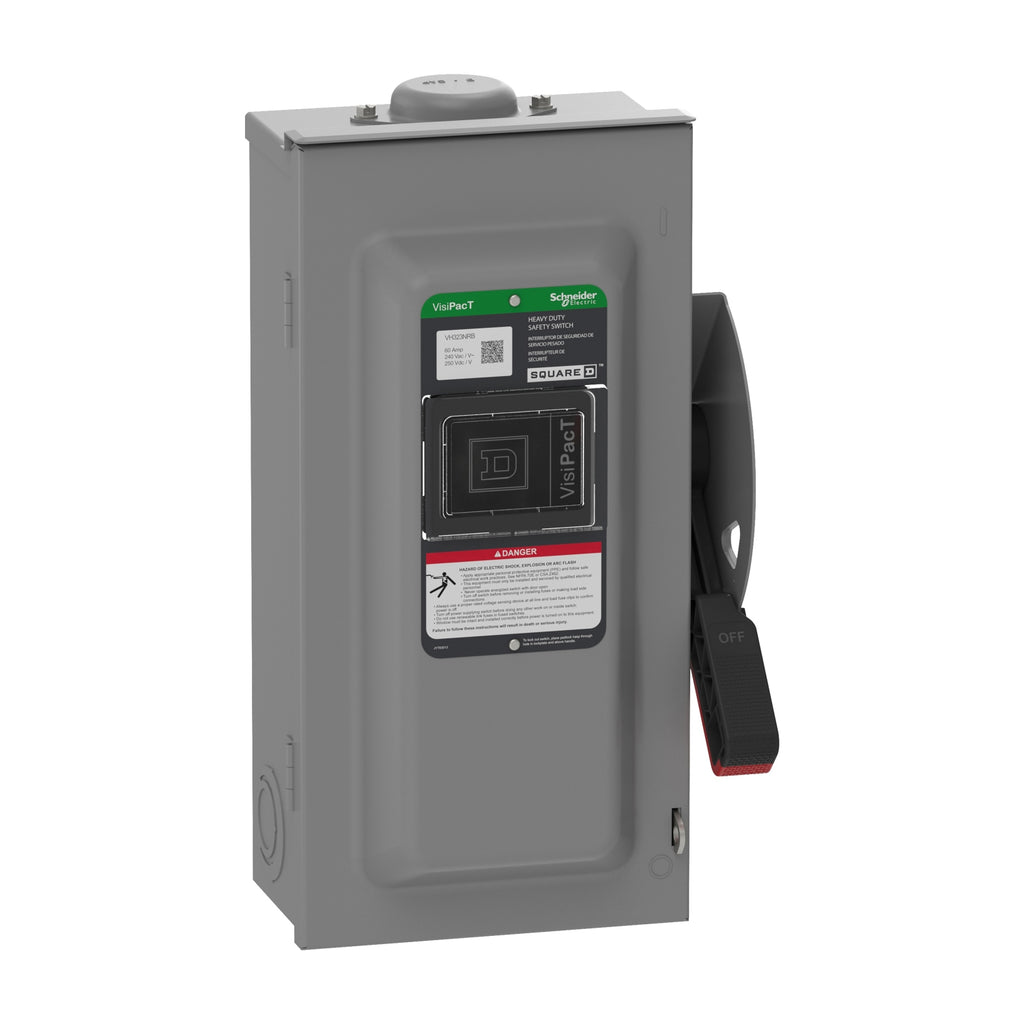

VH323NRB is a Square D heavy duty fused safety switch rated for 100 amps and 240 volts with 3 poles and a Type 3R enclosure.This three-blade fusible safety switch features a viewing window for fuse status inspection and is suitable for both 240 VAC and 250 VDC applications. It includes a neutral and is designed for heavy duty industrial use with a robust Type 3R weather-resistant enclosure. The switch provides reliable disconnect and short circuit protection with a high interrupt rating.
- Amperage: 100A
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: High short circuit rating
- Series/Frame: Heavy Duty Safety Switch
- Trip Unit: Fusible
- Enclosure Type: Type 3R (weather resistant)
- Viewing Window: Yes
- Neutral: Included
- Certifications: ARRA Compliant
Specifications
- Part Number: VH323NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589357
- GTIN : 03606485893570
- Country of Origin : United States
- Dimensions : 22.103 in (561.416 mm) x 9.08 in (230.63 mm) x 7.019 in (178.283 mm) (Height x Width x Depth)
- Weight : 19.8 lb
- Certification : EU RoHS, UL listed file E2875
