VH323NDSGL - Square D VisiPacT Heavy Duty Safety Switch 100A 240VAC 250VDC 3 Pole NEMA 4X Fused

VH323NDSGL

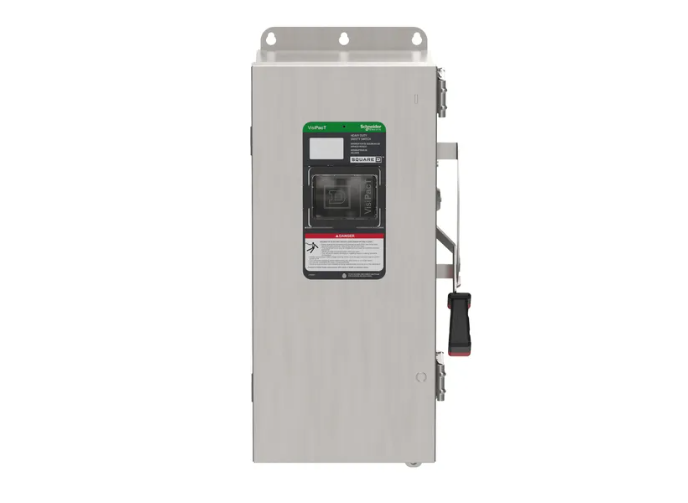

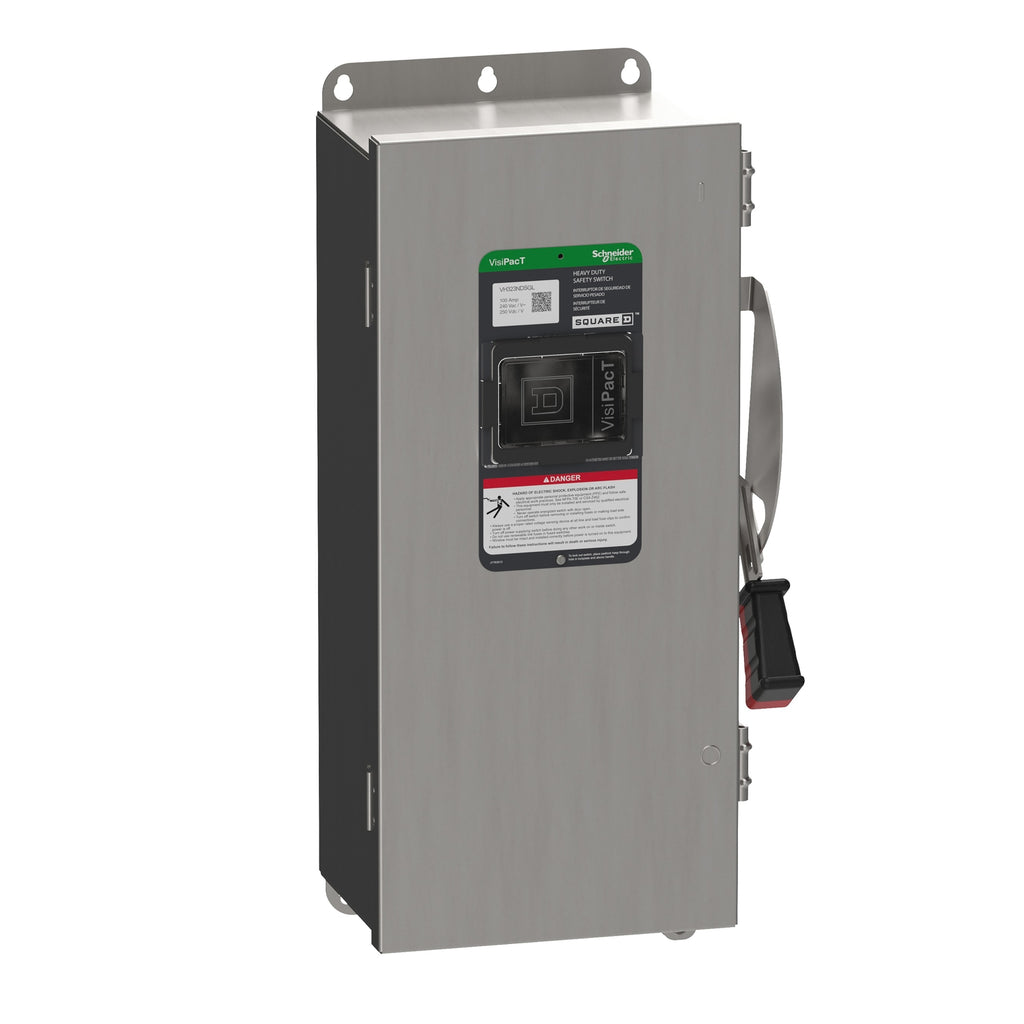

VH323NDSGL is a heavy duty fusible safety switch from Square D, designed for demanding commercial and industrial applications. This switch features a robust stainless steel enclosure, a factory-installed viewing window, and a quick-make, quick-break operating mechanism for reliable performance in harsh environments. The VH323NDSGL is a three-pole, 100A, 240VAC/250VDC safety switch with a neutral installed and ground lugs. It is rated for NEMA 4X and is suitable for service entrance when equipped with a neutral assembly or equipment grounding kit. The switch accepts H, K, R, or J fuse types and is surface mountable. It is tested per UL98 and NEMA KS1 standards and is listed in UL files E2875 and E154828.

• 100A rated current
• 240VAC/250VDC voltage rating
• Three pole configuration
• NEMA 4X rated enclosure
• Stainless steel construction
• Factory-installed viewing window
• Neutral installed
• Ground lugs included
• Accepts H, K, R, J fuse types
• Surface mountable
• UL98 and NEMA KS1 certified
• UL listed files E2875 and E154828

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH323NDSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589359
• GTIN : 03606485893594
• Country of Origin : United States
• Dimensions : 20.73 in (526.54 mm) x 9.336 in (237.134 mm) x 7.2 in (182.9 mm) (Height x Width x Depth)
• Weight : 24.03 lb
• Certification : UL listed file E2942
